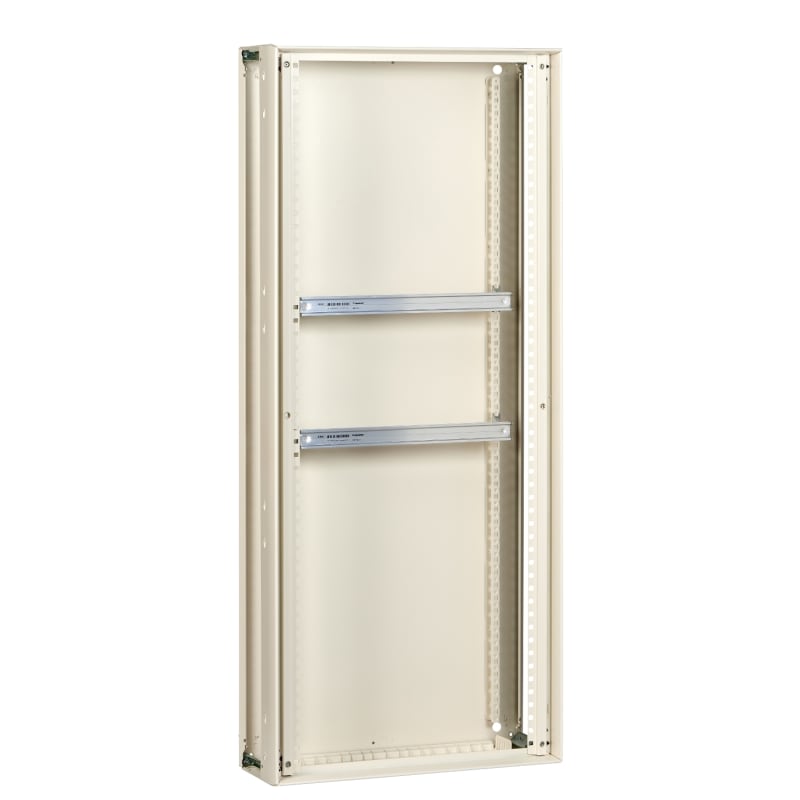

Schneider Electric Wall mounted extension enclosure, PrismaSeT G, W 600mm, H 1380mm (27M), IP30, without side plates LVS08119

Schneider Electric LVS08119 Expansion Panel wall-mount cabinet PrismaSeT G-630A-IP30 24 modules-width 600mm.

Manufacturer part number (MPN)

LVS08119

EAN / GTIN

3606481877024

Sales unit

pcs

IP rating

IP30

Modular width

27 modules

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Enclosure extension

Device application

Low voltage electrical distribution

Enclosure type

Functional enclosure delivered in kit form; Metal enclosure; Indoor enclosure

Enclosure/cubicle description

Wall-mounted enclosure - width 600 mm

Kit composition

uprights; rear plate; top plate; bottom plate

Additional information

Can be combined side by side and one on top of another

type of front plate

Without to be ordered separately

Number of vertical modules [50 mm]

27

Number of 18 mm modules per row

24

Standards

IEC 61439-1; IEC 61439-2; IEC 62208

Product certifications

ASTA; EAC

[Ui] rated insulation voltage

1000 V on main rear busbars conforming to IEC 61439-2

Network frequency

50/60 Hz

[In] rated current

630 A at 40 °C conforming to IEC 61439-2

Short-circuit current

50 kA

[Icw] rated short-time withstand current

25 kA 1 s conforming to IEC 61439-1

[Ipk] rated peak withstand current

53 kA conforming to IEC 61439-1

Electrical insulation class

Class I

Material

Treated sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Textured; Matt

Colour

White (RAL 9003)

Width

600 mm

Height

1380 mm

Depth

205 mm

Product weight

21.34 kg

Quantity per set

Set of 1

IP degree of protection

IP30 with front plate; IP40 with door; IP41 with door and canopy; IP43 with door, canopy and IP43 gasket

IK degree of protection

IK07 with front plate; IK08 with transparent door; IK10 with plain door

Mechanical robustness

Seismic tests - 2.5G conforming to IEC 60068-2-57

Number of Units in Package 1

1

Number of Units in Package 2

8

Country of origin

FR

Warranty (in months)

18

RAL-number

9003

Impact strength

IK07

Degree of protection (IP)

IP30

Suitable for outdoor set-up

No

Connectable

Yes

Wall fastening possible

Yes

Surface finishing

Powder coating

HS Code

9403.20
