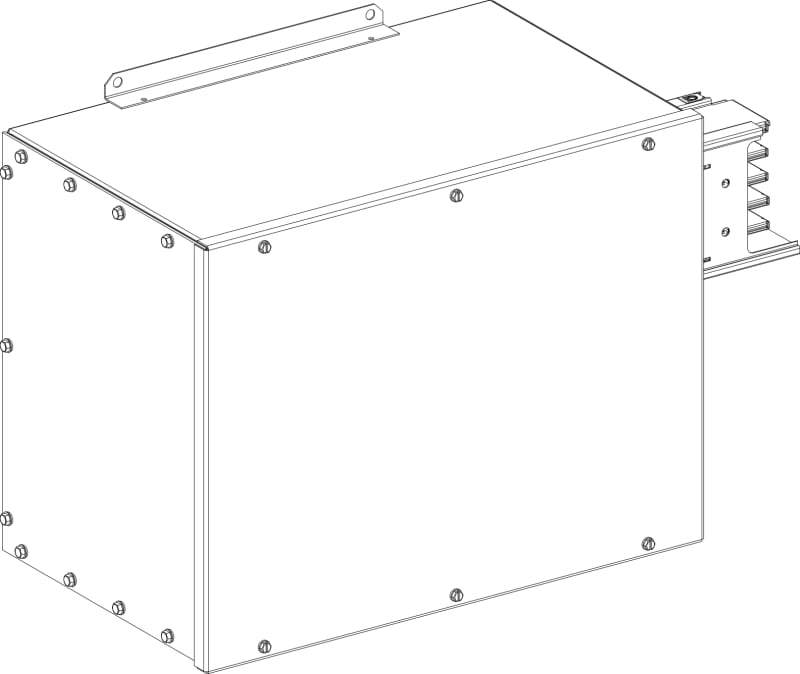

End feed RH/LH 250A (KSA250AB4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA250AB4 Canalis - end feed for KSA - 250 A - mounted from left-hand or right-hand.
Technical Specifications
- Manufacturer part number (MPN)
- KSA250AB4
- EAN / GTIN
- 3606480004025
- Sales unit
- pcs
- Rated current
- 250 A
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 100…250 A
- Offer type
- Classic; Rising main
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 250 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Right; Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Lug for 240 mm² flexible; Lug for 240 mm² rigid
- Width
- 501 mm
- Depth
- 173.5 mm
- Height
- 308 mm
- Product weight
- 8 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 25.400 cm
- Package 1 Width
- 42.200 cm
- Package 1 Length
- 44.400 cm
- Package 1 Weight
- 9.718 kg
- Unit Type of Package 2
- P06
- Number of Units in Package 2
- 6
- Package 2 Height
- 60.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 67.900 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 5
- Length
- 501 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated current AC 50 Hz
- 250 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480004025
- SAP 1000470820
- Code 8797982
Product Documentation
More from Schneider Electric
Schneider Electric

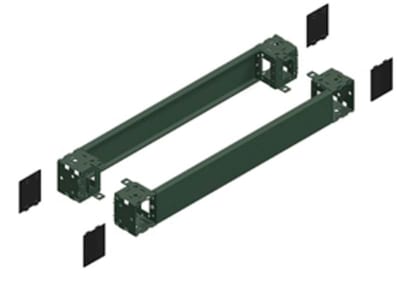

Basefront 100X700 (NSYSPF7100)
Schneider Electric

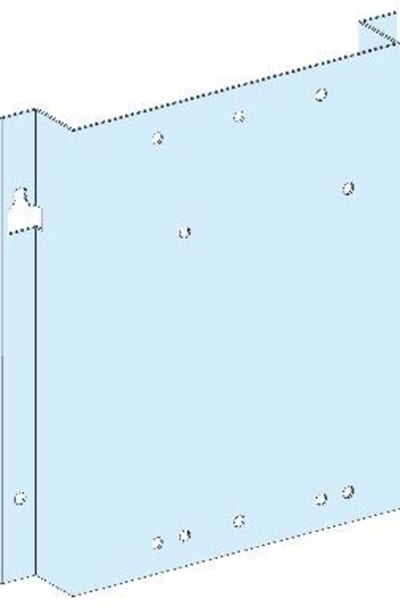

MONTPL.NSX630 PrismaG vertical/tilting B300
LVS03080
Schneider Electric

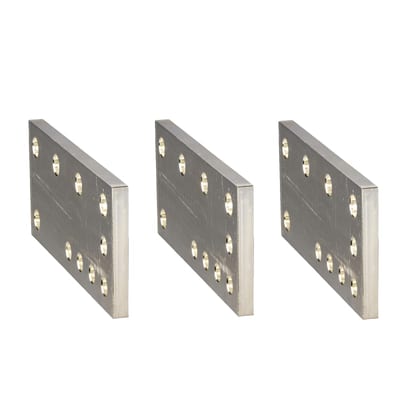

Cableskoadapt. MTZ1 3P
LV833644SP
Schneider Electric

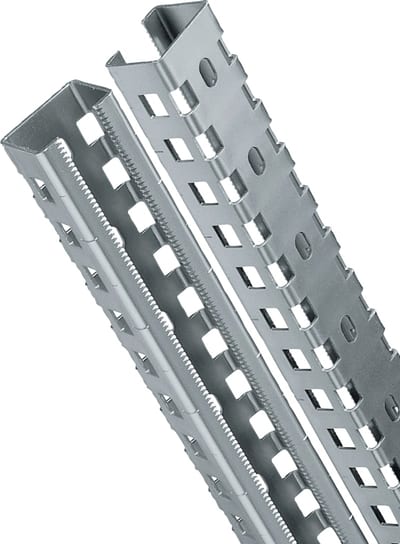

Schneider Electric NSYTVR20 PanelSeT Vertical Upright 2000mm
Schneider Electric

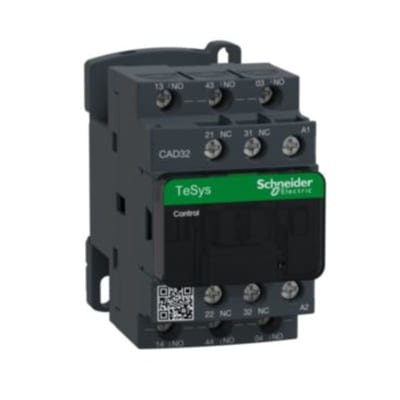

Schneider Electric TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil CAD32F7
Schneider Electric

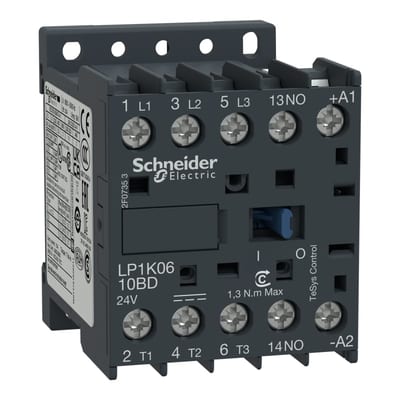

Schneider Electric TeSys K contactor - 3P - AC-3 <= 440 V 6 A - 1 NO aux. - 24 V DC coil LP1K0610BD
Schneider Electric

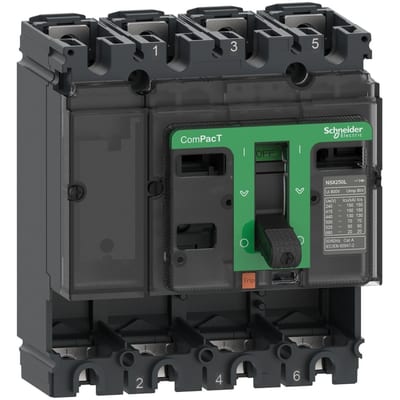

Schneider Electric Circuit breaker basic frame, ComPacT NSX100H, 70KA/415VAC, 4 poles, 100A frame rating, without trip unit C10H4
