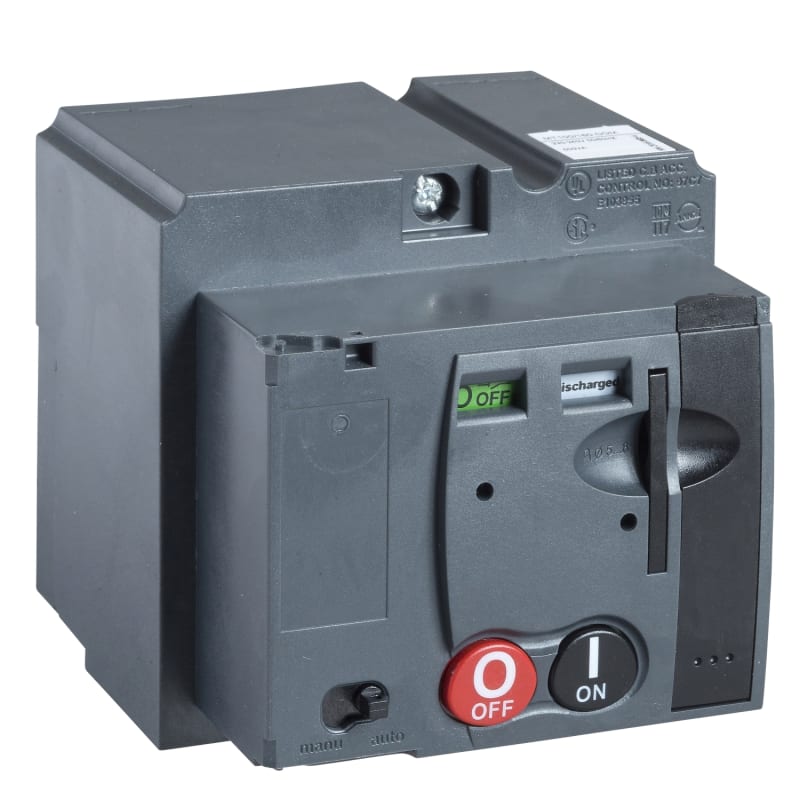

Schneider Electric communicating motor mechanism module MTc 250, ComPact NSX250, 220/240 VAC 50/60 Hz LV431549
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV431549 ComMotor 220-240VAC for NSX250.
Technical Specifications
- Manufacturer part number (MPN)
- LV431549
- EAN / GTIN
- 3606480020254
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Voltage
- 220-240 V AC
- Device short name
- MT100/160
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NSX250; ComPacT NSX250 DC
- Control type
- Communicating
- [Uc] control circuit voltage
- 220...240 V AC 50/60 Hz
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 250 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- < 700 ms open; < 80 ms closed
- Maximum operating frequency
- 4 per minute
- Maximum power consumption in VA
- 500 VA closing; 500 VA opening
- Provided equipment
- SDE adaptor
- Locking options description
- Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Country of origin
- IT
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 230 V
- Rated control supply voltage AC 60 Hz
- 230 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3606480020254
- SAP 1000092624
- Code 8860601
