Wall bracket Stainless
Pricing
Request a quote
We reply within 24 hours
Product Description

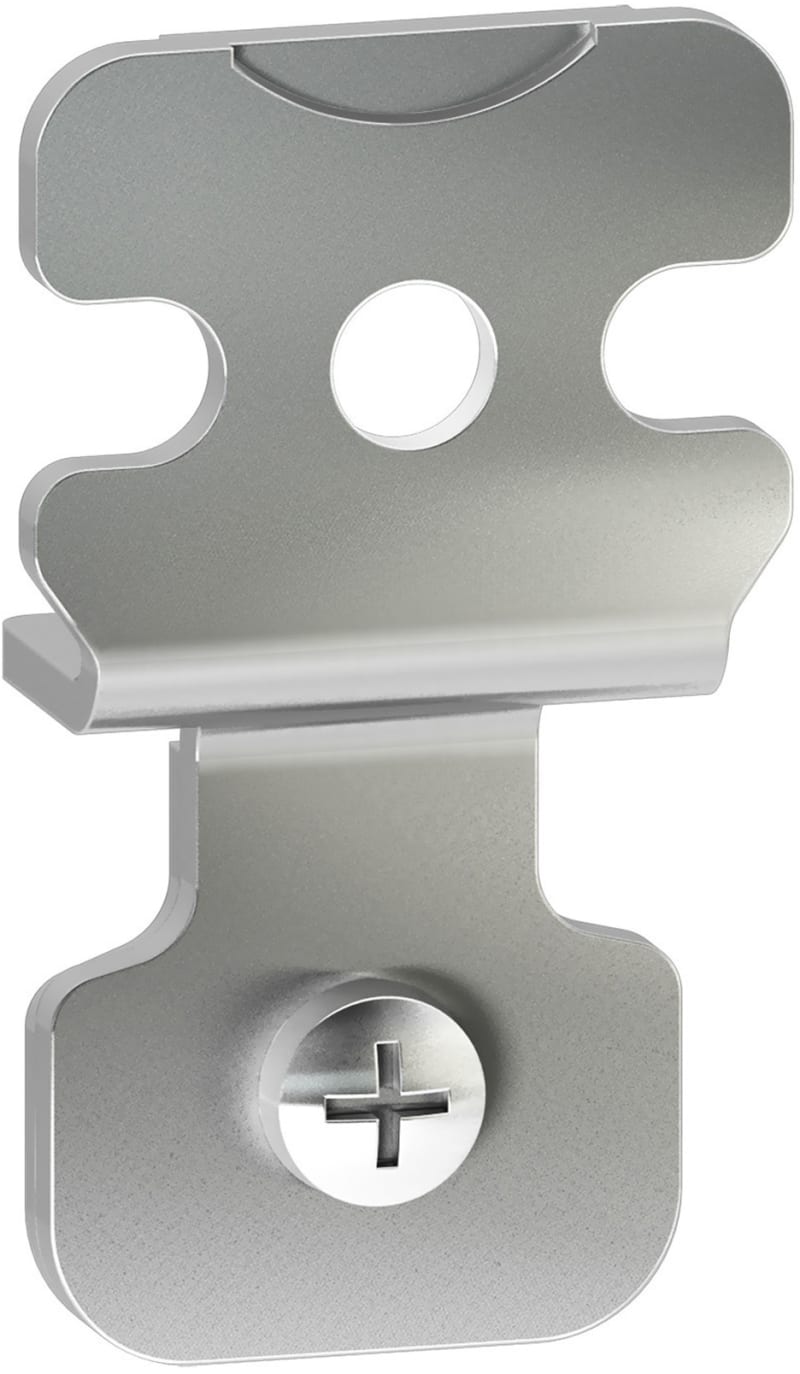

Schneider Electric NSYAEFPFXSC — Set of 4 wall fixing lugs, made of stainless steel. For PanelSet S3D enclosure.
Technical Specifications
- Manufacturer part number (MPN)
- NSYAEFPFXSC
- EAN / GTIN
- 3606480198977
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Fixing accessory
- Product or component type
- Wall fixing support
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Rear of enclosure
- Installation accessory type
- Horizontal or vertical position
- Range compatibility
- PanelSeT S3D; PanelSeT PanelSeT CRNG
- Device composition
- fixing screws; 4 lug; 4 pre-mounted sealing gasket
- Quantity per set
- Set of 1
- Material
- Stainless steel 304L
- Fixing mode
- Screwed - screw type M8; Screwed - screw type M6
- Permanent permissible load
- 250 kg; 249.9 kg
- Height
- Real: 74 mm
- Width
- Real: 42 mm
- Depth
- Wall-enclosure separation : 12 mm; Wall-enclosure separation : 11.94 mm
- Product weight
- 0.286 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.000 cm
- Package 1 Width
- 15.300 cm
- Package 1 Length
- 8.300 cm
- Package 1 Weight
- 279.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 40
- Package 2 Height
- 24.000 cm
- Package 2 Width
- 34.000 cm
- Package 2 Length
- 34.000 cm
- Package 2 Weight
- 12.400 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 960
- Package 3 Height
- 110.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 314.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Spare part
- No
- Accessory
- Yes
- Type of accessory/spare part
- Fastening parts/-set
Standards & Compliance
- HS Code
- 8302.41
Cross References
- EAN 3606480198977
- SAP 1000469997
- Code 8923222
