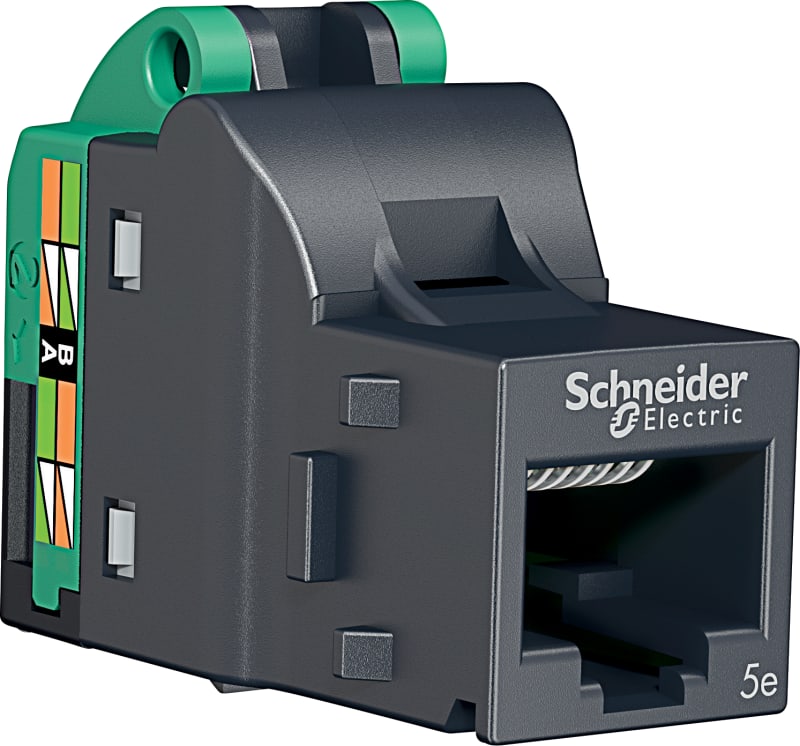

Schneider Electric RJ45 network socket, Actassi, Unshielded, Cat 5E, DPM box x 12, dark grey VDIB17715U12
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VDIB17715U12 Actassi S-One unshielded connector DPM category 5e for link class D.
Technical Specifications
- Manufacturer part number (MPN)
- VDIB17715U12
- EAN / GTIN
- 3606480384684
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Range
- Actassi
- product type
- RJ45 network socket
- Device presentation
- Integrated one piece design
- Colour tint
- Wire organizer: green (ABS + PC); Connector: dark grey (ABS + PC)
- Wiring Colour configuration
- 568 A/B
- Type of packing
- Carton
- Quantity per set
- Set of 12
- [In] rated current
- 1.5 A at 25 °C
- voltage proof
- 1000 V AC/DC peak, between contacts
- Contact resistance
- 20 mOhm
- Insulation resistance
- Initial insulation resistance: >= 500 MOhm at 100 V DC
- AWG gauge
- 24 AWG...23 AWG
- durability
- 750 cycles
- Coupling attenuation
- >= 35 dB at 30…100 MHz; >= 75 - 20 x log(f) dB at 100…1000 MHz
- contact pins
- 8 pins of copper alloy and gold plated conforming to IEC 60603-7
- Pulling force
- 50 N during 60 s
- Transverse conversion loss
- >= 50 dB; >= 68 - 20 x log(f) dB at 1…100000 kHz
- Tool type
- Without tool
- Cable outer diameter
- 0.9…1.4 mm
- compatible LAN cable types
- UTP
- Communication network category
- 5e
- supported applications
- 1000BASE-T
- protocols
- VoIP (Voice IP); PoE+ (Power over Ethernet)
- Product compatibility
- RJ45 plug
- Transmission frequency
- 0…100 MHz
- Type of footprint
- S-One DPM
- Material
- ABS + PC: wire organizer; ABS + PC: connector
- Height
- 28 mm
- Length
- 33 mm
- Width
- 18 mm
- Targeted region
- Europe
- Main colour tint
- Dark grey
- operational temperature range
- -40…70 °C
- climatic category
- 40/070/21 (21 days)
- Flame retardance
- UL94-V0
- Standards
- ANSI/TIA-568-C.2; IEC 60603-7-2; ISO/IEC 11801:2011 Ed.2.2; UL 1863; IEC 60512-99-002
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 1008
- Warranty (in months)
- 18
- Colour
- Grey
- Model
- Bus (jack)
- Category
- 5E
- Suitable for solid conductors
- Yes
- Type of connector
- RJ45 8(8)
- Min. AWG-size
- 24
- Country of origin
- Denmark
