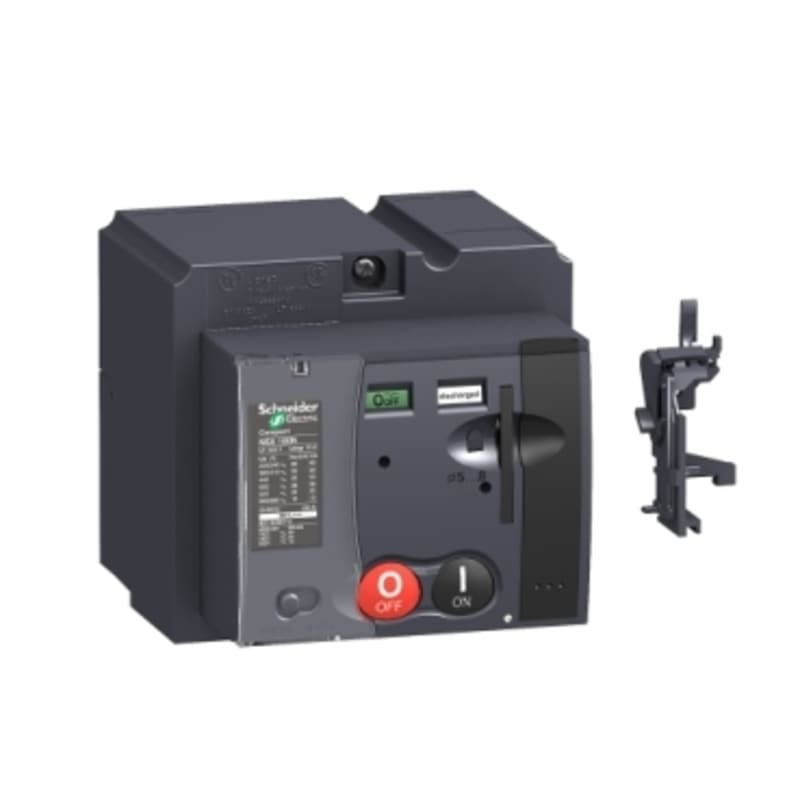

Schneider Electric standard motor mechanism module MT100/160, ComPact NSX100/160, 380/415 VAC 50/60 Hz, 440/480 VAC 60 Hz LV429435

Schneider Electric LV429435 Motor mechanism 380-415VAC NSX100/160.

Manufacturer part number (MPN)

LV429435

EAN / GTIN

3606480020018

Sales unit

pcs

Package quantity

15 pcs

Voltage

380-415 V AC

Device short name

MT250

Product or component type

Motor mechanism

Device application

Automatic spring charging

Range compatibility

ComPacT NSX100; ComPacT NSX160; ComPacT NSX100 DC; ComPacT NSX160 DC

Control type

Standard

[Uc] control circuit voltage

380...415 V AC 50/60 Hz; 440...480 V AC 60 Hz

circuit breaker mounting mode

Fixed

circuit breaker frame rated current

100 A; 160 A

Control signal type

Impulse; Maintained

circuit breaker response time

< 700 ms open; < 80 ms closed

Maximum operating frequency

4 per minute

Maximum power consumption in VA

500 VA closing; 500 VA opening

Provided equipment

SDE adaptor

Locking options description

Padlocking in OFF position; 1 to 3 padlocks Ø 5 to Ø 8

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

IT

Warranty (in months)

18

Rated control supply voltage AC 50 Hz

380–415 V

Rated control supply voltage AC 60 Hz

380–480 V

Type of switch drive

Motor drive

Voltage type for actuating

AC

HS Code

8501.20

• EAN 3606480020018
• SAP 1000092319
• Code 8930299
