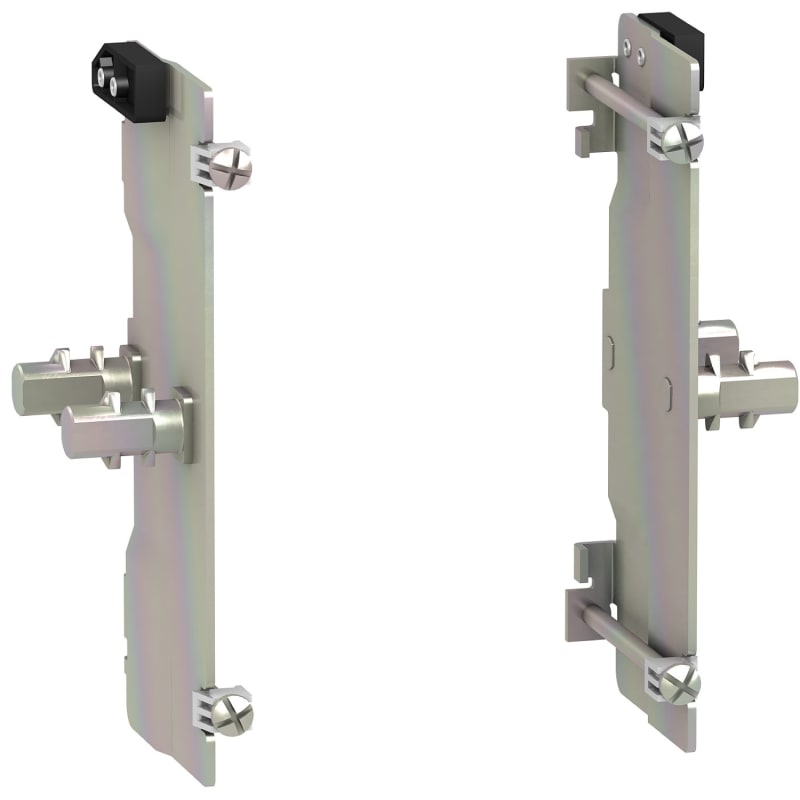

Schneider Electric LV429283 — Chassis Side Plates for Breaker, NSX100/160/250 Withdrawable, 2, 3 or 4 poles

Schneider Electric LV429283 provides the chassis side plates for the breaker of a ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250) withdrawable moulded-case circuit breaker (2, 3 or 4 poles). They mount on the withdrawable chassis to guide and retain the device during racking. Conforms to IEC 60947-2 as a circuit-breaker accessory. RoHS 2011/65/EU and REACH compliant; CE marked.

Type

chassis side plates for breaker (withdrawable device accessory)

Compatible devices

ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250), withdrawable

Poles

2, 3 or 4 poles

Function

mount on the withdrawable chassis (breaker side) to guide and retain the device during racking; a withdrawable configuration uses two chassis

Standard

IEC 60947-2 (circuit-breaker accessory)

Compliance

RoHS 2011/65/EU, REACH; CE marked

Manufacturer part number (MPN)

LV429283

EAN / GTIN

3606480021428

HS code

8538.90

Product or component type

Side plate

Accessory / separate part category

Mounting accessory

Range compatibility

ComPact ComPact NSX100; ComPact ComPact NSX160; ComPact ComPact NSX250; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; ComPact Compact NSX250 DC

Poles description

2P; 4P; 3P

Kit composition

Chassis side plates for breaker

mounting mode

Drawout

[In] rated current

250 A

Country of origin

PL

Warranty (in months)

18

Standard

IEC 60947-2

HS Code

8538.90
