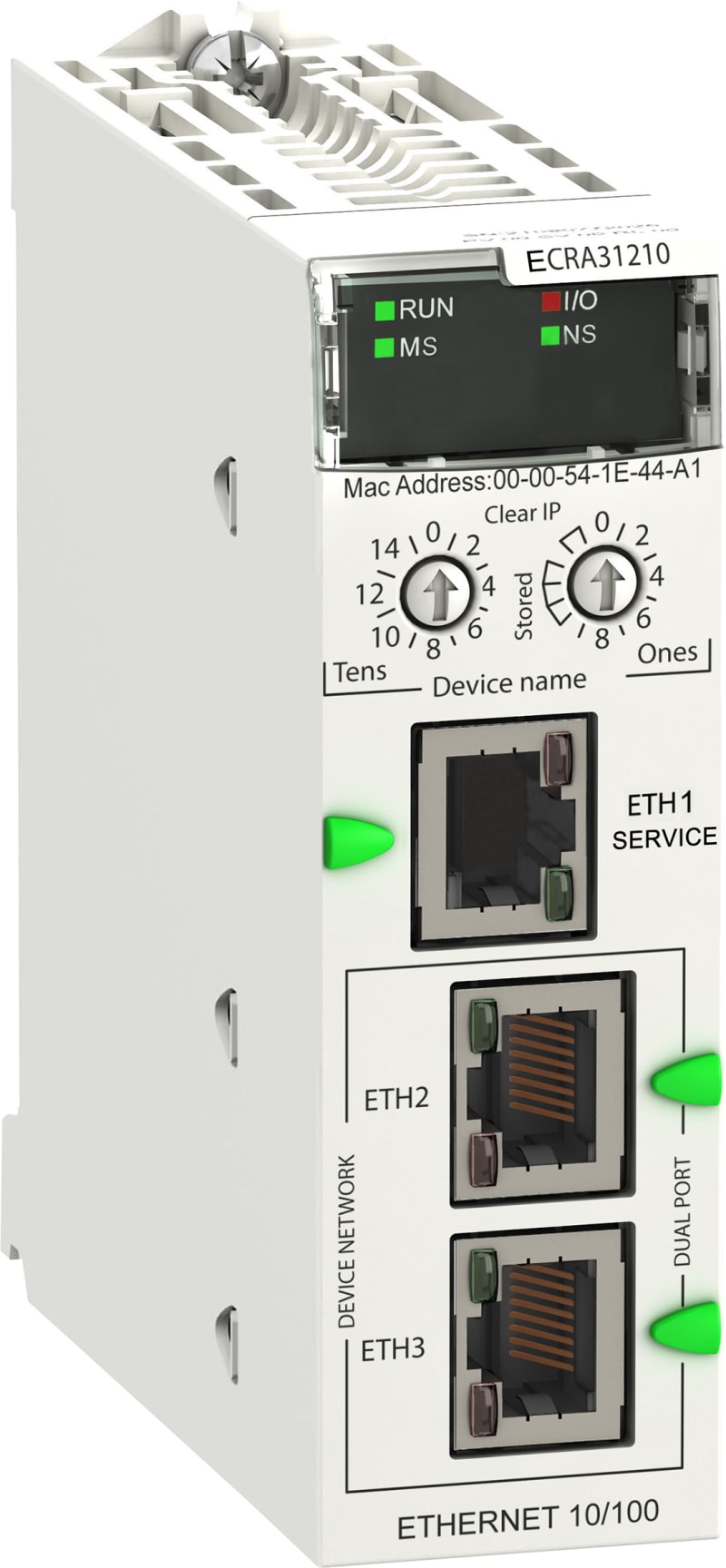

Schneider Electric Modicon X80 EIO Drop adapter with Ethernet backplane BMECRA31210

Schneider Electric BMECRA31210 eX80 RIO drop perf, Ethernet.

Manufacturer part number (MPN)

BMECRA31210

EAN / GTIN

3595864174013

Sales unit

pcs

Package quantity

15 pcs

Range of product

Modicon X80

Range compatibility

Modicon M580

Product or component type

I/O expansion module

Device application

X80 Ethernet RIO drop adaptor

Product specific application

For remote I/O modules

Bus type

Bus X across the remote backplane; Ethernet across the remote backplane

Number of port

3

Integrated connection type

1 port for service or distributed equipment; 2 port for Ethernet RIO Network (RSTP)

Communication network type

IPv4 (internet protocol)

Communication port protocol

EtherNet/IP

Communication service

Ethernet/IP adapter; RSTP (Ring topology support); Ethernet RIO network; Quality of Service (QoS); CIP Explicit messaging (server); Modbus TCP server for module diagnostics; DHCP client; TFTP client; FTP client; FDR client; SNTP client; SNMP agent

Cybersecurity

Enable/disable communication ports; Syslog protocol support

Connector type

3 RJ45

Exchange mode

Half duplex, full duplex, autonegotiation, auto MDIX

Transmission rate

10/100 Mbit/s

Port Ethernet

10/100BASE-TX

Function available

CCOTF (configuration change on the fly); Input data is collected and published to the remote I/O head adaptor; Output modules are updated with the data received from remote I/O head adaptor; Diagnostics for remote I/O devices (Device DDT); Port mirroring; System time stamping; Non-interfering type 1; I/O extension rack

Data recording

10 ms time stamps

Topology

Ring

Local signalling

1 LED (green) for module active (RUN); 1 LED (red) for module error (ERR); 1 LED (green/red) for module status (Mod Status); 1 LED (green/red) for network communication status (Net Status); 1 LED (green) for Ethernet link diagnostics (STS)

Current consumption

1800 mA

Input voltage

3.3 V DC

Product compatibility

0…1024 discrete channel; 0…256 analog channel; counter module; time-stamping module; SSI encoder interface module; motion control module; frequency input module; AS-Interface module; serial link module; fiber converter modules; HART module; weighing module; CANopen master module (standalone CPU only); PROFIBUS module (standalone CPU only); Ethernet switch module

Module format

Standard

Product weight

0.225 kg

Maximum altitude transport

3000 m

Relative humidity

95 % without condensation

fixing mode

By screws

mounting mode

Rack-mounted

Width

32 mm

Height

100 mm

Depth

87.5 mm

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Product certifications

CE; UL; CSA; RCM; EAC; Merchant Navy

Standards

IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; IEC 61000-6-5, interface type 1 and type 2; IEC 61850-3, location G

Environmental characteristic

Standard environment

IP degree of protection

IP20

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…85 °C

Operating altitude

<= 2000 m

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.500 cm

Package 1 Width

11.200 cm

Package 1 Length

12.000 cm

Package 1 Weight

259.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.246 kg

Unit Type of Package 3

P06

Number of Units in Package 3

120

Package 3 Height

45.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

41.000 kg

Country of origin

FR

Warranty (in months)

18

Power consumption

5.9 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of HW-interfaces industrial Ethernet

3

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

Type of data transmission

Serial

With potential separation

No

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8517.62
