Schneider Electric ABS box IP66 IK07 RAL7035 INT.H275W225D80 EXT.H291W241D88 Opaque cover H20 NSYTBS29248
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS29248 85015 Abs Box 291X241X88 T.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS29248
- EAN / GTIN
- 3606480165368
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Dimensions
- 291×241×88
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 291 mm
- Width
- 241 mm
- Depth
- 88 mm
- Internal height
- 275 mm
- Internal width
- 225 mm
- Internal depth
- 80 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Body type
- One piece moulded
- Type of front cover
- Low plain cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 0.86 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 96
- Country of origin
- HU
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Material quality
- Acrylonitrile butadiene styrene (ABS)
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480165368
- SAP 1000090259
- Code 8925030
Product Documentation
More from Schneider Electric
Schneider Electric
Mushroom Head Pressure/TREK Black Ø40mm (ZB4BT2)
Schneider Electric
Schneider Electric LV429317 — Escutcheon for all control types, fixed NSX100/160/250, IP40
Schneider Electric
Schneider Electric 20-Pin removable spring terminal blocks - 1 x 0.34..1 MM2 BMXFTB2020
Schneider Electric
Schneider Electric PanelSeT SFN/SF Lifting Brackets, Set of 4
NSYSFELB
Schneider Electric
RAIL 250A 3M 6 Outlet
KSA250ED4306
Schneider Electric
Selector switch K.3POS.RET.FROM H,BLACK
ZB5AD8
Schneider Electric
Top plate with PLASTIC FLANGE-B300-IP30-PRISMA G
LVS08884
Schneider Electric

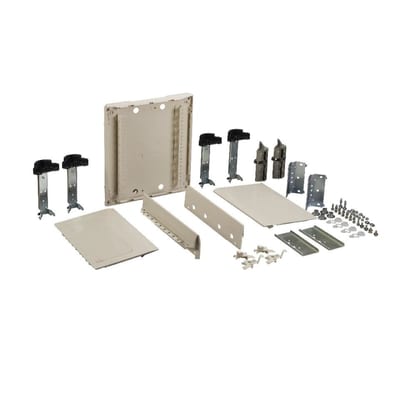

Schneider Electric Wall mounted duct, PrismaSeT G, W 300mm, H 1380mm (27M), IP30, without side plates LVS08179
