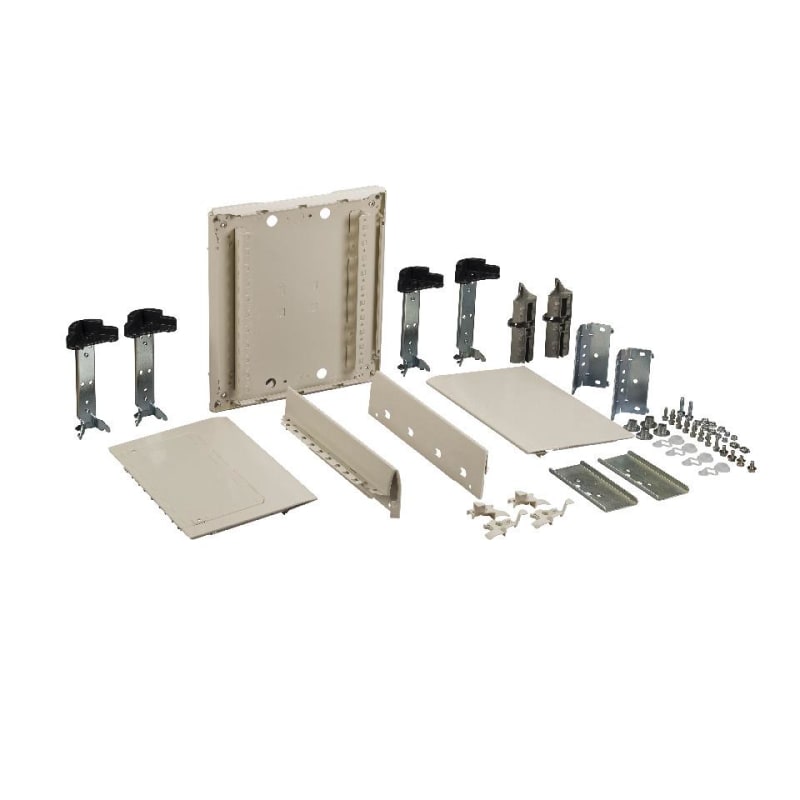

Schneider Electric Wall mounted duct, PrismaSeT G, W 300mm, H 1380mm (27M), IP30, without side plates LVS08179
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08179 Cable Compartment PrismaSeT G Wall-mount cabinet 27-modules-width 300mm-IP30.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08179
- EAN / GTIN
- 3606481876331
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Duct
- Device application
- Low voltage electrical distribution
- Enclosure type
- Functional enclosure delivered in kit form; Metal enclosure; Indoor enclosure
- Enclosure/cubicle description
- Wall-mounted duct - width 300 mm
- Kit composition
- uprights; rear plate; top plate; bottom plate
- Additional information
- Can be combined side by side and one on top of another
- type of front plate
- Without to be ordered separately
- Number of vertical modules [50 mm]
- 27
- Number of 18 mm modules per row
- 10
- Standards
- IEC 61439-1; IEC 61439-2; IEC 62208
- Product certifications
- ASTA; EAC
- [Ui] rated insulation voltage
- 1000 V on main rear busbars conforming to IEC 61439-2
- Network frequency
- 50/60 Hz
- [In] rated current
- 630 A at 40 °C conforming to IEC 61439-2
- Short-circuit current
- 50 kA
- [Icw] rated short-time withstand current
- 25 kA 1 s conforming to IEC 61439-1
- [Ipk] rated peak withstand current
- 53 kA conforming to IEC 61439-1
- Electrical insulation class
- Class I
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 305 mm
- Height
- 1380 mm
- Depth
- 205 mm
- Product weight
- 11.44 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP30 with front plate; IP40 with door; IP41 with door and canopy; IP43 with door, canopy and IP43 gasket
- IK degree of protection
- IK07 with front plate; IK08 with transparent door; IK10 with plain door
- Mechanical robustness
- Seismic tests - 2.5G conforming to IEC 60068-2-57
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 10.5 cm
- Package 1 Width
- 35.0 cm
- Package 1 Length
- 144.5 cm
- Package 1 Weight
- 11.75 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 24
- Package 2 Height
- 96 cm
- Package 2 Width
- 120 cm
- Package 2 Length
- 202 cm
- Package 2 Weight
- 310 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
- With mounting plate
- No
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK07
- Degree of protection (IP)
- IP30
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606481876331
- SAP 1200546920
- Code 82880012
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric MX shunt release, ComPacT NSX, rated voltage 125 VDC, screwless spring terminal connections LV429393
Schneider Electric

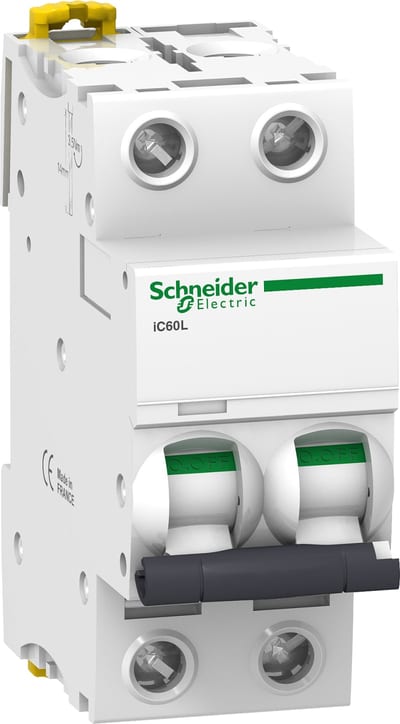

Schneider Electric A9F94204 ACTI9 IC60L Miniature Circuit Breaker 2P 4 A, Curve C
Schneider Electric

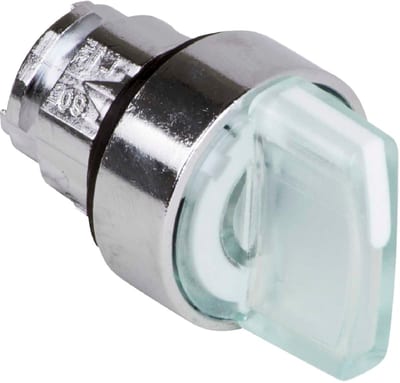

Selector switch with LIGHT 3ST.WHITE LED (ZB4BK1313)
Schneider Electric

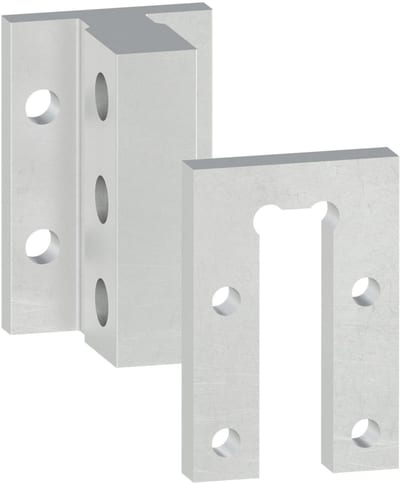

Schneider Electric OFF position locking - Profalux/Ronis adaptation kit + padlock - MTZ2/MTZ3 - sp LV848541SP
Schneider Electric

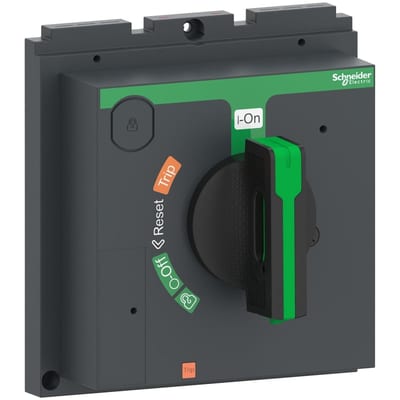

Schneider Electric direct rotary handle, ComPacT NSX 400/630, black handle, IP40 LV432597T
Schneider Electric

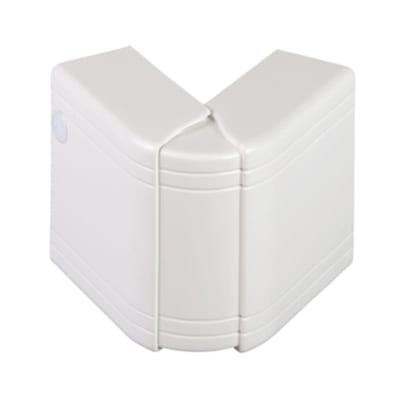

External corner Tir+ YH60/40WHITE
5427105
Schneider Electric

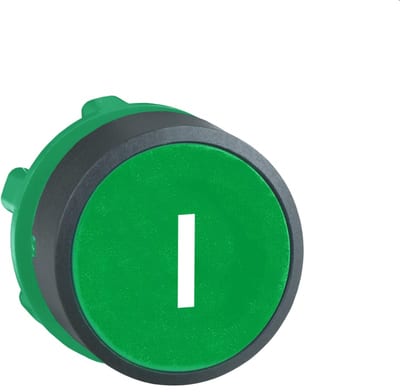

Push-Button Head GREEN,MERK.In (ZB5AA331)
