Top plate with PLASTIC FLANGE-B300-IP30-PRISMA G
Pricing
Request a quote
We reply within 24 hours
Product Description

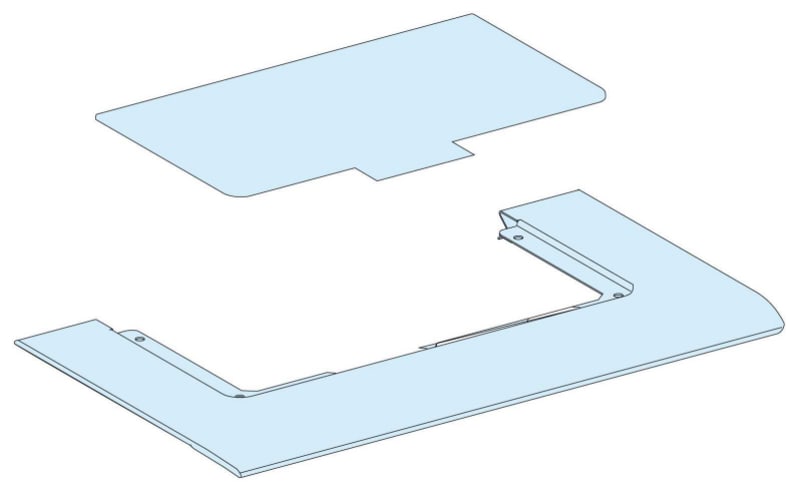

Schneider Electric LVS08884 Top plate with plastic flange-width 300mm-cable compartment-IP30-PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08884
- EAN / GTIN
- 3606481879516
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Roof plate
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure; Indoor enclosure
- installation description
- Wall-mounted duct - width 300 mm; Floor-standing duct - width 300 mm
- Provided equipment
- 1 gland plate; 1 plate with cut-outs
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel; Plastic
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 35 mm
- Depth
- 195 mm
- Product weight
- 0.52 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP30 for enclosure
- IK degree of protection
- IK08
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 20.000 cm
- Package 1 Length
- 68.000 cm
- Package 1 Weight
- 618.000 g
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 33
- Package 2 Height
- 49.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 32.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
- With cable entry
- Yes
- Suitable for enclosure building width
- 300 mm
- Suitable for enclosure building depth
- 260 mm
- With de-aeration
- No
- Suitable for outdoor set-up
- No
- Surface finishing
- Powder coating
- Suitable for roof planking
- Yes
- Suitable for bottom planking
- Yes
- Suitable for outdoor installation
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879516
- SAP 1200547415
- Code 82879468
