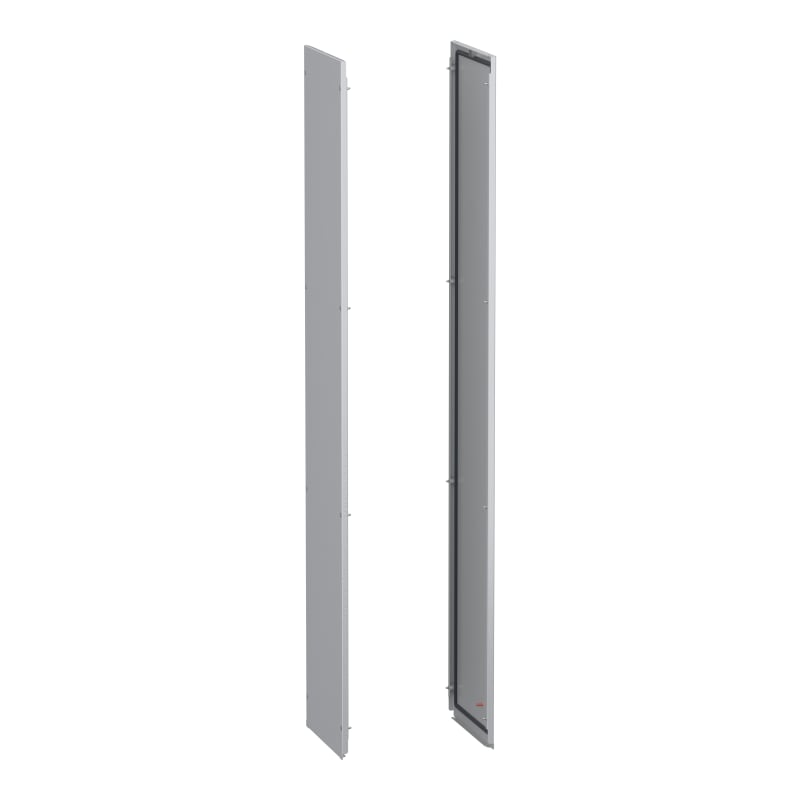

Side Plates SFN 1800X400
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSY2SPN184 Side Plates, PanelSeT SFN, 1800x400.
Technical Specifications
- Manufacturer part number (MPN)
- NSY2SPN184
- EAN / GTIN
- 3606486104392
- Sales unit
- pcs
- Dimensions
- 1800×400 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Side panel
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 1800 mm D: 400 mm
- Mounting location
- Sides of enclosure
- Range compatibility
- PanelSeT SFN
- Device composition
- fixing elements; 2 side panel
- Material
- Steel
- Product weight
- 118.2 kg
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - screw type captive - from the outside of enclosure location
- Height
- Nominal: 1800 mm
- Width
- Nominal: 400 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.500 cm
- Package 1 Width
- 37.500 cm
- Package 1 Length
- 180.000 cm
- Package 1 Weight
- 20.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 30
- Package 2 Height
- 82.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 632.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 400 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- With cable entry
- No
- With lock
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104392
- SAP 1200698086
- Code 83799827
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=400V, 50A, 24V AC 50/60Hz coil, screw clamp terminals LC1D50AB7
Schneider Electric
Main pole 25A (VZ0)
Schneider Electric
Schneider Electric Modicon X80 EIO Drop adapter with Ethernet backplane BMECRA31210
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 400A, standard version, 100…250V wide band AC/DC coil LC1G400KUEN
Schneider Electric
Door for PrismaSeT G cabinet 30MOD B600-IP30
LVS08223
Schneider Electric

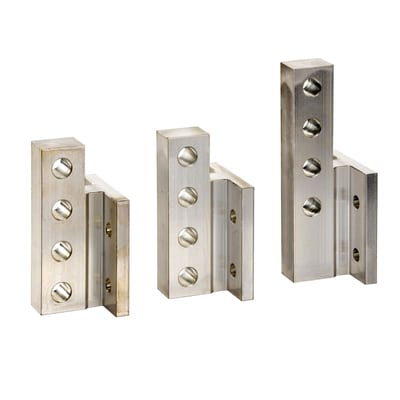

Baktilk. hor. MTZ2 40 3P res.
LV847970SP
Schneider Electric

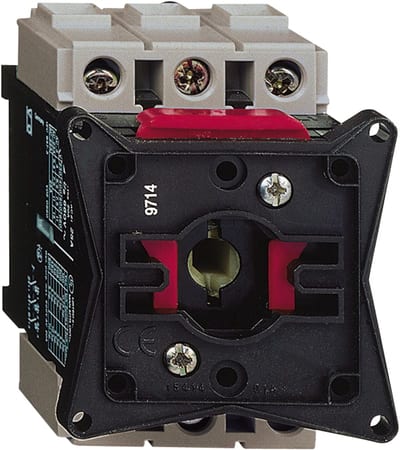

Switch Block 3P 25A without GREP
