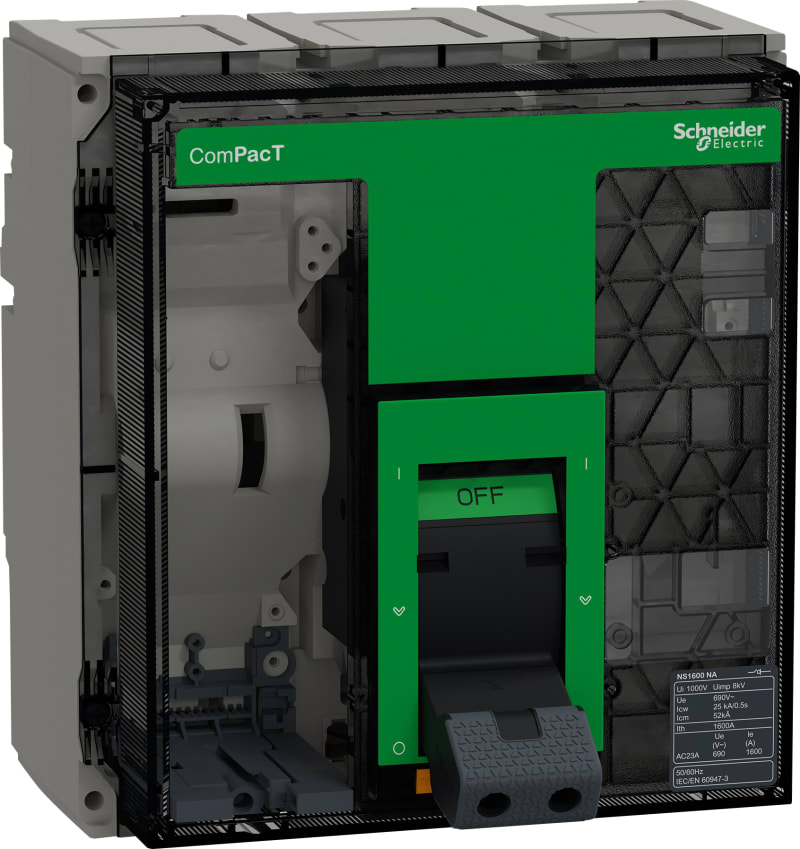

Schneider Electric Switch disconnector basic frame, ComPacT NS1600 type NA, 3P, fixed, manually operated, 1600A C160S3FM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C160S3FM Load-Break Switch Base-ComPacT NS1600NA-fixed-mounted-3P-manual-1600A.
Technical Specifications
- Manufacturer part number (MPN)
- C160S3FM
- EAN / GTIN
- 3606482238442
- HS code
- 8536.90
- Sales unit
- pcs
- Number of poles
- 3
- Product name
- ComPacT NS new generation
- Product or component type
- Basic frame
- Device application
- Distribution
- Poles description
- 3P
- Network type
- AC
- Breaking capacity code
- NA
- Suitability for isolation
- Yes conforming to IEC 60947-3
- Network frequency
- 50/60 Hz
- Control type
- Manually operated
- mounting mode
- Fixed
- Upside connection
- Front
- Downside connection
- Front
- [Ie] rated operational current
- AC-23A: 1600 A AC 50/60 Hz 220/240 V; AC-23A: 1600 A AC 50/60 Hz 380/415 V; AC-23A: 1600 A AC 50/60 Hz 440/480 V; AC-23A: 1600 A AC 50/60 Hz 500/525 V; AC-23A: 1600 A AC 50/60 Hz 660/690 V
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz conforming to IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-3
- [Ith] conventional free air thermal current
- 1600 A at 60 °C
- [Icw] rated short-time withstand current
- 25 kA during 0.5 s conforming to IEC 60947-3; 4 kA during 20 s conforming to IEC 60947-3
- [Icm] rated short-circuit making capacity
- 52 kA 690 V AC at 50/60 Hz
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 10000 cycles conforming to IEC 60947-3
- Electrical durability
- 2000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
- Connection pitch
- 70 mm
- Height
- 210 mm
- Width
- 327 mm
- Depth
- 147 mm
- Product weight
- 14 kg
- Standards
- IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to EN 50102
- Pollution degree
- 3 conforming to IEC 60947-3
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482238442
- SAP 1200663726
- Code 83099425
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric set of ten metalic shutters to keep IP55 when graphic display is removed VW3A1116
Schneider Electric

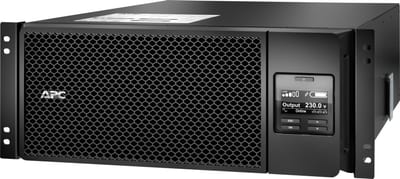

APC UPS SRT 6KVA 230V RM
SRT6KRMXLI
Schneider Electric

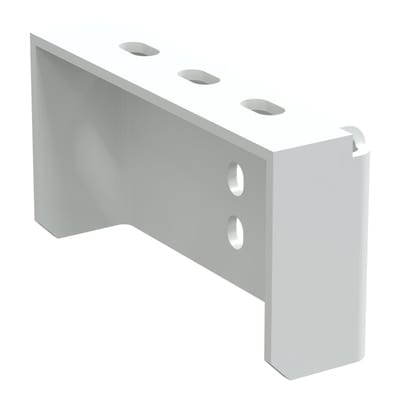

STUD-PRISMASET6300-1200MM FELT-2 pcs
LVS06500
Schneider Electric

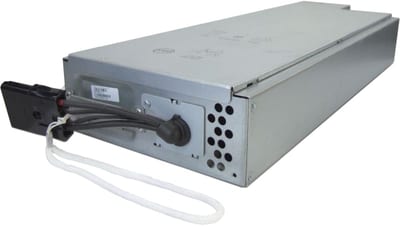

APC Replacement Battery Cartri (APCRBC117)
Schneider Electric

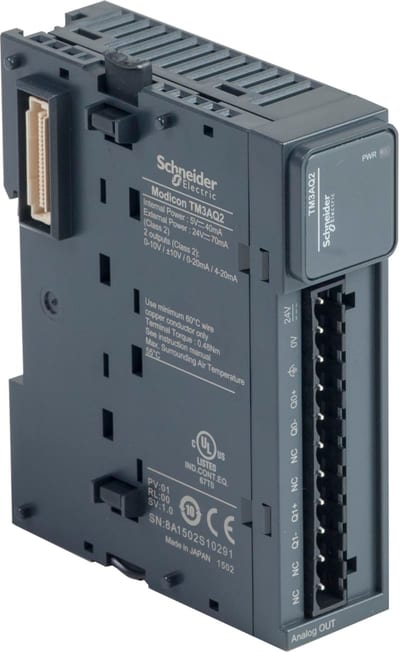

Schneider Electric Modicon TM3 - 2 analog outputs (screw) 24VDC TM3AQ2
Schneider Electric

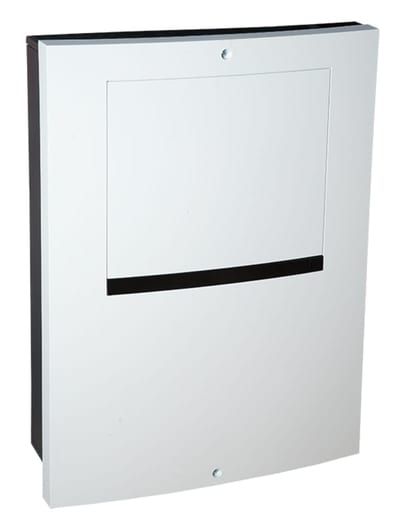

FDP252/292 battery enclosure 4X17AH
FFS00704630
Schneider Electric

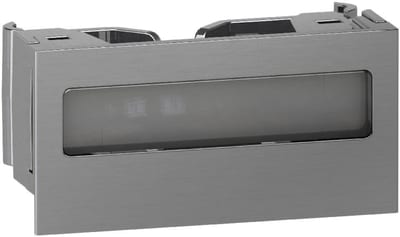

Schneider Electric Unica Metallic Label Holder
ISM10922
Schneider Electric

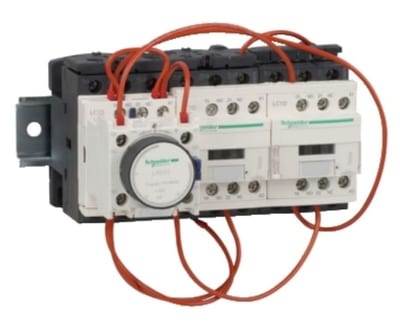

Schneider Electric TeSys D - star delta starter - 3 x 3P (3 NO) - 18 A - 230 V AC coil LC3D18AP7
