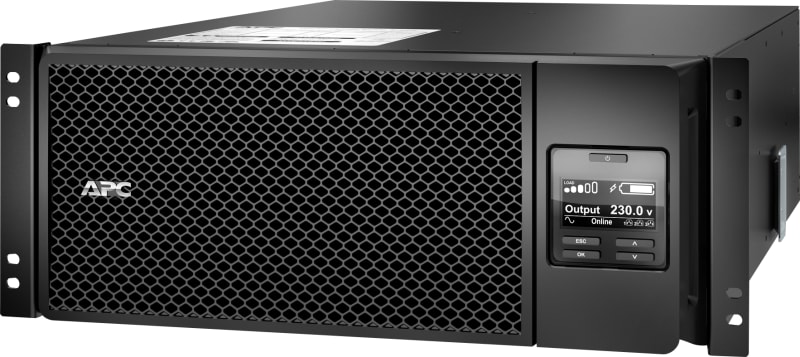

APC UPS SRT 6KVA 230V RM

Schneider Electric SRT6KRMXLI APC -UPS SRT 6kVA, Rack 4U, 230V,in/out:1P+N+J out:6x C13 4x C19,nettverkskort,expandable,rail kit.

Manufacturer part number (MPN)

SRT6KRMXLI

EAN / GTIN

0731304308515

Sales unit

pcs

Voltage

230 V

Presentation

High density, double-conversion on-line power protection with scalable runtime.

Main input voltage

220 V AC 1 phase; 230 V AC 1 phase; 240 V AC 1 phase

Other input voltage

220 V; 240 V

Input connection

IEC 60320 Hard Wire 3-wire

Efficiency at full load

100...275 V adjustable (half load)

Input frequency

40...70 Hz auto-sensing

Output voltage

220 V AC 1 phase; 230 V 1 phase; 240 V 1 phase

Other output voltage

220 V; 240 V

Rated power in W

6000 W

Rated power in VA

6000 VA

Output connection

6 IEC 60320; 2 IEC Jumpers; 4 IEC 60320

Bypass type

Internal bypass (automatic and manual)

Crest factor

3 : 1

Harmonic distortion

Less than 2 %

Maximum configurable power in VA

6000 VA

Maximum configurable power in W

6000 W

UPS topology

On-Line

Waveform type

Its wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Replacement battery

APCRBC140

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid internal included

Emergency power off

Yes

Free slot

1

Preinstalled device

Network management card 3 with environmental monitoring

Alarm

Audible and visible alarms : prioritized by severity

UPS connectivity

Serial port; USB port; Embedded network management card 3; Available expansion slot

Surge energy rating

480 J

Number of rack unit

4U

Number of cables

2

Color

Black

Height

174 mm

Width

432 mm

Depth

719.4 mm

Product weight

60 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

Two post mountable

0

USB compatible

Yes

Mounting position

Horizontal

Provided equipment

CD with software; Installation guide; Rack mounting hardware; Rack mounting brackets; Rack mounting support rails; Temperature probe; USB cable; Warranty card; Web/SNMP management card

Number of power module filled slots

0

Number of power module free slots

0

Additional specification

High density

Redundant

No

Range of product

Smart-UPS On-Line

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; EAC; IRAM; RCM; VDE

Marking

CE Mark

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

55 dBA

Heat dissipation

1300 Btu/h

Operating altitude

0...10000 ft

Battery voltage

192 V

Extendable runtime

1

Included battery module

0

Typical recharge time

1.5 h

RBC quantity

1

Battery life

3…5 year(s)

Battery charging power

597 W rated

Number of Units in Package 1

1

Country of origin

PH

Warranty (in months)

24 Battery|36 UPS

HS Code

8504.40

• EAN 0731304308515
• SAP 1000653575
• Code 8216214
