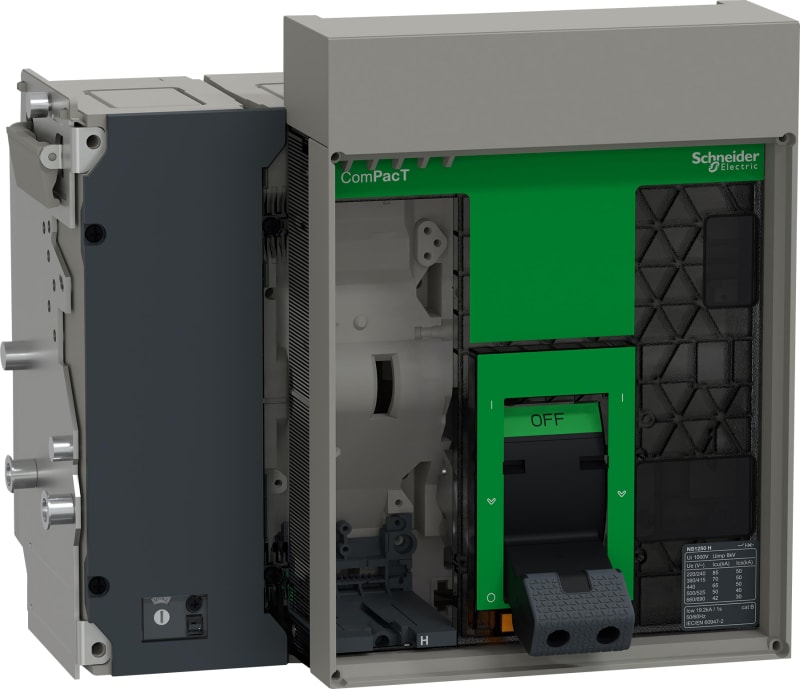

Schneider Electric Circuit breaker frame, ComPacT NS1250H, 70KA at 415VAC, 1250A, 4P, drawout, manually operated, without control unit C125H4WM

Schneider Electric C125H4WM Circuit Breaker Base-ComPacT NS1250H-withdrawable-4p-manual-without protection-1250A-85kA/230VAC-70kA/400/440VAC.

Manufacturer part number (MPN)

C125H4WM

EAN / GTIN

3606482238244

Sales unit

pcs

Range

ComPacT

Range of product

ComPacT NS630b...1600 new generation

Product or component type

Basic frame

Device application

Distribution

Number of poles

4P

Neutral position

Left

[In] rated current

1250 A at 50 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category B

Breaking capacity

85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2; 42 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

H 70 kA 415 V AC

Control type

Manually operated

mounting mode

Withdrawable

[Ui] rated insulation voltage

800 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

[Ics] rated service breaking capacity

52 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 52 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 48 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2; 37 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2; 31 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

[Icw] rated short-time withstand current

19.2 kA 1 s conforming to IEC 60947-2

Integral instant protection

40 kA

Mechanical durability

10000 cycles conforming to IEC 60947-2

Electrical durability

2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2; 3000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 4000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2; 5000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2

Power losses

84 W

Mounting support

Backplate

Connection pitch

70 mm

Protection type

Without protection

Height (H)

260 mm

Width (W)

306 mm

Depth (D)

147 mm

Standards

IEC 60947-2

Product certifications

IECEE CB Scheme

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60947

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to EN 50102

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.0 cm

Package 1 Width

1.0 cm

Package 1 Length

2.0 cm

Package 1 Weight

10.0 g

Country of origin

IT

Warranty (in months)

18

Rated permanent current Iu

1250 A

With integrated under voltage release

No

Rated voltage

690 V

Power loss

336 W

Degree of protection (IP)

IP40

Position of connection for main current circuit

Connection at separate chassis part

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Type of control element

Rocker lever

With switched-off indicator

Yes

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz

70 kA

Suitable for DIN rail (top hat rail) mounting

No

Integrated earth fault protection

No

Motor drive optional

Yes

Device construction

Built-in device slide-in technique (withdrawable)

DIN rail (top hat rail) mounting optional

No

Complete device with protection unit

No

HS Code

8536.20
