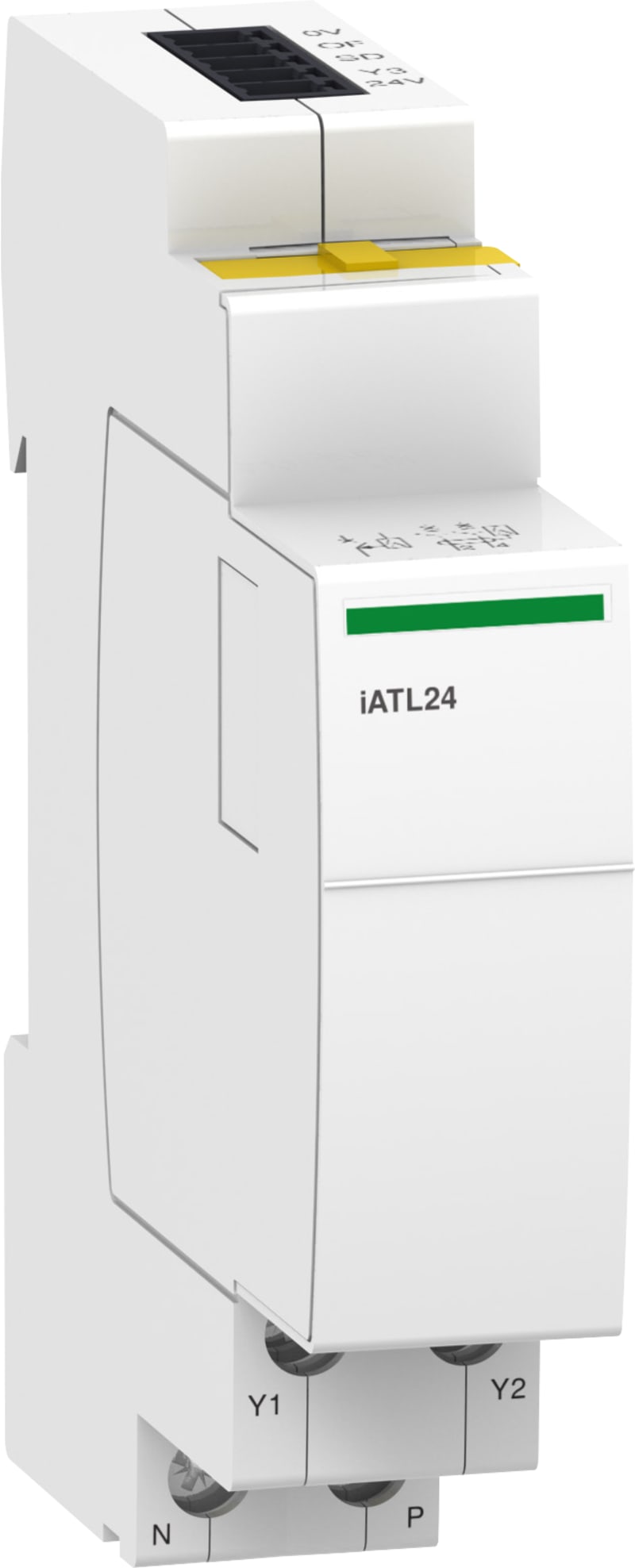

Schneider Electric ACTI9 IATL24 control and remote indication with TI24 connector A9C15424

Schneider Electric A9C15424 Impulse relay iATL24 Smartlink.

Manufacturer part number (MPN)

A9C15424

EAN / GTIN

3606480430626

Sales unit

pcs

Package quantity

108 pcs

range of product

Acti9

Device short name

iATL24

Product or component type

Control and indication auxiliary

Signal contacts composition

1 NO

Signalling circuit voltage

24 V DC: +/- 20 % 0.002...0.1 A

[Uc] control circuit voltage

230 V AC 50/60 Hz impulse >= 200 ms; 24 V DC falling edge; 24 V DC rising edge

[Us] rated supply voltage

230 V AC at 50/60 Hz

Control type

Remote control

[Ui] rated insulation voltage

250 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

Power consumption in W

1 W

mounting mode

Fixed, on the left of CT

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Bottom: YES; Top: NO

Electrical durability

250000 cycles conforming to IEC 60947-5-1

Immunity to microbreaks

10 ms

Undervoltage behaviour

No opening if loss of 24 V DC

9 mm pitches

2

Height

81 mm

Width

18 mm

Depth

68 mm

Colour

White

Connections - terminals

Power supply: tunnel type terminals 1 cable(s) 0.5…10 mm² - rigid; Power supply: tunnel type terminals 1 cable(s) 0.5…6 mm² - flexible; Power supply: tunnel type terminals 1 cable(s) 0.5…4 mm² - flexible with ferrule; Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - rigid; Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - flexible; Input: tunnel type terminals 2 cable(s) 0.5…2.5 mm² - flexible with ferrule; Ti24 interface: spring-loaded terminal Ti24 2 cable(s) 0.5…1.5 mm² - rigid; Ti24 interface: spring-loaded terminal Ti24 1 cable(s) 0.5…1.5 mm² - flexible

Wire stripping length

Power supply: 9 mm for bottom connection; Input: 9 mm for bottom connection; Ti24 interface: 10 mm for top connection

Tightening torque

Power supply: 1 N.m bottom; Input: 1 N.m bottom

Range compatibility

Acti9 iTL; Acti9 iTLi; Acti9 iTLs; Acti9 iTLc

Product compatibility

Acti 9 Smartlink; ITL (32 A) - 230/240 V 50 Hz; ITL (16 A) - 230/240 V 50 Hz

Overvoltage category

IV

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to IEC 60439-1

Tropicalisation

2 conforming to IEC 60947-5-1

Relative humidity

93 % at 40 °C conforming to IEC 60068-2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…80 °C

Quality labels

CE

Standards

IEC 60947-1 appendix S

Number of Units in Package 1

1

Number of Units in Package 2

108

Warranty (in months)

18

Function

Remote drive

Voltage type

DC

Rated voltage

24 V

Installed at the factory

No

Width in number of modular spacings

1

Rated switch current

0.002 A

Device fitting

Contactor/relay

Additional equipment

Remote drive

Voltage type for actuating

DC

Number of contacts as normally open contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

32 A

Country of origin

Spain

HS Code

8538.90
