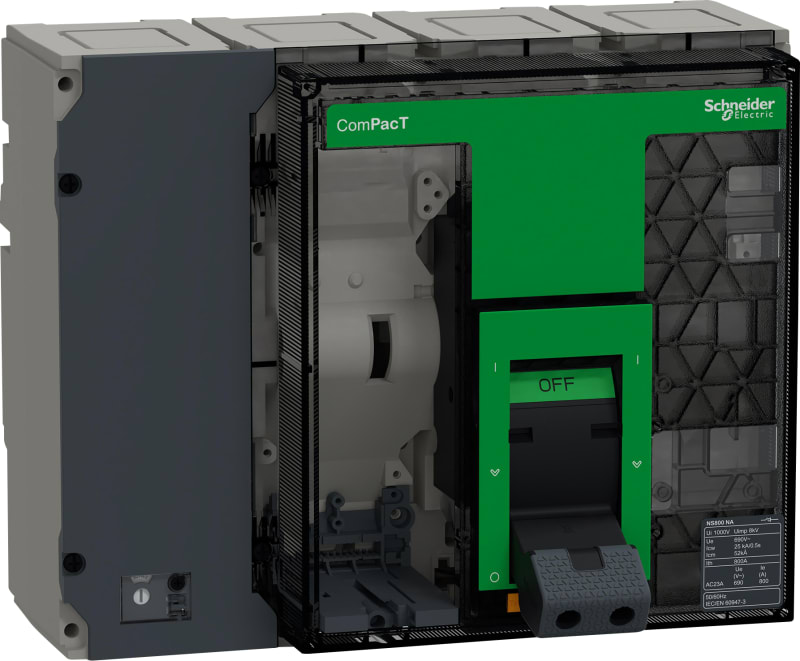

Schneider Electric Switch disconnector basic frame, ComPacT NS800 type NA, 4P, fixed, manually operated, 800A C080S4FM
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C080S4FM Load-Break Switch Base-ComPacT NS800NA-fixed-mounted-4p-manual-800A.
Technical Specifications
- Manufacturer part number (MPN)
- C080S4FM
- EAN / GTIN
- 3606482238466
- HS code
- 8536.90
- Sales unit
- pcs
- Product name
- ComPacT NS new generation
- Product or component type
- Basic frame
- Device application
- Distribution
- Poles description
- 4P
- Network type
- AC
- Breaking capacity code
- NA
- Suitability for isolation
- Yes conforming to IEC 60947-3
- Network frequency
- 50/60 Hz
- Control type
- Manually operated
- mounting mode
- Fixed
- Upside connection
- Front
- Downside connection
- Front
- [Ie] rated operational current
- AC-23A: 800 A AC 50/60 Hz 220/240 V; AC-23A: 800 A AC 50/60 Hz 380/415 V; AC-23A: 800 A AC 50/60 Hz 440/480 V; AC-23A: 800 A AC 50/60 Hz 500/525 V; AC-23A: 800 A AC 50/60 Hz 660/690 V
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz conforming to IEC 60947-3
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-3
- [Ith] conventional free air thermal current
- 800 A at 60 °C
- [Icw] rated short-time withstand current
- 25 kA during 0.5 s conforming to IEC 60947-3; 4 kA during 20 s conforming to IEC 60947-3
- [Icm] rated short-circuit making capacity
- 52 kA 690 V AC at 50/60 Hz
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-3
- Contact position indicator
- Yes
- Visible break
- No
- Mechanical durability
- 10000 cycles conforming to IEC 60947-3
- Electrical durability
- 2000 cycles 440 V AC 50/60 Hz conforming to IEC 60947-3
- Connection pitch
- 70 mm
- Height
- 280 mm
- Width
- 327 mm
- Depth
- 147 mm
- Product weight
- 18 kg
- Standards
- IEC 60947-3
- Product certifications
- IECEE CB Scheme
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to EN 50102
- Pollution degree
- 3 conforming to IEC 60947-3
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.0 cm
- Package 1 Width
- 1.0 cm
- Package 1 Length
- 2.0 cm
- Package 1 Weight
- 10.0 g
- Country of origin
- IT
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482238466
- SAP 1200663682
- Code 83099222
