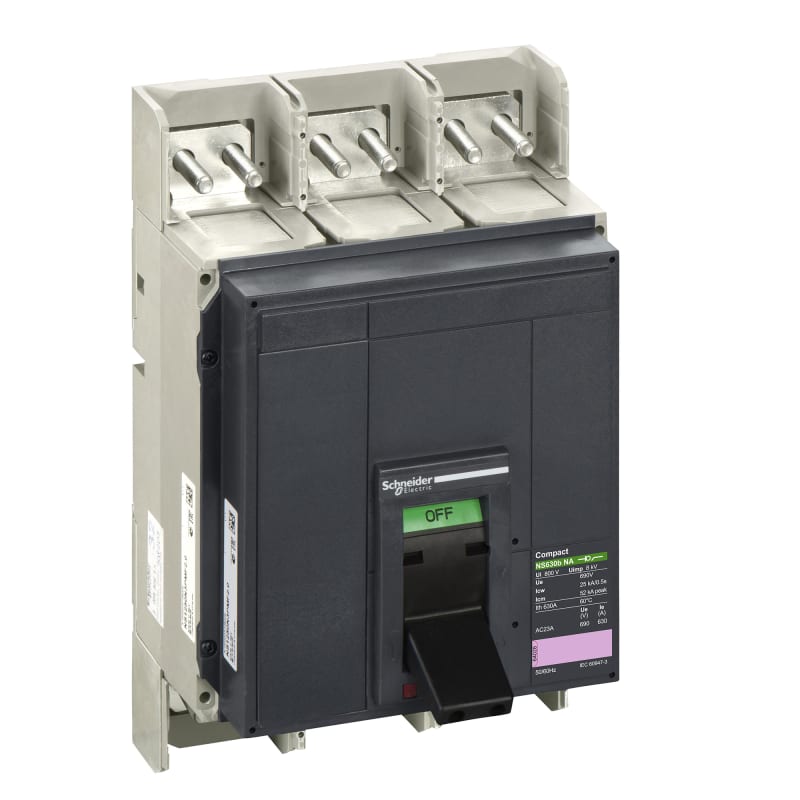

Schneider Electric circuit breaker basic frame, ComPact NS 800N, 50 kA at 415 VAC, 800 A, fixed, electrically operated, without trip unit, 3 P

Schneider Electric 33280 NS800 N 3P Motor operator.

Manufacturer part number (MPN)

33280

EAN / GTIN

3303430332800

Sales unit

pcs

Number of poles

3P

Range

ComPacT

Range of product

ComPacT NS630b...1600 new generation

Device short name

Compact NS800N

Product or component type

Basic frame

Device application

Distribution

[In] rated current

800 A at 50 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category B

Breaking capacity

50 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2; 30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

N 50 kA 415 V AC

Control type

Electrically operated

mounting mode

Fixed

[Ui] rated insulation voltage

1000 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

[Ics] rated service breaking capacity

37 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation); 37 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation); 37 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation); 30 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation); 22 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 (electrical operation)

[Icw] rated short-time withstand current

19.2 kA 1 s conforming to IEC 60947-2

Integral instant protection

40 kA

Mechanical durability

10000 cycles conforming to IEC 60947-2

Electrical durability

2000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2; 4000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 5000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2; 6000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2

Power losses

15 W

Mounting support

Backplate

Connection pitch

70 mm

Protection type

Without protection

Height (H)

224 mm

Width (W)

210 mm

Depth (D)

182 mm

Standards

IEC 60947-2

Product certifications

ASEFA; LCIE; ASTA

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60947

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to EN 50102

Ambient air temperature for storage

-50…85 °C

Ambient air temperature for operation

-25…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

25.0 cm

Package 1 Width

40.0 cm

Package 1 Length

40.0 cm

Package 1 Weight

20.708 kg

Country of origin

FR

Warranty (in months)

18

Rated permanent current Iu

800 A

With integrated under voltage release

No

Rated voltage

690 V

Power loss

45 W

Degree of protection (IP)

IP40

Position of connection for main current circuit

Front side

Motor drive integrated

Yes

Type of electrical connection of main circuit

Bolt connection

Type of control element

Push button

With switched-off indicator

Yes

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz

50 kA

Suitable for DIN rail (top hat rail) mounting

No

Integrated earth fault protection

No

Motor drive optional

No

Device construction

Built-in device fixed built-in technique

DIN rail (top hat rail) mounting optional

No

Complete device with protection unit

No

HS Code

8536.20
