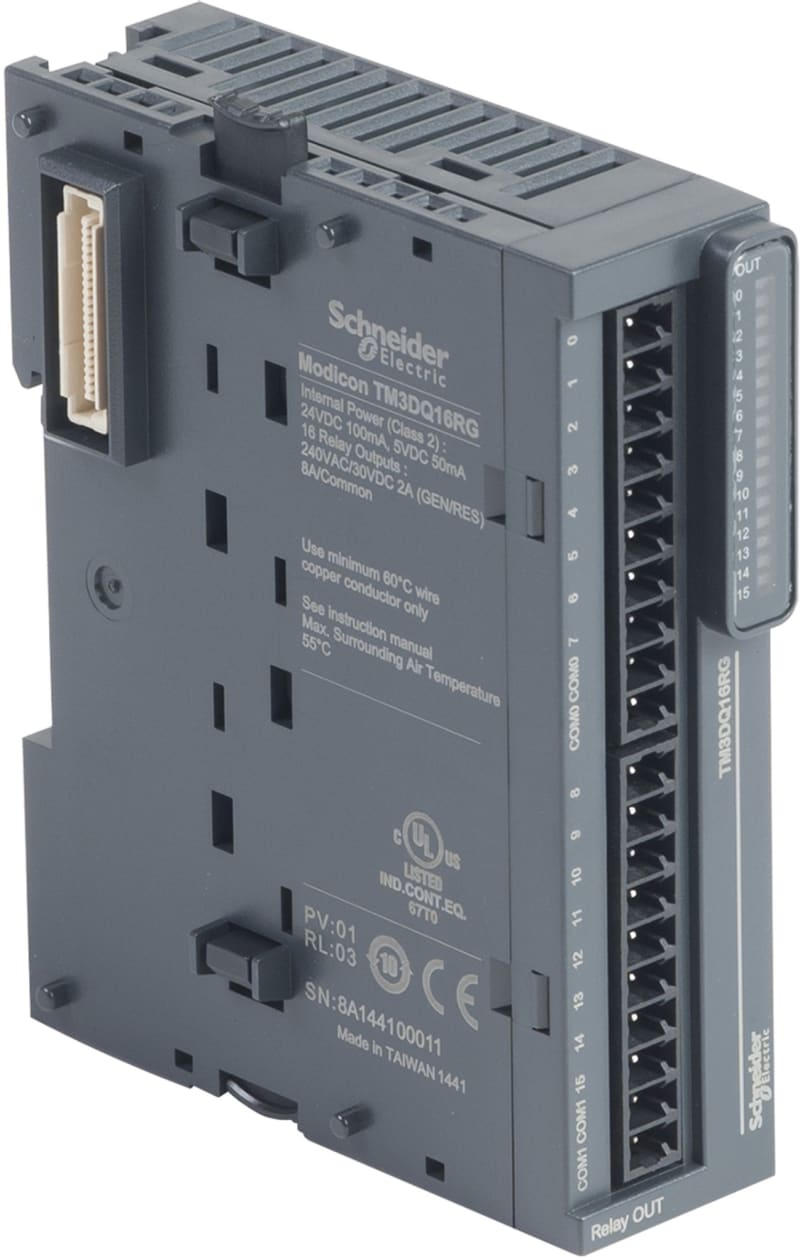

Schneider Electric Modicon TM3 - 16 relay outputs (spring) 24VDC TM3DQ16RG

Schneider Electric TM3DQ16RG Accessories Modicon PLS - IO extension - 16 relay outputs, spring terminal.

Manufacturer part number (MPN)

TM3DQ16RG EAN / GTIN: 3606480611452 HS code: 8536.90 Sales unit: pcs Package quantity: 42 pcs Range of product: Modicon TM3 Product or component type: Discrete output module Range compatibility: Modicon M241; Modicon M251; Modicon M221; Modicon M262 Device application: Industrial application Discrete output number: 16 Discrete output logic: Positive or negative Discrete output voltage: 240 V AC for relay outputs; 30 V DC for relay outputs Discrete output current: 2000 mA relay output minimum switching current: 10 mA 5 V DC Response time on output: <= 10 ms maximum (turn on); <= 5 ms maximum (turn off) Mechanical durability: 20000000 cycles Safety reliability data: MTBF = 130 years 40 °C Power supply type: Electronic powered by internal bus Typical current consumption: 37 mA at 5 V DC; 5 mA Electrical connection: 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for outputs Maximum cable distance between devices: Unshielded cable: <30 m for relay output Isolation between channels and bus: 500 V AC Local signalling: 1 LED per channel (green) for output status Housing colour: Grey AWG gauge: 0.14…1.5 mm² / 26 AWG...16 AWG with solid cable Mounting support: Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit Height: 90 mm Width: 27.4 mm Depth: 84.6 mm Product weight: 0.145 kg IP degree of protection: IP20 Protective treatment: None Marking: CE Product certifications: CE; CULus; UKCA; RCM; EAC; CULus HazLoc Standards: IEC 61131-2 Ambient air temperature for operation: -10…35 °C (vertical installation); -10…55 °C (horizontal installation) Ambient air temperature for storage: -25…70 °C Relative humidity: 10…95 % without condensation for operation; 10…95 % without condensation for storage Operating altitude: 0...2000 m Pollution degree: 2 Vibration resistance: 3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on panel mounting; 3 gn (f = 8.4…150 Hz) on panel mounting Shock resistance: 15 gn for 11 ms Number of Units in Package 1: 1 Number of Units in Package 2: 42 Number of Units in Package 3: 504 Country of origin: TW Warranty (in months): 18

HS Code

8536.90

• EAN 3606480611452
• SAP 1000506837
• Code 8624106
