Tesys U AS-In Module 62 Adresser

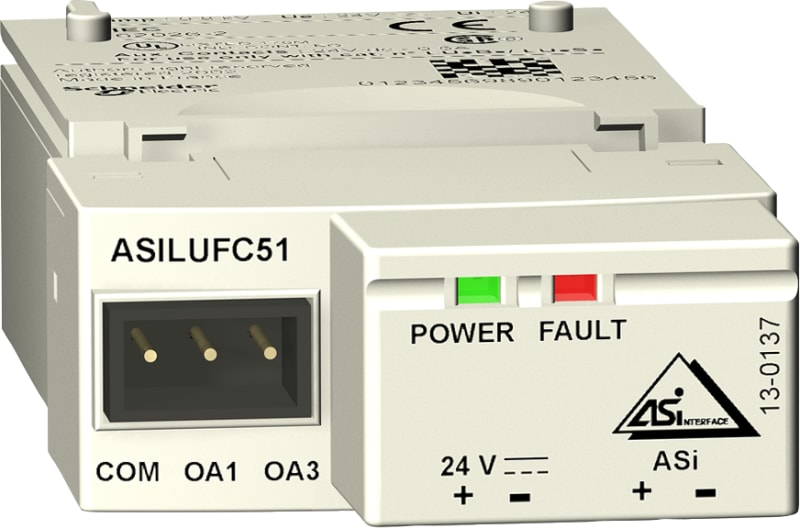

Schneider Electric ASILUFC51 Communication Module for TeSys U, AS-in.

Manufacturer part number (MPN)

ASILUFC51

EAN / GTIN

3389110745092

Sales unit

pcs

Package quantity

60 pcs

Range

TeSys

Device short name

ASILUL

Product or component type

Communication module

Product compatibility

LUCB; LUCM; LUCD; LUCA; LUCL; LUCC

Device application

Communication

Range compatibility

TeSys TeSys U LUB non reversing power base; TeSys TeSys U LU2B reversing power base

main function available

Communication module

mounting mode

Plug-in

Mounting location

Front side

Physical interface

7.A.7.E

Bus type

AS-Interface

Addressing

62 slaves

Return time

10 ms

Current consumption

200 mA at 24 V output; 25 mA normal operation; 30 mA fault condition

Number of outputs

2 dedicated to starter-controller coil operation

Local signalling

2 LEDs front panel

Connection pitch

3.81 mm output; 5.08 mm input

Connections - terminals

Input: screw clamp terminals 1 cable(s) 0.2…1.5 mm²flexible without cable end; Input: screw clamp terminals 1 cable(s) 0.2…1.5 mm²rigid without cable end; Input: screw clamp terminals 1 cable(s) 0.25…1.5 mm²flexible with cable end; Input: screw clamp terminals 2 cable(s) 0.2…1 mm²flexible without cable end; Input: screw clamp terminals 2 cable(s) 0.2…1 mm²rigid without cable end; Input: screw clamp terminals 2 cable(s) 0.25…1 mm²flexible with cable end; Input: screw clamp terminals 2 cable(s) 0.5…1 mm²flexible with cable end; Output: screw clamp terminals 1 cable(s) 0.14…1 mm²flexible without cable end; Output: screw clamp terminals 1 cable(s) 0.14…1 mm²rigid without cable end; Output: screw clamp terminals 1 cable(s) 0.25…0.5 mm²flexible with cable end; Output: screw clamp terminals 1 cable(s) 0.25…1 mm²flexible with cable end; Output: screw clamp terminals 2 cable(s) 0.14…0.5 mm²rigid without cable end; Output: screw clamp terminals 2 cable(s) 0.14…0.75 mm²flexible without cable end; Output: screw clamp terminals 2 cable(s) 0.25…0.34 mm²flexible with cable end; Output: screw clamp terminals 2 cable(s) 0.5 mm²flexible with cable end

Tightening torque

Input: 0.5…0.6 N.m3.5 mm; Output: 0.2…0.25 N.m2.5 mm

Product certifications

AS-Interface V2.1 No 52303

Ambient air temperature for operation

-25…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.8 cm

Package 1 Width

9.4 cm

Package 1 Length

3.3 cm

Package 1 Weight

59.0 g

Unit Type of Package 2

S02

Number of Units in Package 2

60

Package 2 Height

15.0 cm

Package 2 Width

30.0 cm

Package 2 Length

40.0 cm

Package 2 Weight

3.794 kg

Country of origin

FR

Warranty (in months)

18

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

Yes

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard eGPRS

No

Radio standard GSM

No

Radio standard LTE

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

No

Degree of protection (IP)

IP20

With potential separation

No

Fieldbus connection over separate bus coupler possible

No

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Front built-in possible

Yes

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

45 mm

Height

32 mm

Depth

88 mm

HS Code

8536.20
