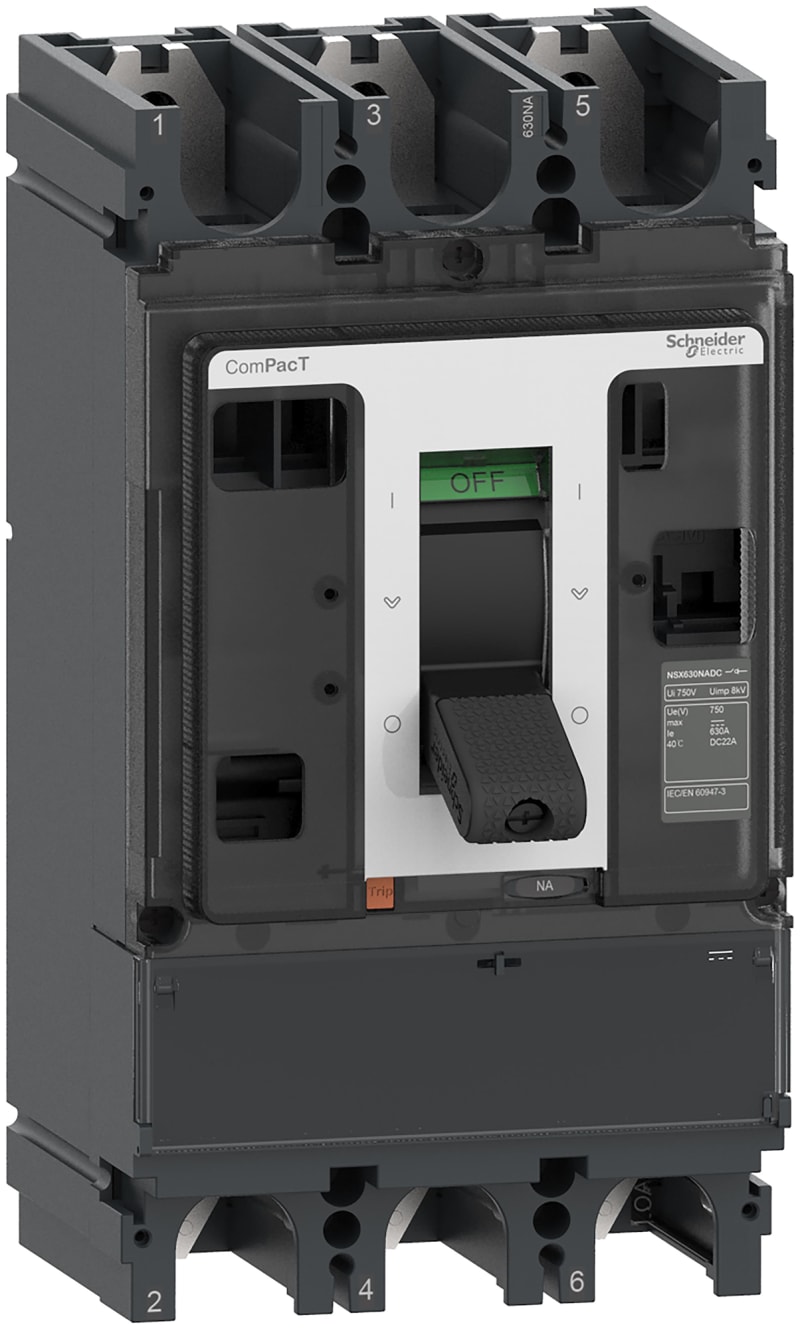

Schneider Electric switch disconnector ComPacT NSX400...630NA, DC, 400 A rating, 3 poles C403400DS

Schneider Electric C403400DS Load-break switch ComPacT NSX400 NA DC 3p-750VDC-400A.

Manufacturer part number (MPN)

C403400DS

EAN / GTIN

3606482003514

HS code

8536.90

Sales unit

pcs

Range

ComPacT

Product name

ComPacT NSX DC

Device short name

NSX400NA DC

Product or component type

Switch disconnector

Device application

Distribution

Poles description

3P

[Ith] conventional free air thermal current

400 A at 40 °C

[Ie] rated operational current

DC-22A: 400 A DC 750 V

[Ue] rated operational voltage

750 V DC

Network type

DC

Suitability for isolation

Yes conforming to EN/IEC 60947-3

Utilisation category

DC-22A

Breaking capacity code

NA

Contact position indicator

Yes

Visible break

No

mounting mode

Fixed

[Icw] rated short-time withstand current

7.5 kA during 1 s

[Icm] rated short-circuit making capacity

7.5 kA switch-disconnector alone

Control type

Toggle

[Ui] rated insulation voltage

750 V DC

[Uimp] rated impulse withstand voltage

8 kV

Mounting support

Backplate

Upside connection

Front

Downside connection

Front

Connection pitch

45 mm

Mechanical durability

5000 cycles

Electrical durability

1000 cycles 750 V DC In

Width (W)

140 mm

Height (H)

255 mm

Depth (D)

110 mm

Product weight

6 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-3

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60664-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

3

Number of Units in Package 3

12

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90
