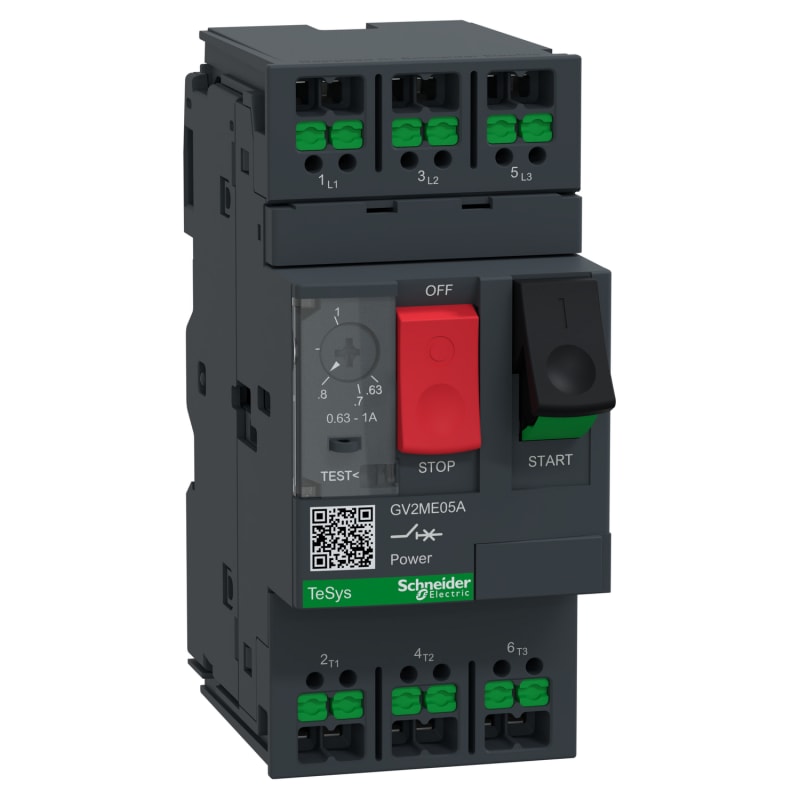

Schneider Electric Motor circuit breaker, TeSys Deca, 3P, AC-3/AC-3E, 0.63 to 1A, thermal magnetic, snap-in terminals, push button GV2ME05A

Schneider Electric GV2ME05A — TeSys motor protection circuit breaker. Manual motor starter with thermal and magnetic protection. Motor protection circuit breaker, TeSys Deca, 3P, AC-3/AC-3e, 0,63 for 1A, thermal-magnetic, Snap-In, push-button.

Manufacturer part number (MPN)

GV2ME05A

EAN / GTIN

3606487541820

HS code

8536.90

Sales unit

pcs

Package quantity

20 pcs

Rated current

1 A

Range

TeSys Deca

Product name

TeSys GV2

Product or component type

Motor circuit breaker

Device short name

GV2ME

Device application

Motor protection

Trip unit technology

Thermal-magnetic

Poles description

3P

Network type

AC

Utilisation category

Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1; AC-3e conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-2

Motor power kW

0.25 kW at 400/415 V AC 50/60 Hz; 0.55 kW at 690 V AC 50/60 Hz

Breaking capacity

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

Control type

Push-button

[In] rated current

1 A

Thermal protection adjustment range

0.63…1 A conforming to IEC 60947-2

Magnetic tripping current

15.1 A

[Ith] conventional free air thermal current

1 A conforming to IEC 60947-2

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-2

Phase failure sensitivity

Yes conforming to IEC 60947-4-1

Suitability for isolation

Yes conforming to IEC 60947-1

Power dissipation per pole

2.5 W

Mechanical durability

100000 cycles

Electrical durability

100000 cycles for AC-3 at 415 V In; 100000 cycles for AC-3e at 415 V In

Rated duty

Uninterrupted conforming to IEC 60947-4-1

Connections - terminals

Power circuit: snap-in terminal 2 cable(s) 0.5…2.5 mm² - solid; Power circuit: snap-in terminal 2 cable(s) 0.5…4 mm² - flexible without cable end; Power circuit: snap-in terminal 2 cable(s) 0.5…2.5 mm² - flexible with cable end; Power circuit: snap-in terminal 2 cable(s) (20 AWG...12 AWG) - solid; Power circuit: snap-in terminal 2 cable(s) (20 AWG...10 AWG) - stranded

Fixing mode

35 mm symmetrical DIN rail: clipped; Panel: screwed (with adaptor plate)

Mounting position

Horizontal; Vertical

Width

45 mm

Height

101 mm

Depth

78.5 mm

Product weight

258 g

Colour

Dark grey

Standards

EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-2-40:Annex JJ; IEC/EN 60335-1:Clause 30.2

Product certifications

CB Scheme; CE; UKCA; CCC; cULus

IK degree of protection

IK04

IP degree of protection

IP20 conforming to IEC 60529 (on front face)

Climatic withstand

conforming to IACS E10

Ambient air temperature for storage

-40…80 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Ambient air temperature for operation

-20…60 °C

Mechanical robustness

Shocks: 30 Gn for 11 ms; Vibrations: 5 Gn, 5...150 Hz

Operating altitude

<= 2000 m

Warranty (in months)

18

HS Code

8536.90
