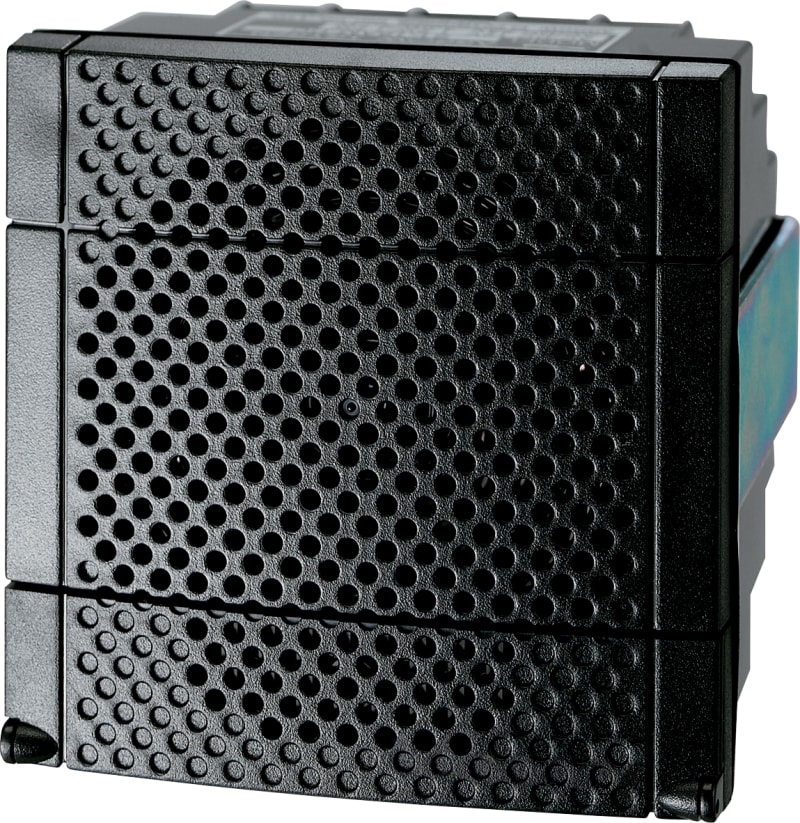

Schneider Electric electronic alarm - 16 tones - 0..96 dB - PNP output - white - IP54 XVS96BMWP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVS96BMWP E.al. 96dB PNP 12/24V DIN96 hv.
Technical Specifications
- Manufacturer part number (MPN)
- XVS96BMWP
- EAN / GTIN
- 3606480072000
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Voltage
- 12/24 V
- Range of product
- Harmony XVS
- Product or component type
- Electronic alarm
- Device short name
- XVS
- Colour
- White
- Material
- PC (polycarbonate): terminal cover; PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene): body
- Marking
- CE
- Overvoltage category
- Class II conforming to IEC 61140
- Mounting support
- 96 mm DIN rail
- [Us] rated supply voltage
- 12...24 V DC
- [Uimp] rated impulse withstand voltage
- 0.8 kV
- Current consumption
- 250 mA at 12 V; 292 mA at 12 V; 292 mA at 24 V; 354 mA at 24 V
- Clamping connection capacity
- <= 1 x 1.5 mm²
- Width
- 96 mm
- Height
- 96 mm
- Depth
- 58.1 mm
- Product weight
- 0.4 kg
- Discrete output type
- PNP
- Signalling type
- 16 tones alarm
- Standards
- IEC 60947-5-1; IEC 60947-1
- Protective treatment
- TC
- Ambient air temperature for storage
- -35…70 °C
- Ambient air temperature for operation
- -20…50 °C
- IP degree of protection
- Panel mounted: IP54 conforming to IEC 60529
- Noise level
- 0…96 dB (continuous or intermittent tone) at 1 m
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Warranty (in months)
- 18
- Nominal voltage
- 24 V
- Mounting method
- Surface mounting
- Power
- 3.5 W
- Housing colour
- White
- Type of current
- DC
- Loudness
- 96 dB
- Electricity consumption
- 0.354 A
- Type of acoustic signal
- Programmable
- Degree of protection (IP)
- IP54
- For Ex-zone gas
- None
- Suitable for wall mounting
- No
- For Ex-zone dust
- None
- Type of acoustic signal device
- Sound generator
- Power consumption in standby mode
- 3.5 W
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480072000
- SAP 1000707739
- Code 8428163
Product Documentation
