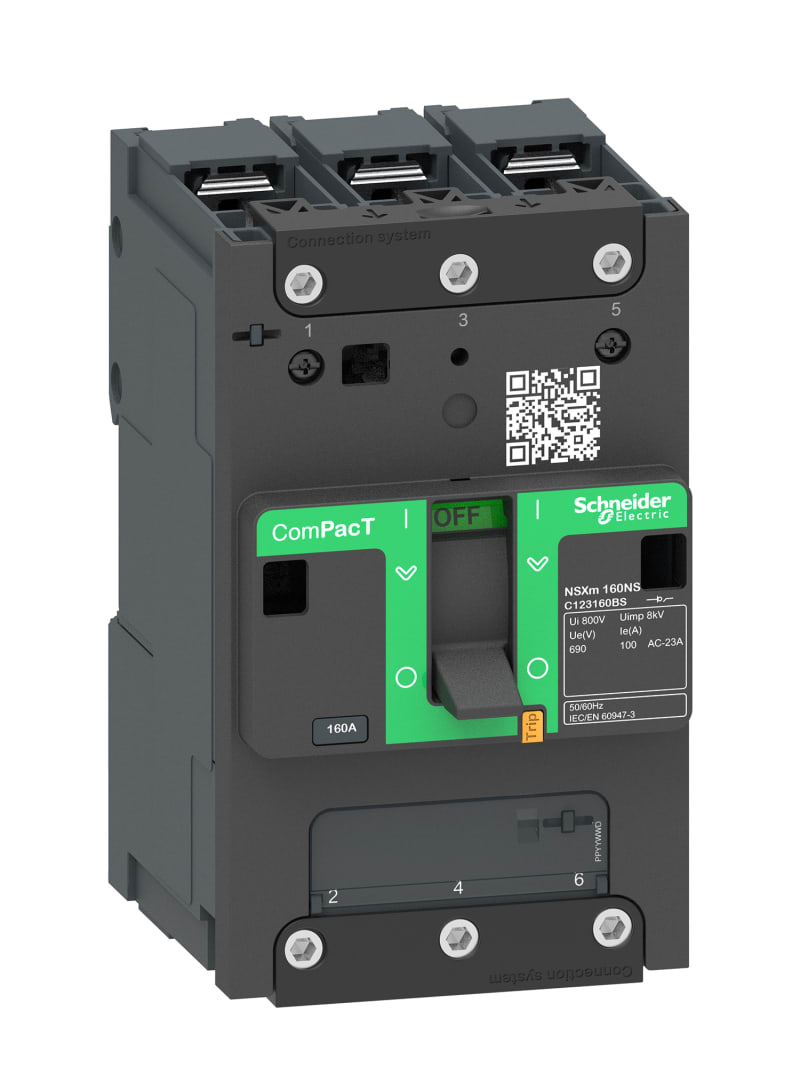

Schneider Electric Switch disconnector, ComPacT NSXm 160NA, 3 poles, thermal current Ith 160A, compression lugs and busbar connectors C123160BS

Schneider Electric C123160BS Load-break switch ComPacT NSXm 160A 3p bolt.

Manufacturer part number (MPN)

C123160BS

EAN / GTIN

3606481995131

HS code

8536.90

Sales unit

pcs

Rated current

160 A

Range

ComPacT

Product name

ComPacT NSXm

Device short name

NSXm 160NA

Product or component type

Switch disconnector

Device application

Distribution

Poles description

3P

[Ith] conventional free air thermal current

160 A at 40 °C

[Ie] rated operational current

AC-23: 100 A AC 50/60 Hz; AC-22: 160 A AC 50/60 Hz

[Ue] rated operational voltage

440 V AC 50/60 Hz

Network type

AC

Suitability for isolation

Yes conforming to EN/IEC 60947-3

Utilisation category

AC-22A; AC-23A

Breaking capacity code

NA

Contact position indicator

Yes

Visible break

No

mounting mode

Fixed

[Icw] rated short-time withstand current

1500 A during 1 s; 1500 A during 3 s; 335 A during 20 s

[Icm] rated short-circuit making capacity

2.13 kA switch-disconnector alone; 150 kA with upstream protection circuit breaker

Control type

Toggle

[Ui] rated insulation voltage

800 V

[Uimp] rated impulse withstand voltage

8 kV

Mounting support

35 mm symmetrical DIN rail; Backplate

Connection pitch

27 mm

Connections - terminals

1 crimp lug wire size 2.5…120 mm², rigid or stranded aluminium/copper; 1 crimp lug wire size 2.5…95 mm², flexible aluminium/copper; bars

Mechanical durability

20000 cycles

Electrical durability

AC-22A: 20000 cycles 440 V AC 50/60 Hz Ie/2; AC-23A: 20000 cycles 440 V AC 50/60 Hz Ie/2; AC-22A: 10000 cycles 440 V AC 50/60 Hz Ie; AC-23A: 10000 cycles 440 V AC 50/60 Hz Ie

Width (W)

81 mm

Height (H)

137 mm

Depth (D)

80 mm

Product weight

1.06 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-3

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60664-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

9

Number of Units in Package 3

72

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481995131
• SAP 1200534692
• Code 82688299
