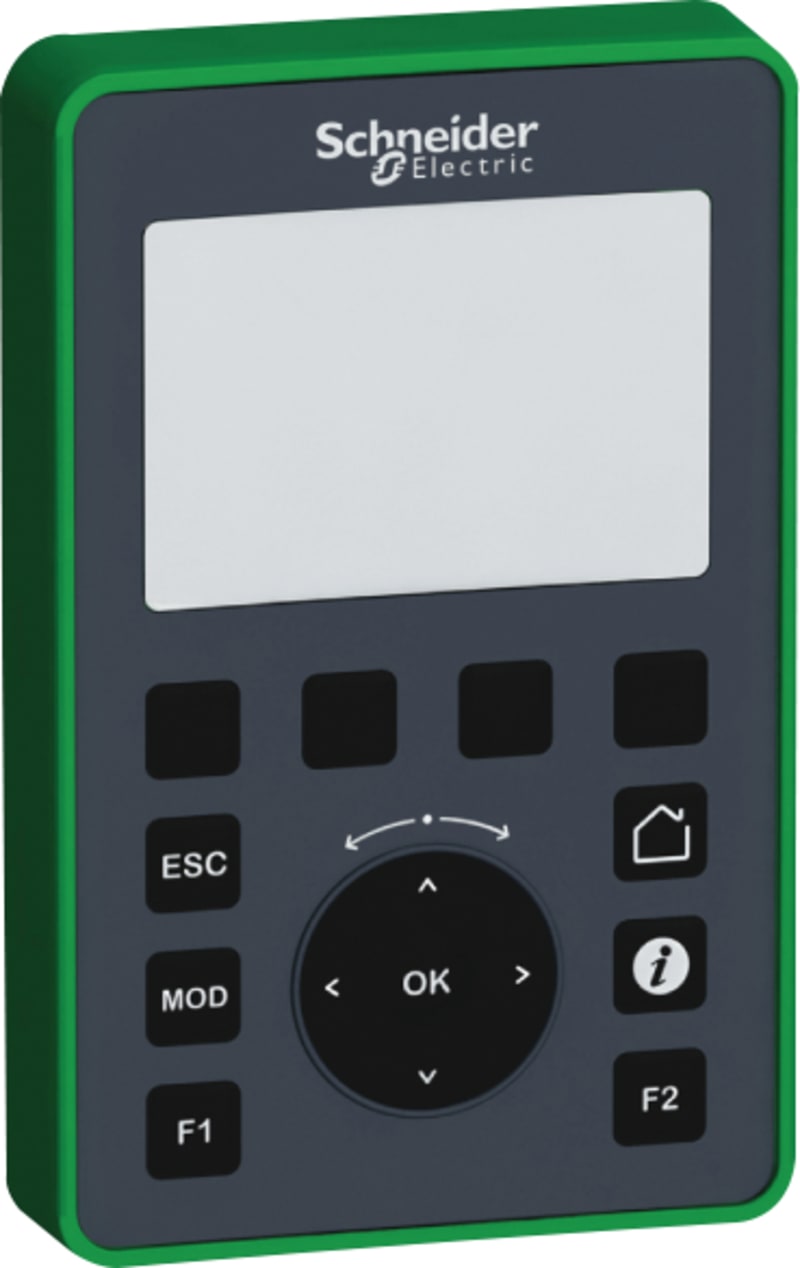

Schneider Electric graphic display unit - 240 x 160 pixels TMH2GDB

Schneider Electric TMH2GDB Display unit 240x160px.

Manufacturer part number (MPN)

TMH2GDB

EAN / GTIN

3606480752216

Sales unit

pcs

Package quantity

12 pcs

Range of product

Modicon M221

Product or component type

Graphic display

Range compatibility

Modicon M221

Current consumption

40 mA at 5 V DC via RJ45 connector

Power consumption in W

1 W

Display type

Backlit colour STN LCD

Display colour

Monochrome

Display resolution

240 x 160 pixels

Number of key

4 configurable; 6 for navigation

Standards

IEC 61131-2; IEC 61010-2-201

Product certifications

cULus

Marking

CE

Mounting location

Front cabinet diameter: 22 mm hole; Bottom of cabinet diameter: 22 mm hole, connection via mounting accessory

Connector type

RJ45 for communication and power supply

Height

126 mm

Width

80 mm

Depth

63 mm

Product weight

0.17 kg

Ambient air temperature for operation

-15…50 °C

Operating altitude

0...2000 m

Storage altitude

0…2000 m

Environmental characteristic

Corrosive gas free

Relative humidity

95 %, non-condensing (transport); 95 %, non-condensing (storage); 95 %, non-condensing (operation)

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP65 front face: ; IP20 back part:

Pollution degree

2 conforming to IEC 60664-1

Vibration resistance

1.5 mm (f= 3…150 Hz); 2 gn

Shock resistance

15 gn for 11 ms

Electromagnetic compatibility

Electrostatic discharge - test level: 8 kV (air discharge) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 4 kV (contact discharge) conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m (80 MHz...1 GHz) conforming to IEC 61000-4-3; Radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m (1.4...2 GHz) conforming to IEC 61000-4-3; Radiated radio-frequency electromagnetic field immunity test - test level: 1 V/m (2...3 GHz) conforming to IEC 61000-4-3; Magnetic field at power frequency - test level: 30 A/m (50/60 Hz) conforming to IEC 61000-4-8; Electrical fast transient/burst immunity test - test level: 1 kV conforming to IEC 61000-4-4; Surge immunity test - test level: 0.5 kV (common mode) conforming to IEC 61000-4-5; Surge immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5; Conducted RF disturbances - test level: 10 Vrms (0.15...80 MHz) conforming to IEC 61000-4-6; Disturbing field emission - test level: 10...150 kHz (power lines (DC)) conforming to IEC 55011; Disturbing field emission - test level: 120...69 dBµV/m QP (power lines (DC)) conforming to IEC 55011; Disturbing field emission - test level: 150...1500 kHz (power lines (DC)) conforming to IEC 55011; Disturbing field emission - test level: 1.5...30 kHz (power lines (DC)) conforming to IEC 55011; Disturbing field emission - test level: 30...230 MHz class A (10 m) conforming to IEC 55011; Disturbing field emission - test level: 230 MHz...1 GHZ class A (10 m) conforming to IEC 55011; Disturbing field emission - test level: 79...63 dBμV/m QP (power lines (DC)) conforming to IEC 55011; Disturbing field emission - test level: 63 dBμV/m QP (power lines (DC)) conforming to IEC 55011; Disturbing field emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011; Disturbing field emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011

Number of Units in Package 1

1

Number of Units in Package 2

12

Country of origin

ID

Warranty (in months)

18

Power consumption

1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Number of HW-interfaces other

1

With SW interfaces

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

STN

Colour display

No

Number of colours of the display

1

Screen diagonal

2.75 inch

Number of pixels, horizontal

240

Number of pixels, vertical

160

With numeric keyboard

No

With alpha numeric keyboard

No

Number of function buttons, programmable

4

Number of system buttons

6

Touch technology

None

With touch screen

No

With message indication

Yes

With message system (incl. buffer and confirmation)

Yes

Process value representation (output) possible

No

Process default value (input) possible

No

With recipes

No

Number of password levels

1

With printer output

No

Number of online languages

6

Additional software components, loadable

Yes

Degree of protection (IP), front side

IP65/IP67

Suitable for rail mounting

Yes

Wall mounting/direct mounting

Yes

Suitable for safety functions

No

Width of the front

126 mm

Height of the front

80 mm

Built-in depth

63 mm

HS Code

8537.10

• EAN 3606480752216
• SAP 1000679115
• Code 8381822
