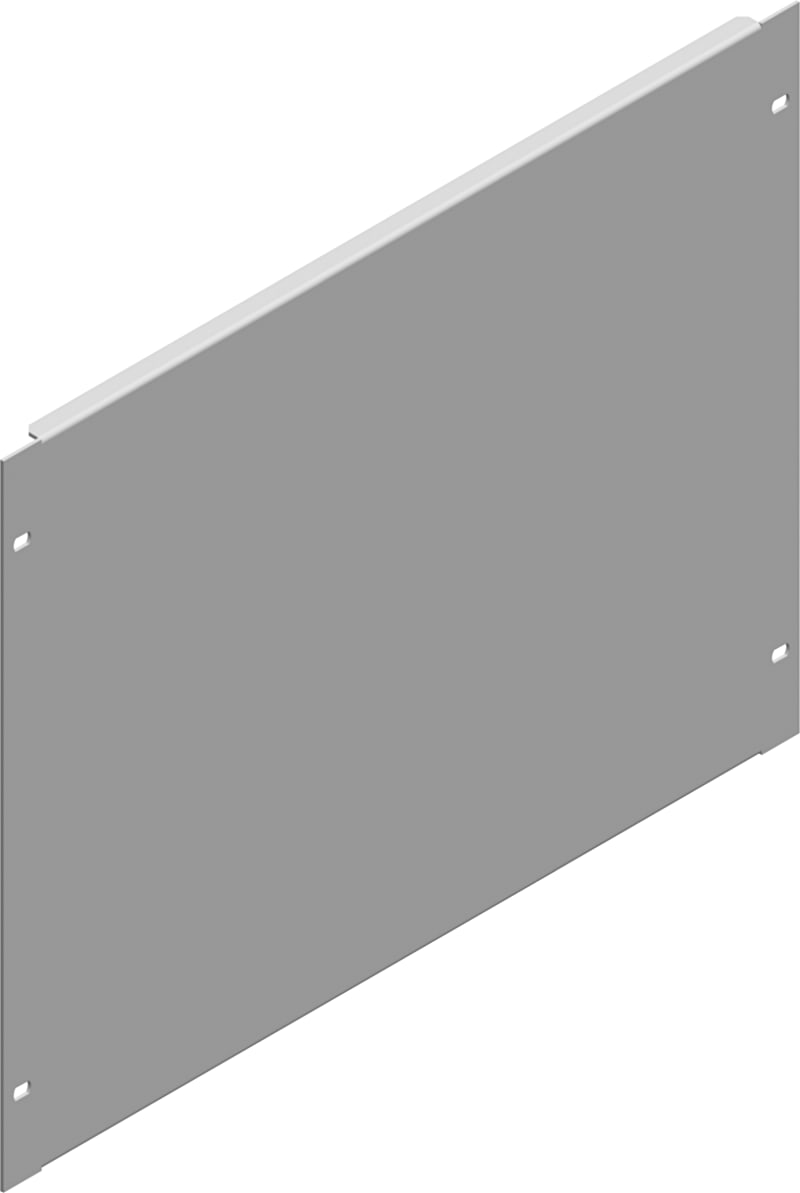

Modular blank plate (NSYMPC206)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMPC206 Modular Blank plate.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMPC206
- EAN / GTIN
- 3606480065873
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Cover plate
- Anwendung
- Multi-purpose
- Range compatibility
- PanelSeT SF SF; PanelSeT SM
- Nominal dimensions of the housing
- - H: 200 mm W: 600 mm
- Mounting location
- On chassis coupling set
- Device composition
- fixing elements; 1 cover plate
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws
- Type of front plate
- Plain
- Height
- Nominal: 200 mm; Real: 199.5 mm
- Width
- Nominal: 600 mm; Fixing centers: 478 mm; Real: 502 mm
- Depth
- Real : 12 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 50.500 cm
- Package 1 Width
- 20.000 cm
- Package 1 Length
- 1.500 cm
- Package 1 Weight
- 1.737 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 200
- Package 2 Height
- 45.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 359.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Cover
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480065873
- SAP 1000089232
- Code 8581571
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys GV4 - thermal magnetic multifunction circuit breaker - 115A 3P - comp. lug GV4PEM115N6
Schneider Electric
M340 USB Cable, 4.5M
BMXXCAUSBH045
Schneider Electric
Linjedetektor AA 8-50 with controller
FFS06725273
Schneider Electric
Bakelite Mounting Plate for PLA 510 Enclosure
NSYPMB510
Schneider Electric
M340 Memory card NOE WEB C, 16MB
BMXRWSC016M
Schneider Electric

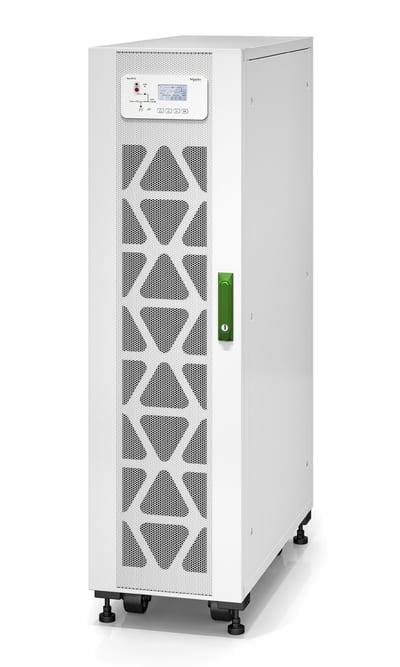

Schneider Electric Easy UPS 3S 20 kVA 400V 3:1 UPS, 2 internal 7AH modular battery strings, expandable to 3 E3SUPS20K3IB1
Schneider Electric
Schneider Electric Mureva lights, Floodlight 150W, IP65 230V IMT47222
Schneider Electric
Schneider Electric Key switch selector, Harmony XB4, metal, black, 22mm, key 455, 2 pos, stay put, key release left right, 1 NO, push in XB4BG415
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYMPC206?
- NSYMPC206 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYMPC206.
- What is the HS code for NSYMPC206?
- The customs tariff (HS) code for NSYMPC206 is 7326.90.
- Who manufactures NSYMPC206?
- NSYMPC206 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYMPC206?
- Yes — the NSYMPC206 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYMPC206?
- The minimum order quantity is 1.
- Is NSYMPC206 available?
- Yes — NSYMPC206 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
