Bakelite Mounting Plate for PLA 510 Enclosure
Pricing
Request a quote
We reply within 24 hours
Product Description

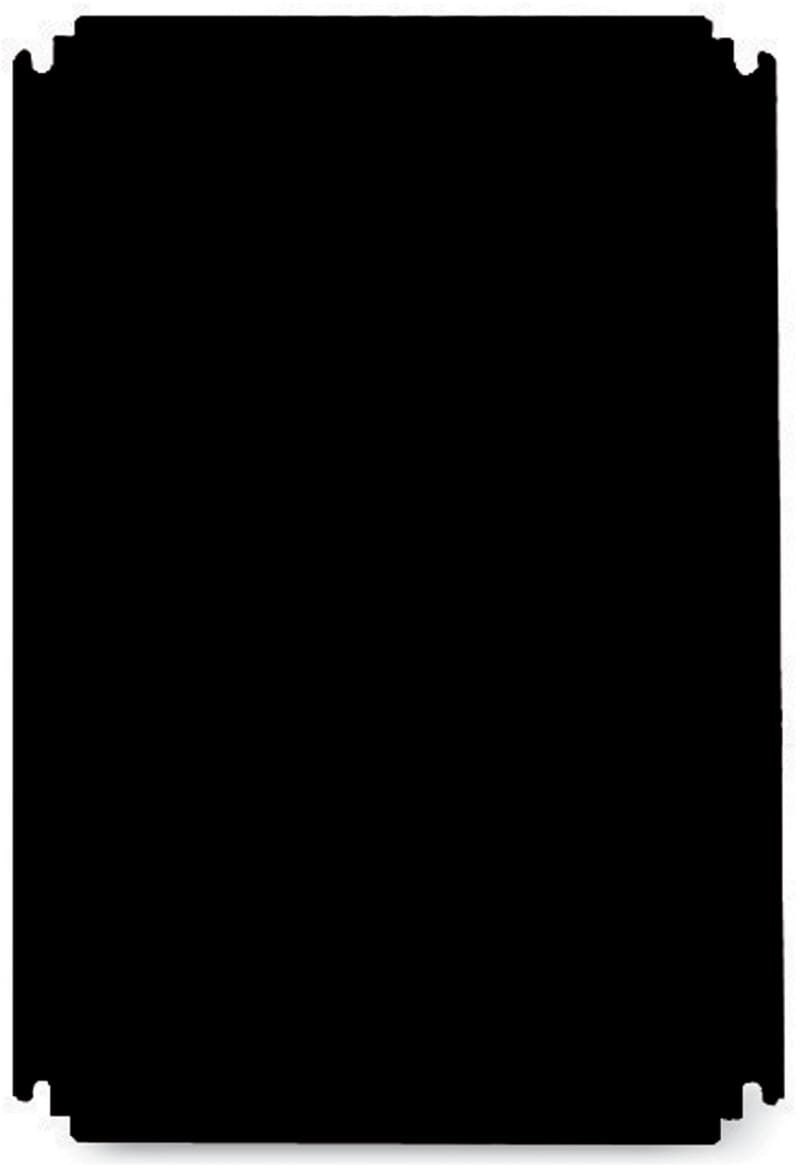

Schneider Electric NSYPMB510 bakelite (insulating) mounting plate for Thalassa PLA 510 polyester enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPMB510
- EAN / GTIN
- 3606480194115
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Back inserts; Step slide
- Mounting plate description
- Insulating
- Range compatibility
- PanelSeT PLA PLA
- Device composition
- 1 mounting plate
- Material
- Bakelite
- Colour
- Black (RAL 9005)
- Fixing mode
- By screws - screw type M8 - on back inserts location
- Permanent permissible load
- 150 kg
- Height
- Nominal: 500 mm; Real: 390 mm
- Width
- Nominal: 1000 mm; Real: 875 mm
- Depth
- Real : 125 mm
- thickness
- 5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.700 cm
- Package 1 Width
- 40.500 cm
- Package 1 Length
- 88.000 cm
- Package 1 Weight
- 2.446 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Untreated
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480194115
- SAP 1000318036
- Code 8343174
