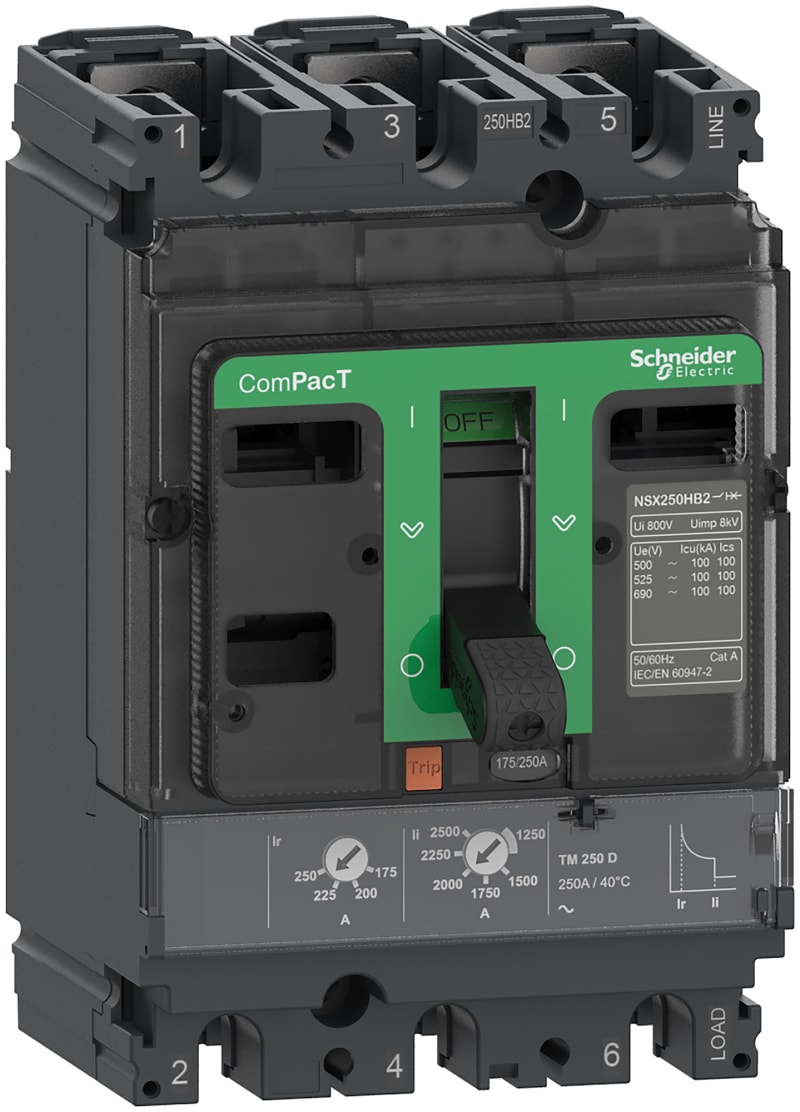

Schneider Electric Circuit breaker, ComPacT NSX250HB2, 100KA/690VAC, 3 poles, TMD trip unit 125A C25W3TM125

Schneider Electric C25W3TM125 Circuit breaker ComPacT NSX with thermomagnetic protection NSX250HB2-TM125D 3P3T 125A 100kA/690VAC.

Manufacturer part number (MPN)

C25W3TM125

EAN / GTIN

3606482002159

HS code

8536.90

Sales unit

pcs

Trip unit

TM125D

Range

ComPacT

Product name

ComPacT NSX

Device short name

NSX250HB2

Product or component type

Circuit breaker

Device application

Distribution

Poles description

3P

Protected poles description

3D

[In] rated current

125 A at 40 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Suitability for isolation

Yes conforming to EN/IEC 60947-2

Utilisation category

Category A

Breaking capacity

100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Breaking capacity code

HB2 100 kA 690 V AC

Trip unit name

TM-D

Trip unit technology

Thermal-magnetic

Trip unit protection functions

LI

Control type

Toggle

Circuit breaker mounting mode

Fixed

[Ui] rated insulation voltage

800 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ics] rated service breaking capacity

100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2

Mechanical durability

20000 cycles

Electrical durability

20000 cycles at 440 V In/2; 10000 cycles at 440 V In; 10000 cycles at 690 V In/2; 5000 cycles at 690 V In

Power dissipation per pole

9.45 W

Mounting support

Backplate

Mounting position

Horizontal and vertical; Flat on the back

Upside connection

Front

Downside connection

Front

Connection pitch

35 mm

Protection type

L : for overload protection (thermal); I : for short-circuit protection (magnetic)

Trip unit rating

125 A at 40 °C

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable

[Ir] long-time protection pick-up adjustment range

0.7...1 x In

Long-time protection delay adjustment type tr

Fixed

[tr] long-time delay adjustment range

120…400 s at 1.5 x In; 15 s at 6 x Ir

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

1250 A

Earth-leakage protection

Without

Number of slots

5 slot(s)

Width (W)

105 mm

Height (H)

161 mm

Depth (D)

86 mm

Product weight

2.4 kg

Standards

EN/IEC 60947-2

Overvoltage category

III

Electrical shock protection class

Class II on front face

Pollution degree

3 conforming to IEC 60664-1

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Relative humidity

0…95 %

Operating altitude

0...2000 m without derating; 2000 m...5000 m with derating

Warranty (in months)

18

HS Code

8536.90
