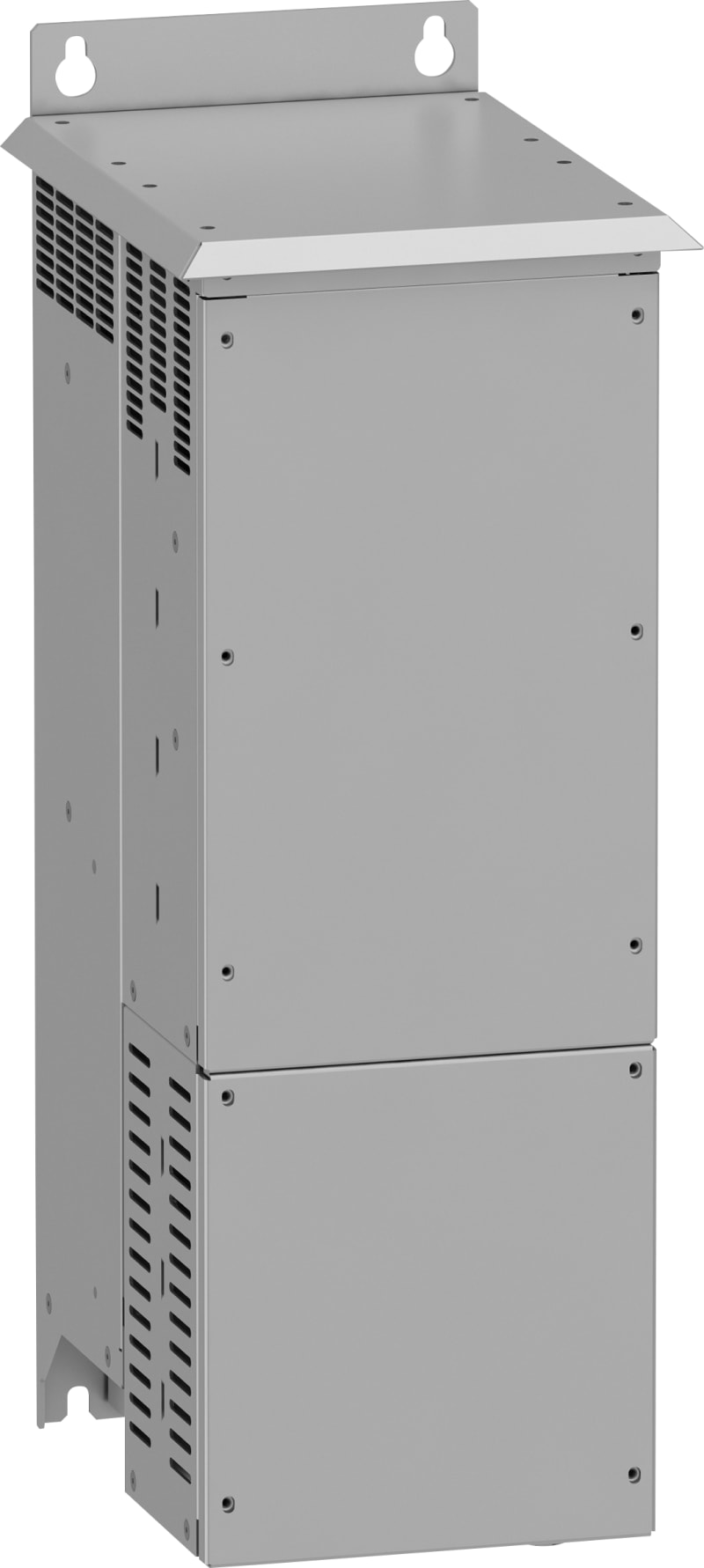

Bremsemodstand 400V 100kW

Schneider Electric VW3A7105 Bremsemodul 400V 100kW.

Manufacturer part number (MPN)

VW3A7105 EAN / GTIN: 3606485435824 Sales unit: pcs Voltage: 400 V Power: 100 kW Range compatibility: Altivar Process ATV900 Product compatibility: Variable speed drive ATV930 without braking chopper 110 kW 380...480 V; Variable speed drive ATV930 without braking chopper 130 kW 380...480 V; Variable speed drive ATV930 without braking chopper 160 kW 380...480 V Thermal losses: 400 W minimum resistor value to associate: 2.5 Ohm Protection type: Integrated thermal protection by thermal probe Maximum braking power: 160 kW Permanent braking power: 100 kW (at constant power and at engage threshold) Load factor: 0.05 for 320 kW at constant power and at engage threshold; 0.15 for 250 kW at constant power and at engage threshold; 0.5 for 200 kW at constant power and at engage threshold; 1 for 160 kW at constant power and at engage threshold Activation threshold: 780 V DC +/- 1 % Maximum DC bus voltage: 850 V Width: 216 mm Height: 658 mm Depth: 303 mm Product weight: 17 kg Volume of cooling air: 166 m3/h Operating position: Vertical +/- 10 degree Mechanical robustness: Vibrations class 3M4 conforming to IEC 60721-3-3 IP degree of protection: IP20; IP21 (on top) Operating altitude: <= 1000 m without derating; 1000...4000 m with current derating 1 % per 100 m Ambient air temperature for operation: -10…50 °C Ambient air temperature for storage: -40…70 °C Country of origin: CN Warranty (in months): 18 Type of accessory/spare part: Breaking unit Accessory: Yes Spare part: No

HS Code

8533.29

• EAN 3606485435824
• SAP 1200020027
• Code 81392603
