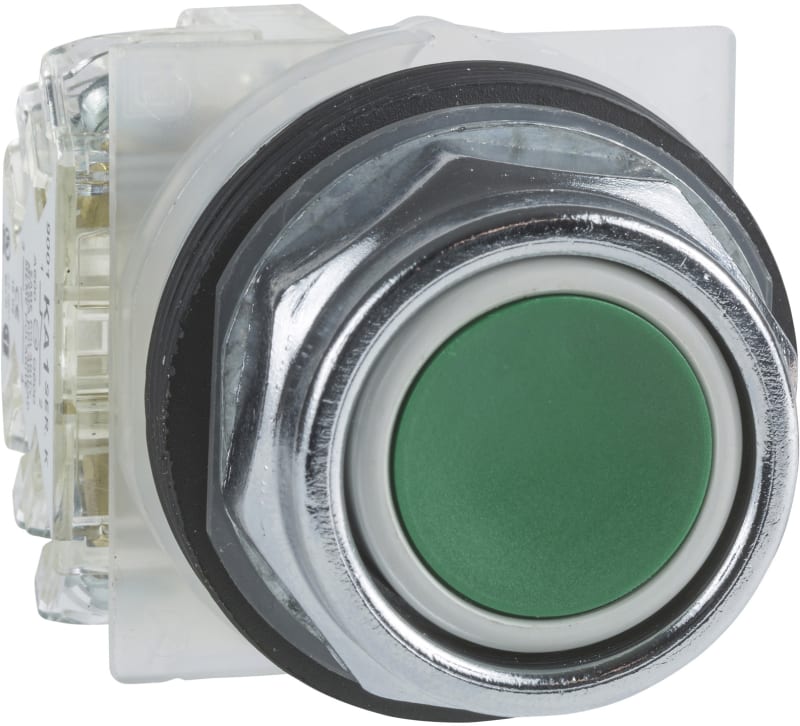

PUSH-Button Green 1C/O

Schneider Electric 9001KR1GH13 Control and signalling devices 30 mm.

Manufacturer part number (MPN)

9001KR1GH13

EAN / GTIN

3389110910742

Sales unit

pcs

Range of product

Harmony 9001K

Product or component type

Push-button

Device short name

9001K

Type of operator

spring return

Operator profile

Green flush, unmarked

Operator additional information

Metal guard

Bezel material

Metal

Mounting diameter

30 mm

Shape of signaling unit head

Octagonal

Contacts type and composition

1 C/O

Connections - terminals

Screw clamp terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1

Tightening torque

0.8 N.m conforming to IEC 60947-1

shape of screw head

Cross slotted

Mechanical durability

5000000 cycles

Operating position

Any position

[Ie] rated operational current

3 A at 240 V, AC-15, A600-Q600 conforming to NEMA; 0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

2.5 kV conforming to IEC 60947-1

Contacts material

Silver alloy contacts

Contact operation

Standard

Positive opening

Without

Short-circuit protection

10 A cartridge fuse conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A

[Icm] rated short-circuit making capacity

12 kA at 600 V AC-15, 7200 VA; 15 kA at 480 V AC-15, 7200 VA; 30 kA at 240 V AC-15, 7200 VA; 60 kA at 120 V AC-15, 7200 VA; 0.1 kA at 600 V DC-13; 0.27 kA at 250 V DC-13; 0.55 kA at 125 V DC-13

Rated breaking capacity

3 kA at 240 V AC-15, 720 VA; 6 kA at 120 V AC-15, 720 VA; 1.2 kA at 600 V AC-15, 720 VA; 1.5 kA at 480 V AC-15, 720 VA; 0.1 kA at 600 V DC-13; 0.27 kA at 250 V DC-13; 0.55 kA at 125 V DC-13

Terminals description ISO n°1

(13-14-11-12)OF

CAD overall width

48 mm

CAD overall height

45 mm

CAD overall depth

56 mm

Product weight

0.121 kg

Device presentation

Complete product

Cap/operator or lens colour

Green

Size

30 mm

Standards

IEC 60947-1; JIS C 4520; IEC 60947-5-1; CSA C22.2 No 14; JIS C 852; IEC 60947-5-4

Product certifications

UL 508; NEMA

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Vibration resistance

7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn conforming to IEC 60068-2-27

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65/IP66

NEMA degree of protection

NEMA 1; NEMA 12; NEMA 13; NEMA 2; NEMA 3; NEMA 3R; NEMA 4

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.000 cm

Package 1 Width

5.800 cm

Package 1 Length

9.500 cm

Package 1 Weight

126.000 g

Unit Type of Package 2

S01

Number of Units in Package 2

24

Package 2 Height

15.000 cm

Package 2 Width

15.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.204 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

31 mm

Colour button

Green

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Type of button

Flat

Colour front ring

Chrome

Type of electric connection

Screw connection

Degree of protection (IP)

IP66

Material front ring

Metal

With front ring

Yes

Transparent

No

Construction type lens

Round

Switching function latching

No

Number of contacts as change-over contact

1

HS Code

8536.50
