Modular unit 48M 500X400X150
Pricing
Request a quote
We reply within 24 hours
Product Description

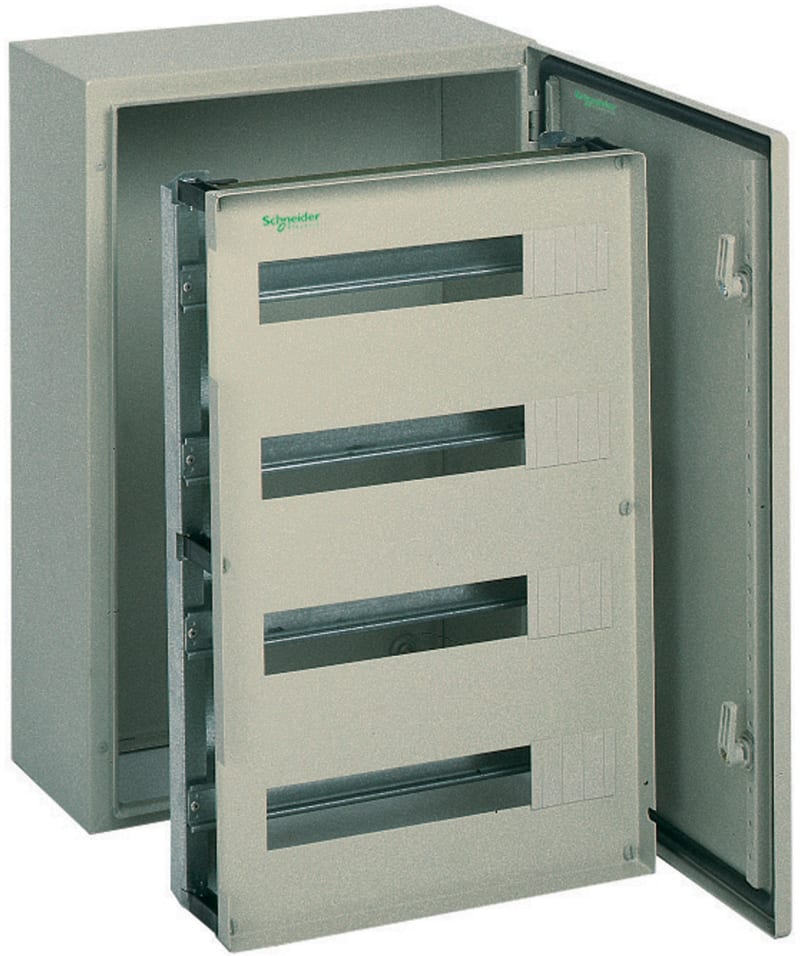

Schneider Electric NSYDLCR48 Modular unit 48M 500x400x150.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLCR48 EAN / GTIN: 3606480162664 Sales unit: pcs Dimensions: 500×400×150 Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Modular distribution application; Multi-purpose Product or component type: Chassis Device short name: DL For enclosure nominal dimensions: - Mounting location: Front of enclosure Range compatibility: PanelSeT CRN Device composition: 1 chassis structure; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 1 front panel; 3 35 mm DIN rail Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 3 Total number of 18 mm modules: 48 Type of front plate: Plain and cut-out plates Number of cut-out: 3 cut-outs Height: 455 mm Width: 355 mm Depth: 110 mm Number of Units in Package 1: 1 Number of Units in Package 2: 90 Warranty (in months): 18 With mounting plate: No Type of covering: With notch With cover: No Number of DIN-rails: 3 Number of modular spacings per DIN-rail: 16 With N-PE clamp: Yes Country of origin: Spain
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606480162664
- SAP 1000317793
- Code 8789193
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric External coupling kit, PanelSeT SFN, PanelSet SF, set of 4 connectors & fixing elementes NSYSFBKE
Schneider Electric
Schneider Electric LVS01018 PrismaSeT G Corner Post Cable Compartment White
Schneider Electric
Schneider Electric Undervoltage release, ACTI9 iMNx, 380VAC...415VAC A9A26971
Schneider Electric
Schneider Electric Door, PrismaSeT G, transparent with frame, 15M, W600, IP55, white, RAL 9003 LVS08334
Schneider Electric
Schneider Electric Complete pilot light, Harmony XB6, round yellow, plastic, 16mm, integral LED 12...24V XB6AV5BB
Schneider Electric
S3D with Glassdoor 1000X600X300
NSYS3D10630T
Schneider Electric
Side panel PrismaSeT G IP30 33M
LVS01033
Schneider Electric
Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W1200MM, 2 rows, set of 2 NSYSUCR65120
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYDLCR48?
- NSYDLCR48 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYDLCR48.
- What is the HS code for NSYDLCR48?
- The customs tariff (HS) code for NSYDLCR48 is 9403.99.
- Who manufactures NSYDLCR48?
- NSYDLCR48 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYDLCR48?
- Yes — the NSYDLCR48 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYDLCR48?
- The minimum order quantity is 1.
- Is NSYDLCR48 available?
- Yes — NSYDLCR48 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
