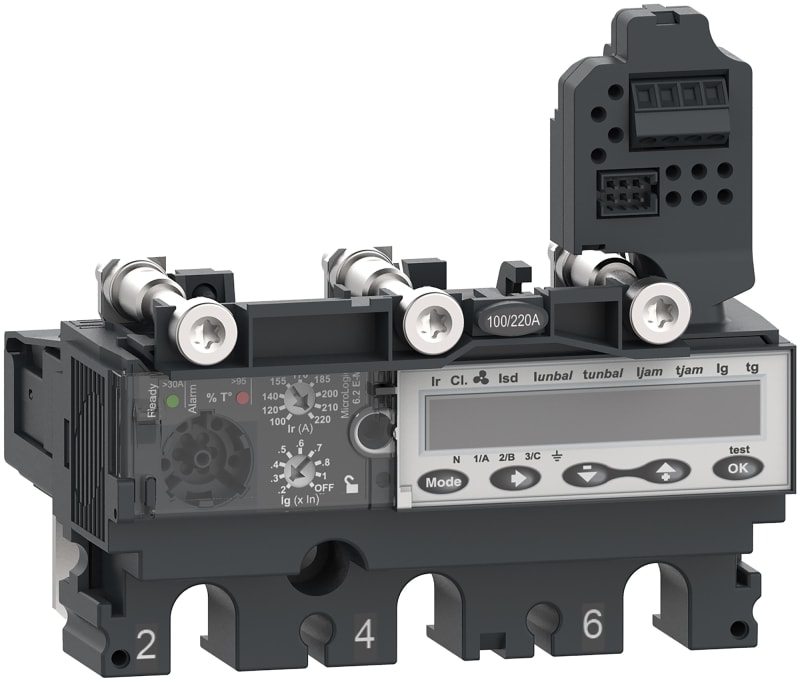

Schneider Electric Trip unit MicroLogic 6.2EM, ComPacT NSX100-250, 3 poles, basic and ground fault protections, motor, energy meter, 25A C1036M025

Schneider Electric C1036M025 Electronic motor protection with measurement for ComPacT NSX-Micrologic 6.2 E-M 3P 25A.

Manufacturer part number (MPN)

C1036M025

EAN / GTIN

3606482000438

Sales unit

pcs

Package quantity

11 pcs

Rated current

25 A

Number of poles

3P

Range

ComPacT

Range of product

ComPacT NSX100...250

Product or component type

Trip unit

Trip unit name

MicroLogic 6.2 E-M

Trip unit technology

Electronic

Range compatibility

ComPacT NSX100; ComPacT NSX160; ComPacT NSX250

Device application

Motor

Poles description

3P

Protected poles description

3D

Trip unit protection functions

LSIG

Protection type

L : for overload protection (long time); S : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection; G : for ground fault protection

Trip unit rating

25 A at 65 °C

[Ue] rated operational voltage

690 V AC 50/60 Hz

Network type

AC

Network frequency

50/60 Hz

Circuit breaker mounting mode

Fixed

Motor tripping class

20; 30; 10; 5

Complementary motor protection

Current unbalance; Stalled rotor; Underload; Protracted starting time

Long-time pick-up adjustment type Ir (thermal protection)

Adjustable 9 settings

[Ir] long-time protection pick-up adjustment range

12...25 A

Long-time protection delay adjustment type tr

Adjustable

[tr] long-time protection delay adjustment range

120 s at 1.5 x Ir for trip class 5; 6.5 s at 6 x Ir for trip class 5; 5 s at 7.2 x Ir for trip class 5; 240 s at 1.5 x Ir for trip class 10; 13.5 s at 6 x Ir for trip class 10; 10 s at 7.2 x Ir for trip class 10; 480 s at 1.5 x Ir for trip class 20; 26 s at 6 x Ir for trip class 20; 20 s at 7.2 x Ir for trip class 20; 720 s at 1.5 x Ir for trip class 30

Thermal memory

20 minutes before and after tripping

Short-time protection pick-up adjustment type Isd

Adjustable 9 settings

[Isd] Short-time protection pick-up adjustment range

5...13 x Ir

Short-time protection delay adjustment type tsd

Fixed

Instantaneous protection pick-up adjustment type Ii

Fixed

[Ii] instantaneous protection pick-up adjustment range

425 A

Ground-fault protection pick-up adjustment type Ig

Adjustable

[Ig] ground-fault protection pick-up adjustment range

0.6...1 x In for In = 25 A; Ig enable on/off

Ground-fault protection time delay adjustment type tg

Adjustable

[tg] ground-fault protection time delay adjustment range

0…0.4 s

Earth-leakage protection

Without

Zone selective interlocking ZSI

With

Local signalling

Flashing LED (green) for ready to operate; LED 95 % Ith (red) for temperature over set point

Display type

LCD display

Type of measurement

Energy meter

Communication of data

Energy metering; Protection and alarm settings; Time-stamped histories and event tables; Instantaneous and demand values; Maintenance indicators; Demand current and power; Power quality; Maximeters/minimeters

Electrical data recording

Maintenance indicators

Standards

EN/IEC 60947-2

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60947-1

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Width

104.7 mm

Height

96.9 mm

Depth

90.3 mm

Rated permanent current Iu

25 A

Short-circuit release function

Delayed

Voltage type (supply voltage)

DC

External power supply required

Yes

Rated control supply voltage DC

24 V

With ground fault protection function

Yes

Rated switch current

25 A

End value adjustment range undelayed short-circuit release

425 A

Type of motor protection

Electronic release

Voltage type for actuating

AC

Country of origin

France

HS Code

8536.30
