Schneider Electric Circuit breaker basic frame, ComPacT NSX100H, 70KA/415VAC, 3 poles, 100A frame rating, without trip unit C10H3
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C10H3 Circuit breaker ComPacT NSX switch base NSX100H 3P without Protection 100A 100kA/230VAC - 70kA/415VAC.
Technical Specifications
- Manufacturer part number (MPN)
- C10H3
- EAN / GTIN
- 3606481999344
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Number of poles
- 3P
- Range
- ComPacT
- Product name
- ComPacT NSX
- Device short name
- NSX100H
- Product or component type
- Basic frame
- Device application
- Distribution
- Poles description
- 3P
- [In] rated current
- 100 A at 40 °C
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz conforming to IEC 60947-2
- Network type
- AC
- Network frequency
- 50/60 Hz
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity
- 10 kA at 600 V AC 50/60 Hz conforming to UL 508; 85 kA at 240 V AC 50/60 Hz conforming to UL 508; 65 kA at 480 V AC 50/60 Hz conforming to UL 508; 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 65 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 70 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
- Breaking capacity code
- H 70 kA 415 V AC
- Control type
- Toggle
- mounting mode
- Fixed
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947-2
- [Ics] rated service breaking capacity
- 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 65 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2; 70 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
- Mechanical durability
- 50000 cycles conforming to IEC 60947-2
- Electrical durability
- 10000 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2; 20000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2; 30000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2; 50000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 35 mm
- Protection type
- Without protection
- Width (W)
- 105 mm
- Height (H)
- 161 mm
- Depth (D)
- 86 mm
- Standards
- EN/IEC 60947-2; UL 60947-4-1
- Overvoltage category
- III
- Electrical shock protection class
- Class II on front face
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481999344
- SAP 1200533497
- Code 82686523
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LVS03482 MOUNTING PLATE FOR NS FIXED -3P/4P 1600A VERTICAL IN WIDTH 650
Schneider Electric

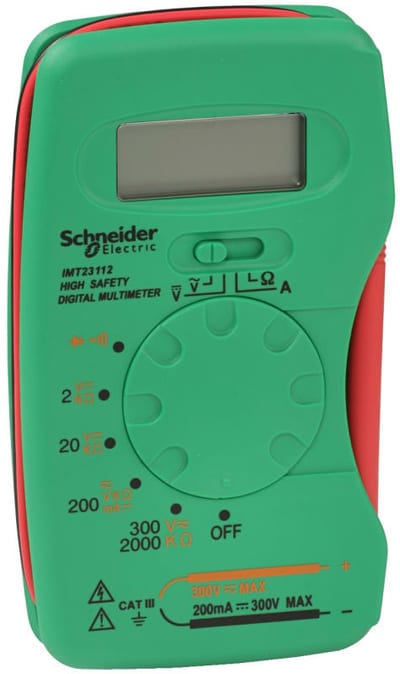

THORSMAN Digit.Multi. Cat III
IMT23112
Schneider Electric

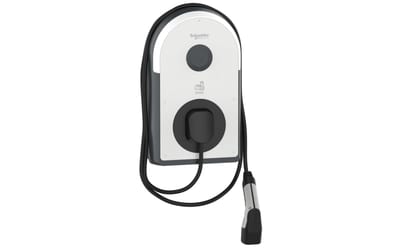

Schneider Electric Charging station, EVlink Pro AC/AC Metal, 22kW, 32A, 3P+N, T2 attached cable, RDC-DD 6MA, RCD Asi 30MA, MNx aux. EVB3S22NCA
Schneider Electric

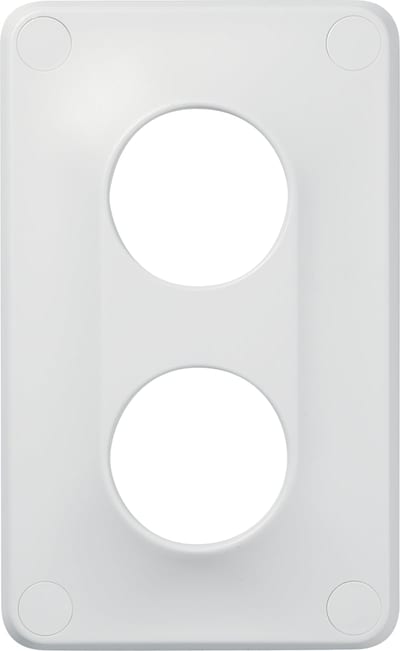

Robust Doubleframe (WDE000914)
