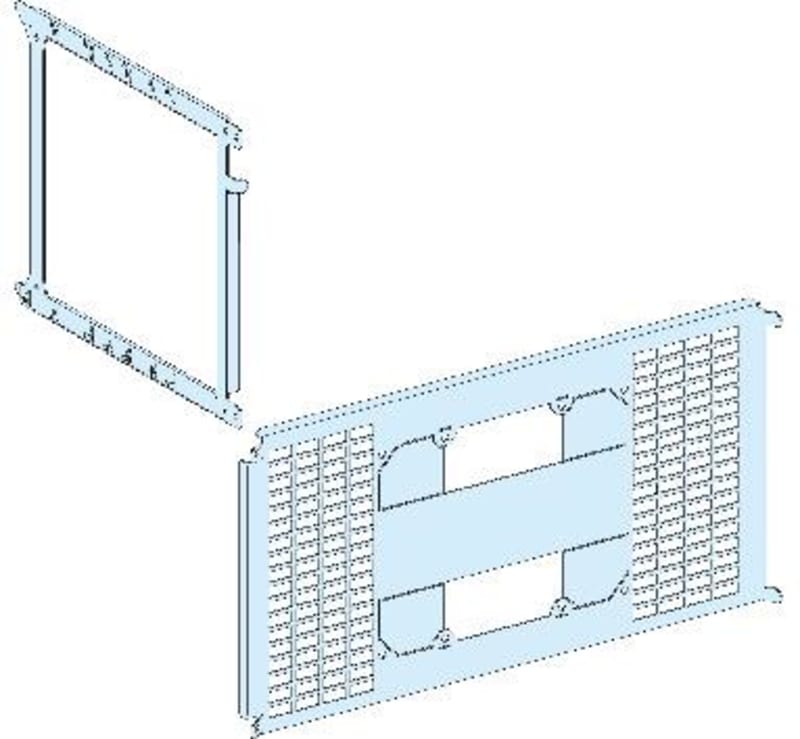

Schneider Electric LVS03482 MOUNTING PLATE FOR NS FIXED -3P/4P 1600A VERTICAL IN WIDTH 650
Part numberLVS03482EAN / GTIN3606481874450HS code7326.90
Enclosures
Mounting Plates
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LVS03482 MOUNTING PLATE FOR NS FIXED -3P/4P 1600A VERTICAL IN WIDTH 650 is listed under Enclosures / Mounting Plates. Sales unit: pcs; Package quantity: 3 pcs; Range: PrismaSeT; Range of product: PrismaSeT P; Product or component type: Mounting plate; Range compatibility: PrismaSeT PrismaSeT P cubicle.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03482
- EAN / GTIN
- 3606481874450
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm; Cubicle - width 650 mm depth 800 mm
- Installed device
- ComPact: fixed NS1250 - control: toggle - vertical installation; ComPact: fixed NS1250 - control: direct front rotary handle - vertical installation; ComPact: fixed NS1250 - control: motor mechanism - vertical installation; ComPact: fixed NS1600 - control: toggle - vertical installation; ComPact: fixed NS1600 - control: direct front rotary handle - vertical installation; ComPact: fixed NS1600 - control: motor mechanism - vertical installation; ComPact: fixed NS630b...1000 - control: toggle - vertical installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle - vertical installation; ComPact: fixed NS630b...1000 - control: motor mechanism - vertical installation; EasyPact CVS: fixed CVS800...1600 - control: toggle - vertical installation; EasyPact CVS: fixed CVS800...1600 - control: rotary handle - vertical installation
- Poles description
- 1 x 3P: fixed NS1250 vertical installation; 1 x 4P: fixed NS1250 vertical installation; 1 x 3P: fixed NS1600 vertical installation; 1 x 4P: fixed NS1600 vertical installation; 1 x 3P: fixed NS630b...1000 vertical installation; 1 x 4P: fixed NS630b...1000 vertical installation; 1 x 3P: fixed CVS800...1600 vertical installation; 1 x 4P: fixed CVS800...1600 vertical installation
- Number of vertical modules [50 mm]
- 17 module(s): NS1250, front connection on Canalis in 650 mm Widecubicle; 16 module(s): NS1250, rear connection on Canalis in 650 mm Widecubicle; 14 module(s): NS1250, front connection on adaptor in 650 mm Widecubicle; 10 module(s): NS1250, rear connection on adaptor in 650 mm Widecubicle; 16 module(s): NS1600, rear connection on Canalis in 650 mm Widecubicle; 14 module(s): NS1600, front connection on adaptor in 650 mm Widecubicle; 10 module(s): NS1600, rear connection on adaptor in 650 mm Widecubicle; 17 module(s): NS630b...1000, front connection on Canalis in 650 mm Widecubicle; 16 module(s): NS630b...1000, rear connection on Canalis in 650 mm Widecubicle; 12 module(s): NS630b...1000, front connection on adaptor in 650 mm Widecubicle; 10 module(s): NS630b...1000, rear connection on adaptor in 650 mm Widecubicle; 14 module(s): CVS800...1600, front connection in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 300 mm
- Product weight
- 3.08 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 3P 1 front connection on Canalis 17 387.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 front connection on Canalis 17 387.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 3P 1 front connection on adaptor 14 237.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14 237.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 front connection on Canalis 17 387.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 front connection on adaptor 14 237.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 front connection on Canalis 17 387.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 front connection on Canalis 17 387.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 front connection on adaptor 14 237.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 14 237.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 front connection on Canalis 17 387.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 front connection on adaptor 14 237.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 3P 1 front connection on adaptor 14 237.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14 237.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 front connection on adaptor 14 237.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 4P 1 front connection on adaptor 14 237.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 14 237.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 front connection on adaptor 14 237.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 front connection on Canalis 17 387.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 front connection on Canalis 17 387.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 front connection on adaptor 12 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 12 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 front connection on Canalis 17 387.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 front connection on adaptor 12 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 front connection on Canalis 17 387.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 front connection on Canalis 17 387.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 front connection on adaptor 12 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 front connection on adaptor 12 137.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 front connection on Canalis 17 387.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 rear connection on Canalis 16 337.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 front connection on adaptor 12 137.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 rear connection on adaptor 10 37.5 mm; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 rear connection on adaptor 10 37.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS CVS800...1600 fixed toggle vertical 3P 1 front connection 14 237.5 mm; 650 mm 400 mm PrismaSeT P cubicle EasyPact CVS CVS800...1600 fixed rotary handle vertical 4P 1 front connection 14 237.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 29.600 cm
- Package 1 Length
- 57.500 cm
- Package 1 Weight
- 3.250 kg
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 3
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 41.000 cm
- Package 2 Length
- 60.500 cm
- Package 2 Weight
- 10.942 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 36
- Package 3 Height
- 61.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 143.300 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874450
- SAP 1200546687
- Code 82879759
