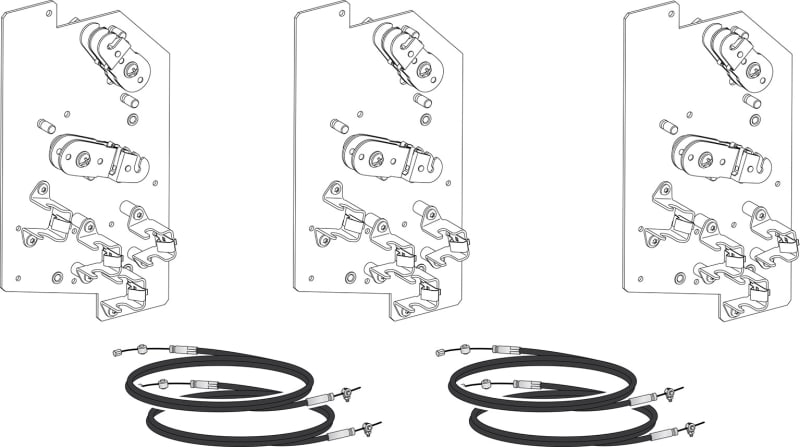

Schneider Electric XF or MX voltage release, diagnostics and communicating, Masterpact MTZ1/2/3, 277 VAC 50/60 Hz, spare part LV833037SP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV833037SP In/utspole MX XFcom 277VAC for Masterpact MTZ, reserveerve.
Technical Specifications
- Manufacturer part number (MPN)
- LV833037SP
- EAN / GTIN
- 3606480932489
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 277 V AC
- Range
- MasterPact
- Product or component type
- Voltage release
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1 circuit-breaker; Masterpact MasterPact MTZ2 circuit-breaker; Masterpact MasterPact MTZ3 circuit-breaker
- Voltage release type
- Closing coil; Opening coil
- Control type
- Communicating
- Signalling function
- Ready to close or open; Coil powered; Error; Electrical push-button activated
- [Un] voltage power supply
- 277 V AC 50/60 Hz
- Threshold tripping voltage
- 0.7...1.1 Un on opening; 0.85...1.1 Un on closing
- Holding power consumption
- 4.5 VA
- Circuit breaker mounting mode
- Fixed/drawout
- Maximum response time
- 60 ms on opening for MasterPact MTZ1; 60 ms on opening for MasterPact MTZ2; 60 ms on opening for MasterPact MTZ3; 65 ms on closing for MasterPact MTZ1; 80 ms on closing for MasterPact MTZ2; 90 ms on closing for MasterPact MTZ3
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- Country of origin
- FR
- Warranty (in months)
- 18
- Power consumption
- 4.5 W
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Flat plug-in connection
- Rated control supply voltage AC 50 Hz
- 277 V
- Rated control supply voltage AC 60 Hz
- 277 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480932489
- SAP 1200050448
- Code 81878616
