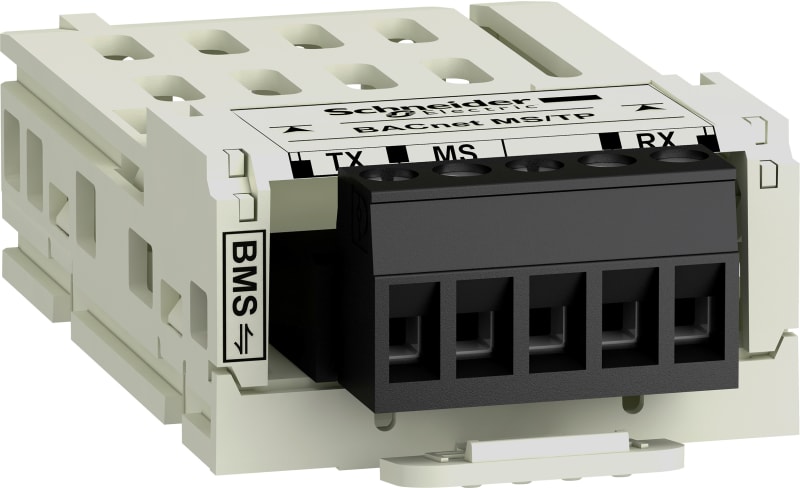

Schneider Electric BACnet MS/TP communication module - Altivar Process ATV600 VW3A3725
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A3725 BACNET Short for ATV600.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A3725
- EAN / GTIN
- 3606481355430
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Range of product
- Altivar
- Product or component type
- Communication module
- Product compatibility
- ATV600
- Range compatibility
- Altivar Process Modular; Altivar Process ATV600
- Communication port protocol
- BACnet MS/TP
- Electrical connection
- Screw terminal block 5-pin removable terminal block, BACnet MS/TP
- Transmission rate
- 9.6, 19.2, 38.4, 76.8 kbit/s
- Communication service
- AV, BV, MSV for BACnet MS/TP; COV notification
- Communication network type
- RS485
- Display type
- 1 LED for error; 1 LED for transmission activity; 1 LED for reception activity (RX); 1 LED for module status
- Transmission support medium
- 2 twisted pairs
- Product weight
- 0.035 kg
- Ambient air temperature for operation
- -20…65 °C
- Ambient air temperature for storage
- -25…70 °C
- Relative humidity
- 5…95 % without condensation
- Operating altitude
- 0...2000 m
- Storage altitude
- 0…3048 m
- Vibration resistance
- 1.5 mm (f = 3…13 Hz); 1 mm (f = 13…23 Hz); 2 gn (f = 13…150 Hz)
- Shock resistance
- 15 gn for 11 ms
- Electromagnetic compatibility
- EMC immunity conforming to IEC 61000-6-1; EMC immunity level 2 conforming to IEC 60730-1; Electrostatic discharge level 3B conforming to IEC 61000-4-2; Radiated RF fields level 3A conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 4B conforming to IEC 61000-4-4; Surge immunity test level 3 conforming to IEC 61000-4-5; Conducted RF disturbances level 3A conforming to IEC 61000-4-6; Conducted EMC level 2 conforming to IEC 60730-1; Conducted EMC conforming to IEC 61000-6-3
- Product certifications
- BTL; CSA; UL 508; UL 873
- IP degree of protection
- IP20
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Country of origin
- SE
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 3606481355430
- SAP 1200077115
- Code 81922245
