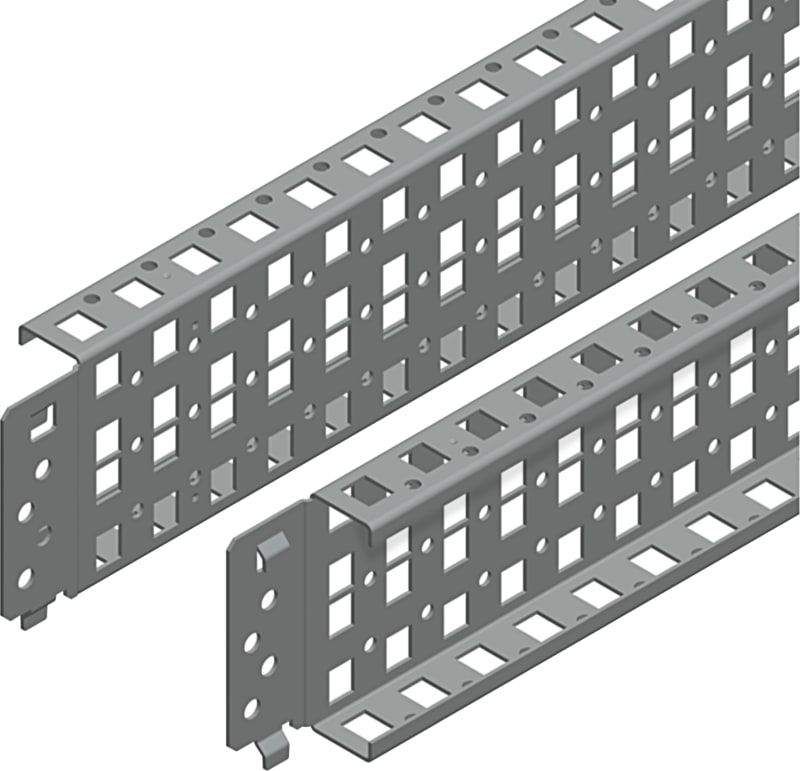

Schneider Electric Quick fixing cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W1000MM, 3 rows, set of 2 NSYSQCR90100
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSQCR90100 Cross-arm 1000/3.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSQCR90100
- EAN / GTIN
- 3606485132747
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Quick cross rails
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- On structure of enclosure; Between cross rails
- Mounting support
- Adaptation profile, on SM enclosures
- Device composition
- fixing elements; 2 cross rails
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws; Clipped - on structure location
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 3
- Maximum load
- 70 kg
- Height
- Nominal: 1000 mm; Useful: 910 mm
- Width
- 90 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 120
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building width
- 1000 mm
- Max. load capacity
- 70 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485132747
- SAP 1000090123
- Code 8893139
Product Documentation
More from Schneider Electric
Schneider Electric
PLA75 Telequick mounting plate
NSYPMR75
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 220V AC standard coil, snap-in terminals CAD32AM7
Schneider Electric
Schneider Electric SMX 304L stainless monobloc enclosure, H2000XW1200XD500MM, Scotch Brite® finish. NSYSMX201250
Schneider Electric
Mounting Plate TELEQ. 825X1000
NSYSTMP82100
Schneider Electric
Schneider Electric Contactor, TeSys Deca Advanced, 3P(3NO), AC-3/3E, <=440V, 9A, 24...60V AC/DC coil, snap-in terminals LC1D09ABNE
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 265A, advanced version, 48…130V wide band AC/DC coil LC1G265EHEA
Schneider Electric
Floor-Standing Cabinet 20X8X4 U.PL.
NSYSM20840
Schneider Electric
Vertical sammenconnection G 33M
LVS01028
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYSQCR90100?
- NSYSQCR90100 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYSQCR90100.
- What is the HS code for NSYSQCR90100?
- The customs tariff (HS) code for NSYSQCR90100 is 7326.90.
- Who manufactures NSYSQCR90100?
- NSYSQCR90100 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYSQCR90100?
- Yes — the NSYSQCR90100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYSQCR90100?
- The minimum order quantity is 1.
- Is NSYSQCR90100 available?
- Yes — NSYSQCR90100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
