Vertical sammenconnection G 33M
Pricing
Request a quote
We reply within 24 hours
Product Description

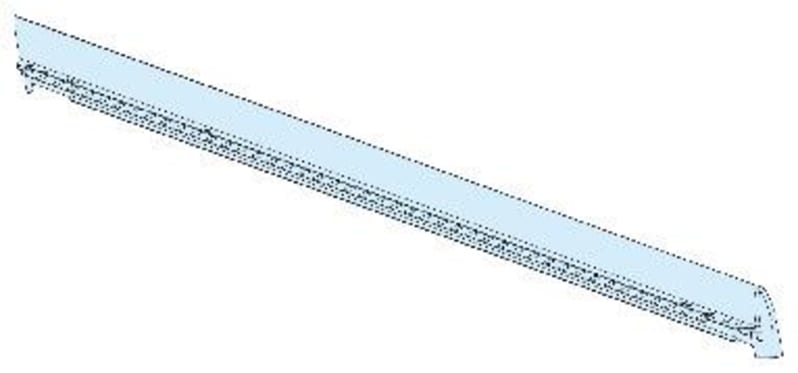

Schneider Electric LVS01028 Vertical profile for sammenkobling-PrismaSeT G- 33 modules-IP30-spare part.
Technical Specifications
- Manufacturer part number (MPN)
- LVS01028
- EAN / GTIN
- 3606481884053
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT G Active
- Product or component type
- Central upright
- Accessory / separate part category
- Spare part; Coupling accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- IP degree of protection
- IP30
- Accessory / separate part destination
- For side by side framework combination
- Mounting location
- Side by side
- installation description
- Floor-standing enclosure - width 600 mm; Floor-standing enclosure - width 300 mm; Floor-standing enclosure - width 850 mm
- Number of vertical modules [50 mm]
- 33
- Quantity per set
- Set of 1
- Height
- 1680 mm
- Product weight
- 2.8 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.0 cm
- Package 1 Width
- 20.5 cm
- Package 1 Length
- 188.0 cm
- Package 1 Weight
- 2.168 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 8
- Package 2 Height
- 25.0 cm
- Package 2 Width
- 120.0 cm
- Package 2 Length
- 202.0 cm
- Package 2 Weight
- 43.5 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Components for lace up technique
- Width
- 45 mm
- Depth
- 75 mm
- RAL-number
- 9003
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481884053
- SAP 1200546796
- Code 82880427
Product Documentation
More from Schneider Electric
Schneider Electric
Cableminneforleng, 3P G630-800
LA9G3103
Schneider Electric
Selector switch flush for LED 2 pos org (ZB4FK1253)
Schneider Electric
Floor-Standing Cabinet 20X16X4 U.PL.
NSYSM2016402D
Schneider Electric

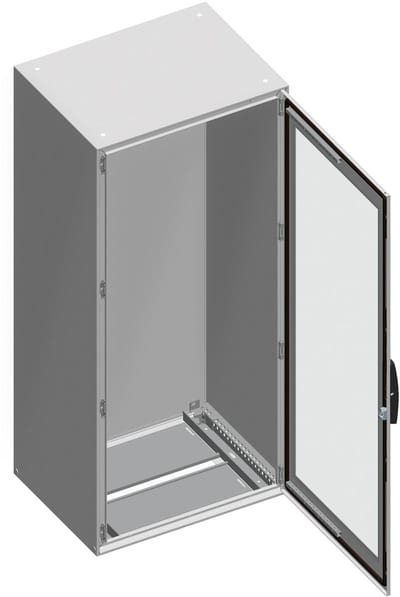

Schneider Electric PanelSeT SM compact enclosure with glazed door - 1800X600X400 mm NSYSM18640T
Schneider Electric
Warranty WBEXTWAR3YR-SP-03
Schneider Electric

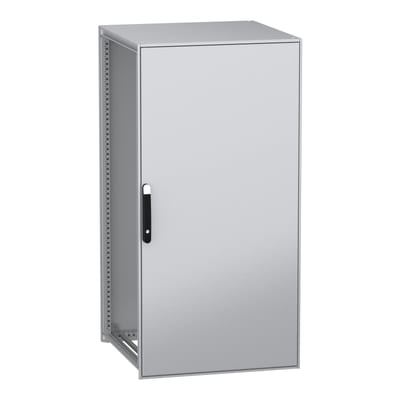

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1600X800X800MM, IP55 NSYSFN16880
Schneider Electric

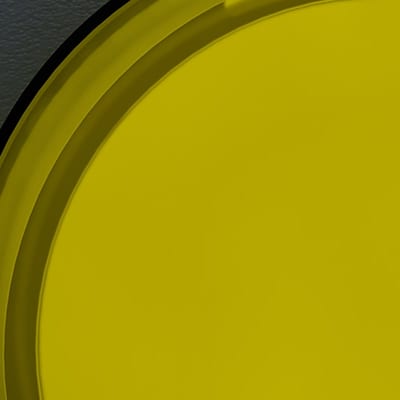

Illuminated push-button, flush, yellow, raised (ZB5FW183)
