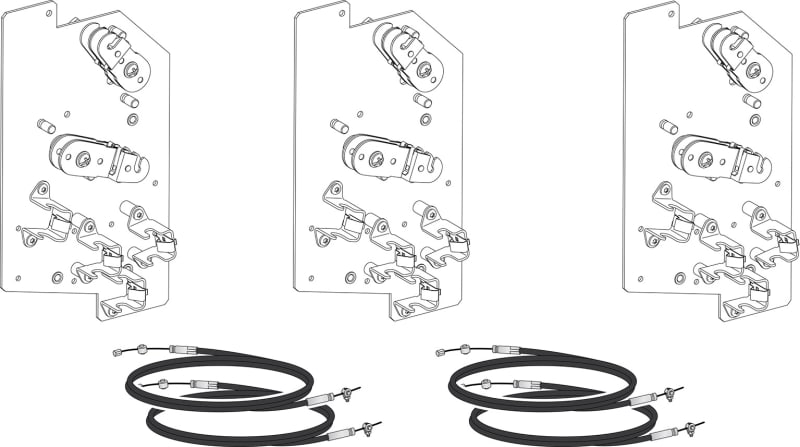

Schneider Electric XF or MX voltage release, diagnostics and communicating, Masterpact MTZ1/2/3, 200/250 VAC, 200/250 VDC, spare part LV833036SP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV833036SP In/utspole MX XFcom 200/250VAC for Masterpact MTZ, reserve.
Technical Specifications
- Manufacturer part number (MPN)
- LV833036SP
- EAN / GTIN
- 3606480932472
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range
- MasterPact
- Product or component type
- Voltage release
- Device application
- Control
- Range compatibility
- Masterpact MasterPact MTZ1 circuit-breaker; Masterpact MasterPact MTZ2 circuit-breaker; Masterpact MasterPact MTZ3 circuit-breaker
- Voltage release type
- Closing coil; Opening coil
- Control type
- Communicating
- Signalling function
- Error; Coil powered; Electrical push-button activated; Ready to close or open
- [Un] voltage power supply
- 200/250 V AC 50/60 Hz; 200/250 V DC
- Threshold tripping voltage
- 0.7...1.1 Un on opening; 0.85...1.1 Un on closing
- Holding power consumption
- 4.5 W
- Circuit breaker mounting mode
- Fixed/drawout
- Maximum response time
- 60 ms on opening for MasterPact MTZ1; 60 ms on opening for MasterPact MTZ2; 60 ms on opening for MasterPact MTZ3; 65 ms on closing for MasterPact MTZ1; 80 ms on closing for MasterPact MTZ2; 90 ms on closing for MasterPact MTZ3
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.0 cm
- Package 1 Width
- 6.0 cm
- Package 1 Length
- 8.0 cm
- Package 1 Weight
- 242.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 12
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 3.192 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Power consumption
- 4.5 W
- Suitable for off-load switch
- Yes
- Suitable for overload relay
- No
- Type of electric connection
- Flat plug-in connection
- Rated control supply voltage AC 50 Hz
- 200–250 V
- Rated control supply voltage AC 60 Hz
- 200–250 V
- Rated control supply voltage DC
- 200–250 V
- Suitable for motor safety switch
- No
- Suitable for power circuit breaker
- Yes
- Voltage type for actuating
- AC/DC
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3606480932472
- SAP 1200050447
- Code 81878283
Product Documentation
More from Schneider Electric
Schneider Electric
4 Plinth sides F200X400
NSYSPS4200
Schneider Electric
Doorframe for MTZ1 Withdrawable (LV833718SP)
Schneider Electric
Schneider Electric Trip unit TM40D, ComPacT NSX100/160, 3 poles, thermal magnetic protections, 40A rating C103TM040
Schneider Electric
Front plate 5M ModProd B850MM PrismaSeT G
LVS03218
Schneider Electric
Schneider Electric PrismaSet P Framework, W = 800 mm, D = 600 mm LVS08608
Schneider Electric
Mismatchbeskyt VDC MTZ reserve
LV833767SP
Schneider Electric
Schneider Electric PanelSeT SM side panel plinth - 200X300 mm NSYSPS3200
Schneider Electric
Schneider Electric PanelSeT SM side panel plinth - 100X300 mm NSYSPS3100
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV833036SP?
- LV833036SP can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV833036SP.
- What is the HS code for LV833036SP?
- The customs tariff (HS) code for LV833036SP is 8536.30.
- Who manufactures LV833036SP?
- LV833036SP is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV833036SP?
- Yes — the LV833036SP datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV833036SP?
- The minimum order quantity is 1.
- Is LV833036SP available?
- Yes — LV833036SP is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
