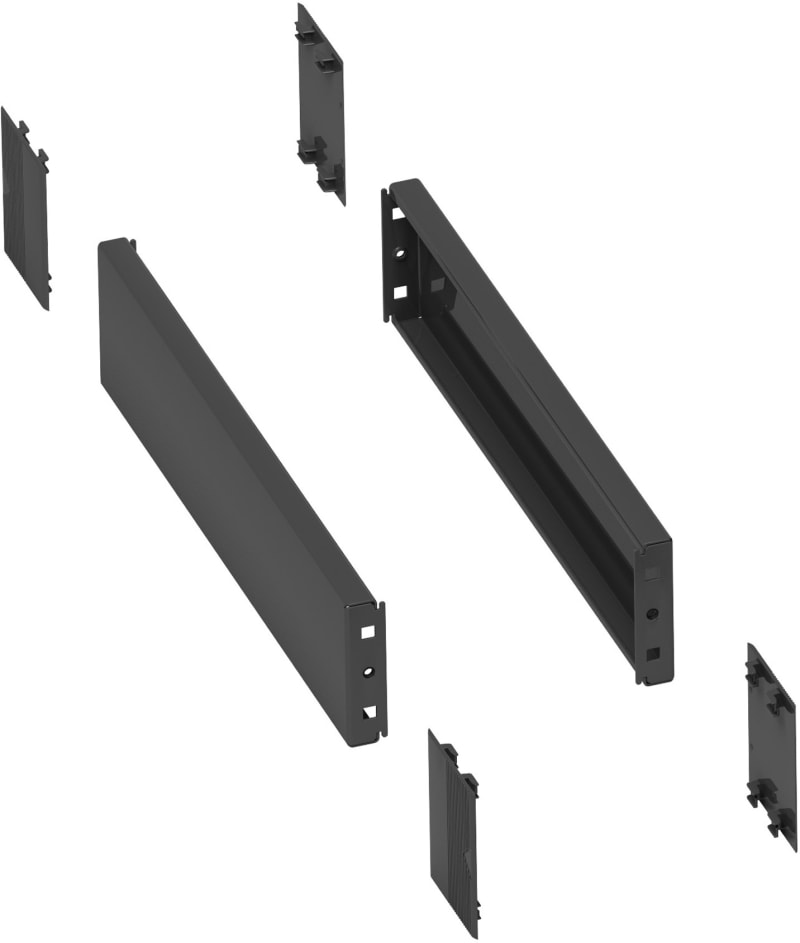

Schneider Electric PanelSeT SM side panel plinth - 100X300 mm NSYSPS3100
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSPS3100 2 plinth sides 100x300 for Spacial.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSPS3100
- EAN / GTIN
- 3606480146435
- Sales unit
- pcs
- Dimensions
- 100×300 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Plinth side panel
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Device composition
- fixing elements; 4 corner cover; 2 side panel
- Range compatibility
- PanelSeT SM
- Mounting support
- Front plinth
- Fixing mode
- By screws
- Colour
- Grey (RAL 7022)
- Surface finish
- Epoxy-polyester powder
- Height
- 100 mm
- Width
- Nominal: 300 mm
- IP degree of protection
- IP20 (complete plinth)
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.000 cm
- Package 1 Width
- 15.500 cm
- Package 1 Length
- 11.500 cm
- Package 1 Weight
- 708.000 g
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 126
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 106.000 kg
- Country of origin
- TN
- Warranty (in months)
- 18
- Model
- Base side set
- Depth
- 300 mm
- Suitable for enclosure building depth
- 300 mm
- Material
- Steel
- RAL-number (similar)
- 7030
- Suitable for outdoor set-up
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480146435
- SAP 1000317660
- Code 81015435
Product Documentation
More from Schneider Electric
Schneider Electric
Basefront 200X800 (NSYSPF8200)
Schneider Electric
Schneider Electric Trip unit TM50D, ComPacT NSX100/160, 4 poles 4D (neutral fully protected), thermal magnetic protections, 50A rating C104TM050
Schneider Electric
Basefront 200X1000 (NSYSPF10200)
Schneider Electric
Schneider Electric Trip unit TM100D, ComPacT NSX100/160/250, 4 poles 4D (neutral fully protected), thermal magnetic protections, 100A C104TM100
Schneider Electric
Schneider Electric 4P vertical connection adapters - spare part LV833643SP
Schneider Electric

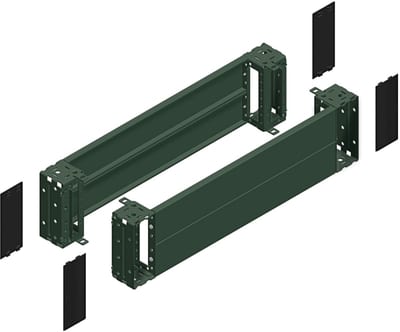

Basefront 200X600 (NSYSPF6200)
Schneider Electric

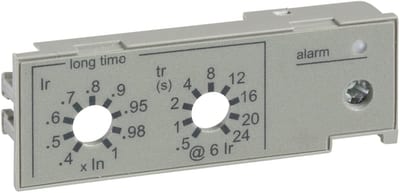

Schneider Electric IEC long time rating plug, MicroLogic trip units, low setting Ir (0.4 to 0.8 x In)
33543
Schneider Electric

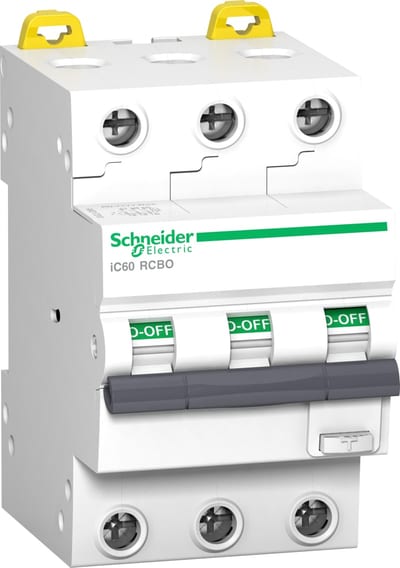

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 3P, 10A, C curve, 6000A/6KA, A type, 30MA A9D67310
