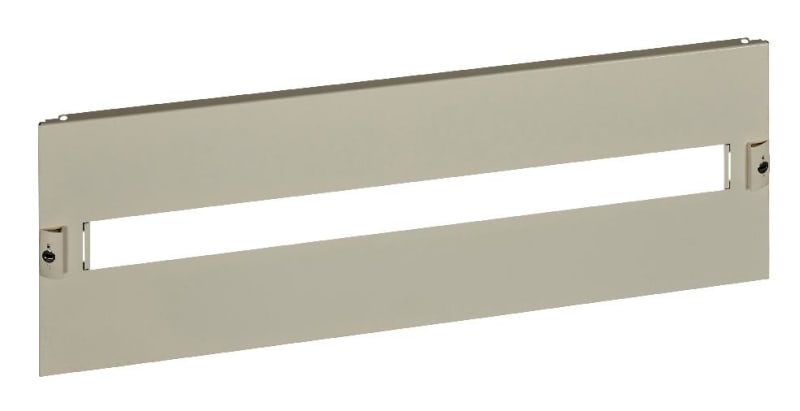

Front plate 5M ModProd B850MM PrismaSeT G

Frontplate-5 Modules for Modular products-PrismaSeT G-for 850mm felt.

Manufacturer part number (MPN)

LVS03218

EAN / GTIN

3606481872777

Sales unit

pcs

Package quantity

6 pcs

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Front plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure

Type of front plate

Modular

Installed device

ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; Acti 9: fixed iC120 without earth leakage protection - control: toggle; Multi9: fixed NG125 without earth leakage protection - control: toggle; Acti 9: fixed iC120 with earth leakage protection - control: toggle; ComPact: fixed NG160 without earth leakage protection ; Multi9: fixed NG125 with earth leakage protection ; ComPact: fixed NG160 with earth leakage protection ; ComPact: fixed NSXm without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSXm with earth leakage protection - control: toggle - vertical installation

Poles description

4 x 3P: modular rail support: INS100 vertical installation; 4 x 4P: modular rail support: INS100 vertical installation; 4 x 3P: modular rail support: INS125 vertical installation; 4 x 4P: modular rail support: INS125 vertical installation; 4 x 3P: modular rail support: INS160 vertical installation; 4 x 4P: modular rail support: INS160 vertical installation; 24 x 1P: modular rail support: iC120; 12 x 2P: modular rail support: iC120; 8 x 3P: modular rail support: iC120; 6 x 4P: modular rail support: iC120; 12 x 2P: modular rail support: NG125; 8 x 3P: modular rail support: NG125; 6 x 4P: modular rail support: NG125; 7 x 3P: modular rail support: NG160; 5 x 4P: modular rail support: NG160; 5 x 2P: modular rail support: iC120; 3 x 3P: modular rail support: iC120; 3 x 4P: modular rail support: iC120; 6 x 2P: modular rail support: NG125; 4 x 3P: modular rail support: NG125; 3 x 4P: modular rail support: NG125; 3 x 3P: modular rail support: NG160; 2 x 4P: modular rail support: NG160; 1 x 3P or 4P: modular rail support: NSXm vertical installation

Operating position

Vertical

Enclosure/cubicle description

Floor-standing enclosure - width 850 mm

Connection position

Direct connection

9 mm pitches

72

Number of 18 mm modules per row

36

Number of vertical modules [50 mm]

5

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

850 mm

Height

250 mm

Product weight

1.52 kg

Quantity per set

Set of 1

functional unit

850 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 1P 24 direct 5; 850 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 2P 12 direct 5; 850 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 3P 8 direct 5; 850 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 without fixed toggle 4P 6 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 3P 4 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INS100 fixed direct front rotary handle vertical 4P 4 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 3P 4 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INS125 fixed direct front rotary handle vertical 4P 4 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 3P 4 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INS160 fixed direct front rotary handle vertical 4P 4 direct 5; 850 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 2P 12 direct 5; 850 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 3P 8 direct 5; 850 mm PrismaSeT G floor-standing enclosure Multi9 NG125 without fixed toggle 4P 6 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed 3P 7 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NG160 without fixed 4P 5 direct 5; 850 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 2P 5 direct 5; 850 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 3P 3 direct 5; 850 mm PrismaSeT G floor-standing enclosure Acti 9 iC120 with fixed toggle 4P 3 direct 5; 850 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed 2P 6 direct 5; 850 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed 3P 4 direct 5; 850 mm PrismaSeT G floor-standing enclosure Multi9 NG125 with fixed 4P 3 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed 3P 3 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NG160 with fixed 4P 2 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm without fixed toggle vertical 3P or 4P 1 direct 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NSXm with fixed toggle vertical 3P or 4P 1 direct 5

IP degree of protection

IP30

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

25.000 cm

Package 1 Length

75.000 cm

Package 1 Weight

1.490 kg

Unit Type of Package 2

BB1

Number of Units in Package 2

6

Package 2 Height

10.000 cm

Package 2 Width

27.300 cm

Package 2 Length

76.000 cm

Package 2 Weight

9.345 kg

Unit Type of Package 3

P12

Number of Units in Package 3

60

Package 3 Height

44.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

105.450 kg

Country of origin

FR

Warranty (in months)

18

Suitable for enclosure building width

850 mm

Material

Steel

Number of height units

5

Surface finishing

Powder coating

HS Code

7326.90

• EAN 3606481872777
• SAP 1200546621
• Code 82880546
