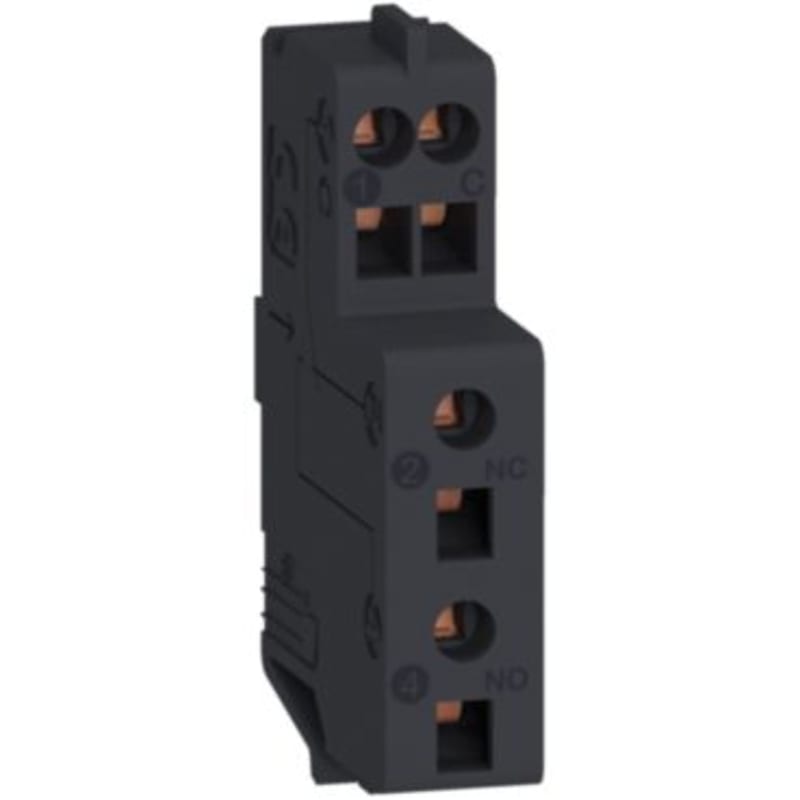

Auxiliary cover 1NO+1NC GV4

Schneider Electric GV4AE11 Auxiliary block 1NO+1NC for Tesys motor protection circuit breaker GV4.

Manufacturer part number (MPN)

GV4AE11 EAN / GTIN: 3606485444246 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Contact configuration: 1 NO + 1 NC Range: TeSys Device short name: GV4AE Product or component type: Auxiliary contact Device application: Signalling Range compatibility: TeSys TeSys GV4; TeSys TeSys BV4 Auxiliary contact composition: 1 NO/NC [Ue] rated operational voltage: <= 690 V [Ith] conventional free air thermal current: 5 A conforming to IEC 60947-5-1; 5 A conforming to CSA C22.2 No 14; 5 A conforming to UL 508 mounting mode: Internal mounting [Ui] rated insulation voltage: 690 V conforming to IEC 60947-1 [Ie] rated operational current: 5 A <= 690 V AC-12 conforming to IEC 60947-5-1; 5 A <= 48 V AC-15 conforming to IEC 60947-5-1; 4 A 110/127 V AC-15 conforming to IEC 60947-5-1; 3 A 220/240 V AC-15 conforming to IEC 60947-5-1; 2.5 A 380...440 V AC-15 conforming to IEC 60947-5-1; 0.11 A 660/690 V AC-15 conforming to IEC 60947-5-1; 5 A <= 24 V DC-12 conforming to IEC 60947-5-1; 2.5 A 48 V DC-12 conforming to IEC 60947-5-1; 0.6 A 110/127 V DC-12 conforming to IEC 60947-5-1; 0.3 A 250 V DC-12 conforming to IEC 60947-5-1; 2.5 A <= 24 V DC-12 conforming to IEC 60947-5-1; 1.2 A 48 V DC-12 conforming to IEC 60947-5-1; 0.35 A 110/127 V DC-12 conforming to IEC 60947-5-1; 0.05 A 250 V DC-12 conforming to IEC 60947-5-1; 1 A <= 24 V DC-12 conforming to IEC 60947-5-1; 0.2 A 48 V DC-12 conforming to IEC 60947-5-1; 0.05 A 110/127 V DC-12 conforming to IEC 60947-5-1; 0.03 A 250 V DC-12 conforming to IEC 60947-5-1 Rated power in VA: 120 VA AC-12 at 24 V conforming to IEC 60947-5-1; 240 VA AC-12 at 48 V conforming to IEC 60947-5-1; 635 VA AC-12 at 110/127 V conforming to IEC 60947-5-1; 1200 VA AC-12 at 230/240 V conforming to IEC 60947-5-1; 2200 VA AC-12 at 380/440 V conforming to IEC 60947-5-1; 3450 VA AC-12 at 660/690 V conforming to IEC 60947-5-1 Rated power in W: DC-12: 120 W 24 V conforming to IEC 60947-5-1; DC-12: 120 W 48 V conforming to IEC 60947-5-1; DC-12: 66 W 110 V conforming to IEC 60947-5-1; DC-12: 75 W 250 V conforming to IEC 60947-5-1 Associated fuse rating: 5 A gG at 690 V conforming to IEC 60947-5-1 minimum switching current: 2 mA minimum switching voltage: 17 V Mechanical durability: 40000 cycles Connections - terminals: Spring terminals 1 0.5…1.5 mm² - cable stiffness: flexible without cable end Wire stripping length: 8 mm Quantity per set: Set of 1 Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3606485444246
• SAP 1200123491
• Code 81978109
