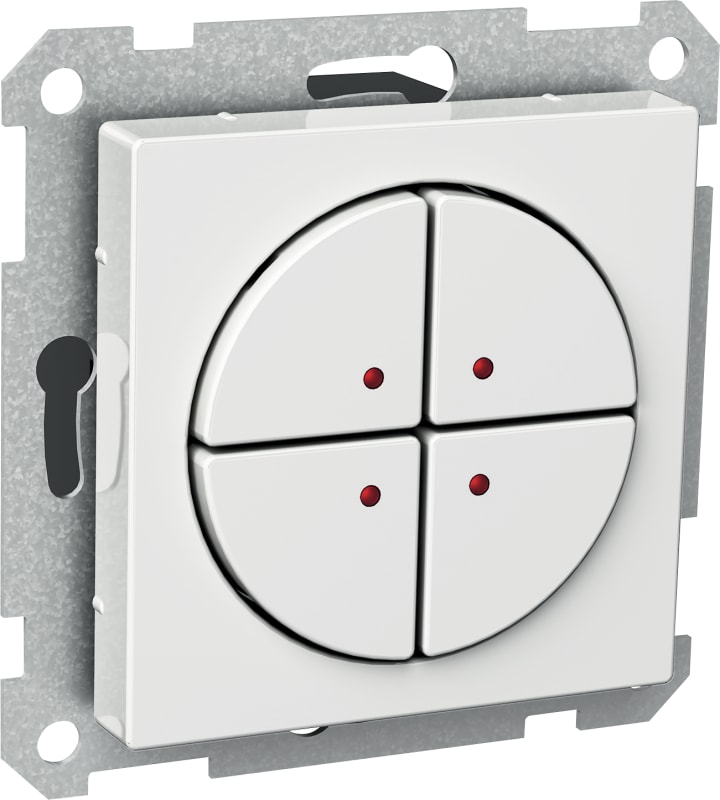

Schneider Electric Exxact Low-Voltage 4-Gang Push Button with LED

Schneider Electric WDE002394 is an Exxact series 4-gang low-voltage push button with signal LED for flush installation in the Exxact wiring range. Rated 24 V and 0.4 A, the group push button provides four normally-open contacts operated by four rockers with integrated indicator lighting. Constructed in white glossy thermoplastic (RAL 9003) with screw terminals, IK02 impact resistance, and IP20, manufactured in Finland. Typical applications include hotel, hospital, and office control stations calling attendants, scenes, or shading in extra-low-voltage building automation.

Manufacturer part number (MPN)

WDE002394

EAN / GTIN

3606480207082

Sales unit

pcs

Nominal voltage

24 V

Mounting method

Flush-mounted

Assembly arrangement

Basic element with central cover plate

Method of operation

Push button

Colour

White

Model

Group push button

Halogen free

Yes

Connection type

Screwed terminal

Imprint

None

Surface protection

Untreated

With signal lamp

Yes

Rated current

0.4 A

Label space/information surface

No

Monitoring contact

No

Material quality

Thermoplastic

Number of poles

4

Material

Plastic

Type of fastening

Screw mounting

Number of rockers

4

With lighting

Yes

RAL-number (similar)

9003

Impact strength

IK02

With light source

Yes

Transparent

No

Surface finishing

Glossy

Suitable for degree of protection (IP)

IP20

Number of contacts as normally open contact

4

Device width

71 mm

Device height

71 mm

Device depth

39 mm

IFTTT support available

No

Min. depth of built-in installation box

35 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Contactless type

No

Anti-bacterial treatment

No

Country of origin

Finland

HS Code

8536.50

• EAN 3606480207082
• SAP 1000093958
• Code 8917222
