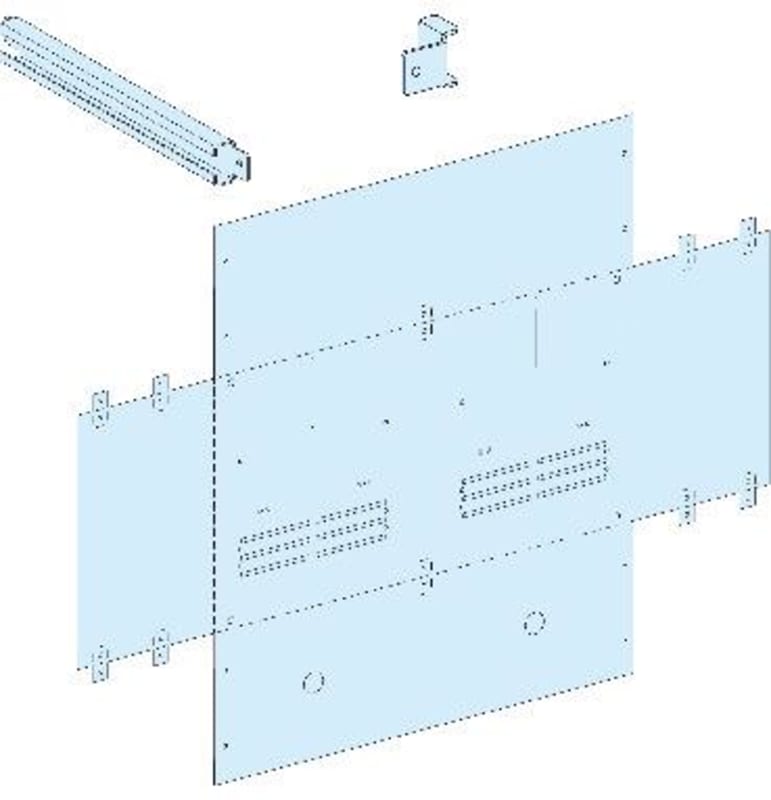

Measuring Box 6 Modules-PrismaSeT P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03508 — M.PL.FOR 2 3PH METERS 6M.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03508
- EAN / GTIN
- 3606481874719
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 400 mm
- Installed device
- Power meters: kilowatt-hour meters - vertical installation; connection
- Poles description
- 2 x 4P: kilowatt-hour meters vertical installation
- Number of vertical modules [50 mm]
- 6 module(s): kilowatt-hour meters in 650 mm Widecubicle; 6 module(s): connection in 650 mm Widecubicle
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 540 mm
- Height
- 295 mm
- Product weight
- 5.86 kg
- Functional unit
- 650 mm 400 mm PrismaSeT P cubicle connection 2 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle power meters kilowatt-hour meters vertical 4P 2 6 12.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.0 cm
- Package 1 Width
- 68.0 cm
- Package 1 Length
- 93.5 cm
- Package 1 Weight
- 5.92 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 16
- Package 2 Height
- 104.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 106.0 kg
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481874719
- SAP 1200546695
- Code 82879890
