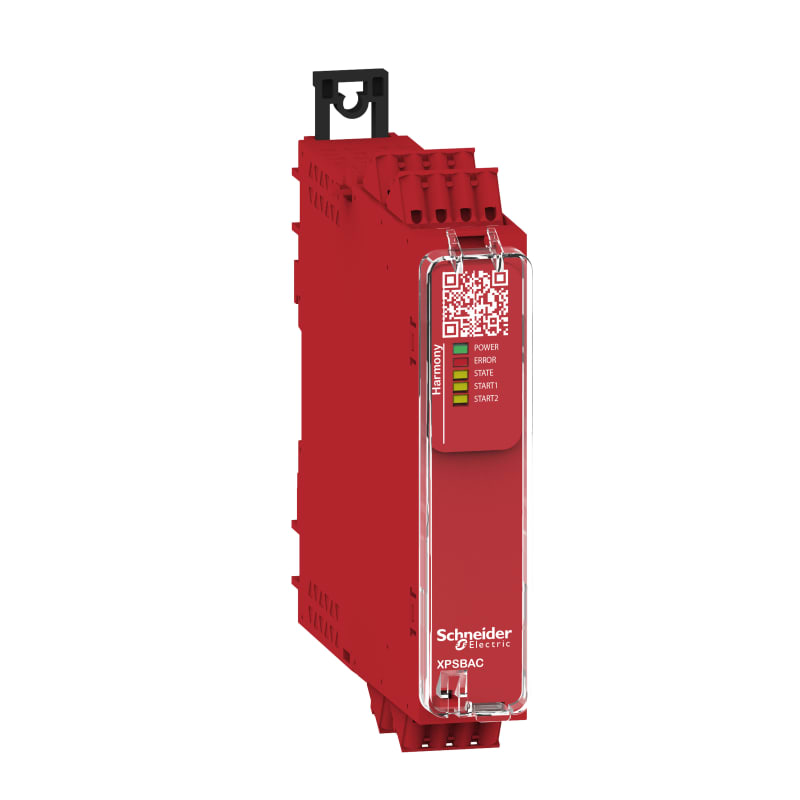

Schneider Electric Estop or guard,Harmony XPS, connected to supply terminals 48-240 V AC/DC, no inputs, spring XPSBAC34AC

Schneider Electric XPSBAC34AC safety relay for emergency stop or guard, 48-240 V, no inputs, spring terminals.

Manufacturer part number (MPN)

XPSBAC34AC EAN / GTIN: 3606482039308 Sales unit: pcs Package quantity: 16 pcs Voltage: 230 V Range of product: Harmony Safety Automation Product or component type: Safety module Safety module name: XPSBAC Safety module application: For emergency stop and protective guard applications Function of module: Emergency stop button with 2 NC contacts; Guard monitoring with 1 or 2 limit switches Safety level: Can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1; Can reach SILCL 3 for normally open relay contact conforming to IEC 62061; Can reach SIL 3 for normally open relay contact conforming to IEC 61508; Can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1; Can reach SILCL 1 for normally closed relay contact conforming to IEC 62061; Can reach SIL 1 for normally closed relay contact conforming to IEC 61508 Safety reliability data: MTTFd > 30 years conforming to ISO 13849-1 for normally open relay contact; Dcavg >= 99 % conforming to ISO 13849-1 for normally open relay contact; PFHd = 1.01E-09 conforming to ISO 13849-1 for normally open relay contact; HFT = 1 conforming to IEC 62061 for normally open relay contact; PFHd = 1.01E-09 conforming to IEC 62061 for normally open relay contact; SFF > 99% conforming to IEC 62061 for normally open relay contact; HFT = 1 conforming to IEC 61508-1 for normally open relay contact; PFHd = 1.01E-09 conforming to IEC 61508-1 for normally open relay contact; SFF > 99% conforming to IEC 61508-1 for normally open relay contact; Type = B conforming to IEC 61508-1 for normally open relay contact; MTTFd > 30 years conforming to ISO 13849-1 for normally closed relay contact; DC > 60 % conforming to ISO 13849-1 for normally closed relay contact; PFHd = 1.01E-09 conforming to ISO 13849-1 for normally closed relay contact; HFT=0 conforming to IEC 62061 for normally closed relay contact; PFHd = 1.01E-09 conforming to IEC 62061 for normally closed relay contact; SFF > 60% conforming to IEC 62061 for normally closed relay contact; HFT=0 conforming to IEC 61508-1 for normally closed relay contact; PFHd = 1.01E-09 conforming to IEC 61508-1 for normally closed relay contact; SFF > 60% conforming to IEC 61508-1 for normally closed relay contact; Type = B conforming to IEC 61508-1 for normally closed relay contact Electrical circuit type: NC pair Connections - terminals: Removable spring terminal block, 0.2...2.5 mm² solid or flexible; Removable spring terminal block, 0.25...2.5 mm² flexible with ferrule single conductor; Removable spring terminal block, 0.2...1.5 mm² solid or flexible twin conductor; Removable spring terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel; Removable spring terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel [Us] rated supply voltage: 48...240 V AC - 15...10 %; 48...240 V DC - 20...20 % Synchronisation time between inputs: Unlimited Type of start: Automatic/manual/monitored Power consumption in W: 2.0 W 48...240 V DC Power consumption in VA: 6.0 VA 48...240 V AC 50/60 Hz Input protection type: Internal, electronic safety outputs: 4 NO + 1 NC safety inputs: 0 Input compatibility: Normally closed circuit conforming to ISO 14119; XC limit switch conforming to ISO 14119; Mechanical contact conforming to ISO 14119; Normally closed circuit conforming to ISO 13850 input terminal: Power supply [Ie] rated operational current: 5 A AC-1 for normally open relay contact; 3 A AC-15 for normally open relay contact; 5 A DC-1 for normally open relay contact; 3 A DC-13 for normally open relay contact; 3 A AC-1 for normally closed relay contact; 1 A AC-15 for normally closed relay contact; 3 A DC-1 for normally closed relay contact; 1 A DC-13 for normally closed relay contact control outputs: 0 [Ith] conventional free air thermal current: 6 A Associated fuse rating: 10 A gG for NO relay output circuit conforming to IEC 60947-1 minimum output current: 10 mA for relay output minimum output voltage: 5 V for relay output Response time: 60 ms at 48...240 V AC/DC [Ui] rated insulation voltage: 300 V (pollution degree 2) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 4 kV overvoltage category II conforming to IEC 60947-1 Local signalling: LED green with power marking for power ON; LED red with error marking for error; LED yellow with state marking for status; LED yellow with start1 marking for start input; LED yellow with start2 marking for start input Mounting support: 35 mm symmetrical DIN rail Depth: 120 mm Height: 100 mm Width: 22.5 mm Product weight: 0.200 kg Ambient air temperature for operation: -25…55 °C Standards: IEC 60947-5-1; IEC 61508-1 functional safety standard; IEC 61508-2 functional safety standard; IEC 61508-3 functional safety standard; IEC 61508-4 functional safety standard; IEC 61508-5 functional safety standard; IEC 61508-6 functional safety standard; IEC 61508-7 functional safety standard; ISO 13849-1 functional safety standard; IEC 62061 functional safety standard Product certifications: TÜV; cULus IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP40 (housing) conforming to IEC 60529; IP54 (mounting area) conforming to IEC 60529 Relative humidity: 5…95 % non-condensing Number of Units in Package 1: 1 Number of Units in Package 2: 16 Country of origin: ID Warranty (in months): 18 Operating voltage DC: 24 V Power consumption: 1.1 W Supply voltage DC: 24 V Rated switch current: 1.1 A Control voltage 1: 24 V Control voltage 2: 24 V Voltage type (operating voltage): DC Type of control voltage 1: DC Type of control voltage 2: DC Model: Basic device Suitable for monitoring of position switches: Yes Suitable for monitoring of emergency-stop circuits: Yes Suitable for monitoring of valves: No Suitable for monitoring of tactile sensors: No Suitable for monitoring of magnetic switches: No Suitable for monitoring of proximity switches: No Type of electric connection: Spring clamp connection Suitable for rail mounting: Yes Voltage type for actuating: AC/DC With detachable clamps: Yes Evaluation inputs: 2-channel With start input: Yes With muting function: No With feedback circuit: Yes Number of outputs, safety related, undelayed, with contact: 5 Type of safety according to IEC 61496-1: 4 Stop category according to IEC 60204: 0 Performance level according to EN ISO 13849-1: Level e SIL according to IEC 61508: 3 With approval for BG BIA: No With approval according to UL: No

HS Code

8536.49

• EAN 3606482039308
• SAP 1200722509
• Code 83865976
