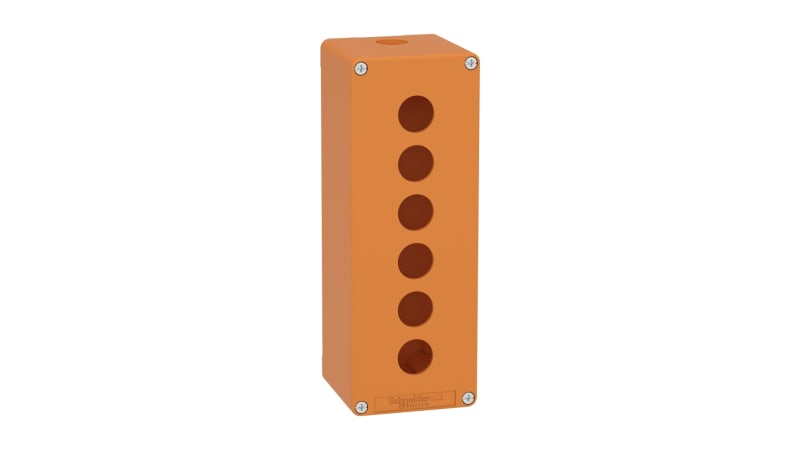

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, orange, M25, 6 cut-outs 22mm, 80 x 220 x 77 XAPO4506
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XAPO4506 Push-Button Station empty in orange metal with 6 x Ø22 mm holes and 1 x M25 cable gland 220 x 80 x 77 mm.
Technical Specifications
- Manufacturer part number (MPN)
- XAPO4506
- EAN / GTIN
- 3389119013543
- Sales unit
- pcs
- Diameter
- 22 mm
- Range of product
- Harmony XAP
- Product or component type
- Die-cast empty control station
- Device short name
- XAPO
- Product destination
- For Ø 22 mm control and signalling units
- Product front plate size
- 80 x 220 mm
- Usable depth
- 74.5 mm
- Number of cut-out
- 6 cut-outs
- Colour of base of enclosure
- Orange (RAL 2008)
- Colour of cover
- Orange (RAL 2008)
- Material
- Die cast zinc
- Sale per indivisible quantity
- 1
- IP degree of protection
- IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
- Number of vertical rows
- 1
- Number of horizontal rows
- 6
- Cut-out dimensions
- Ø 22 mm
- Control station type
- Metal
- Cable entry
- 1 x cable gland conforming to ISO
- Thread type
- M25 x 1.5
- CAD overall width
- 80 mm
- CAD overall height
- 220 mm
- CAD overall depth
- 77 mm
- Product weight
- 1.38 kg
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class I conforming to IEC 61140
- IK degree of protection
- IK07 conforming to IEC 62262
- Resistance to chemical agents
- Special treatment can be obtained on request
- Product certifications
- EAC
- Number of Units in Package 1
- 1
- Country of origin
- MA
- Warranty (in months)
- 18
- Width
- 80 mm
- Height
- 220 mm
- Depth
- 77 mm
- Diameter openings
- 22.5 mm
- Number of command positions
- 6
- Housing material
- Zinc
- Construction type housing
- Surface mounted housing
- Degree of protection (IP)
- IP65/IP67
Standards & Compliance
- HS Code
- 7325.10
Cross References
- EAN 3389119013543
- SAP 1200589406
- Code 82960716
