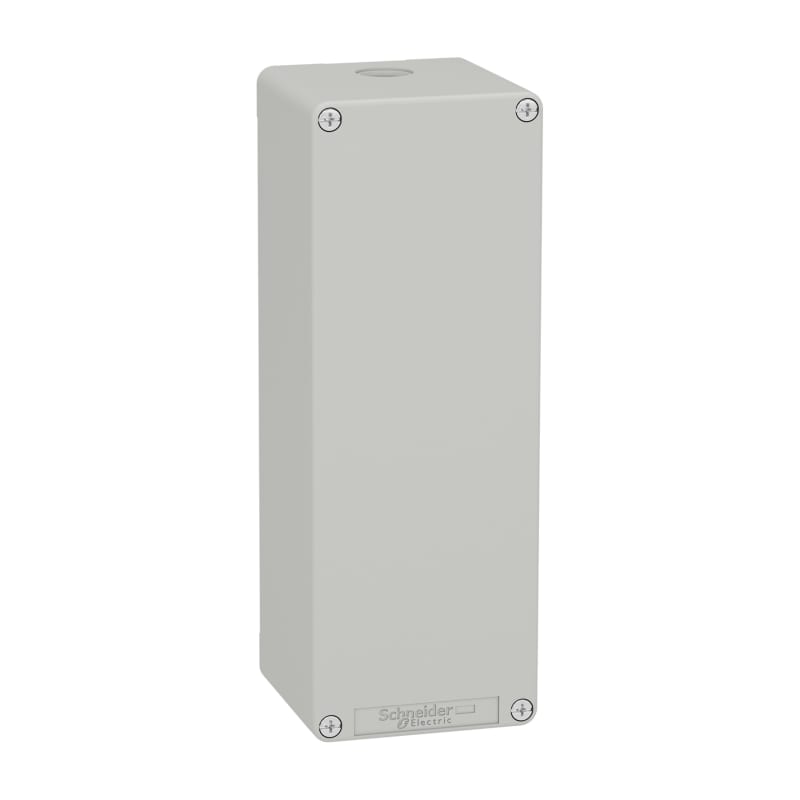

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M25, undrilled, 80 x 220 x 77 XAPD44

Schneider Electric XAPD44 Push-Button Station empty in light grey metal without holes and 1 x M25 cable gland 220 x 80 x 77 mm.

Manufacturer part number (MPN)

XAPD44

EAN / GTIN

3389118324893

Sales unit

pcs

Package quantity

7 pcs

Range of product

Harmony XAP

Product or component type

Die-cast empty control station

Device short name

XAPD

Product destination

For Ø 22 mm control and signalling units

Product front plate size

80 x 220 mm

Usable depth

74.5 mm

Number of cut-out

Without cut-out

Colour of base of enclosure

Grey (RAL 7035)

Colour of cover

Grey (RAL 7035)

Material

Die cast zinc

Sale per indivisible quantity

1

IP degree of protection

IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Number of vertical rows

0

Number of horizontal rows

0

Control station type

Metal

Cable entry

1 x cable gland conforming to ISO

Thread type

M25 x 1.5

CAD overall width

80 mm

CAD overall height

220 mm

CAD overall depth

77 mm

Product weight

1.38 kg

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 61140

IK degree of protection

IK07 conforming to IEC 62262

Resistance to chemical agents

Special treatment can be obtained on request

Product certifications

EAC

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.900 cm

Package 1 Width

13.300 cm

Package 1 Length

23.000 cm

Package 1 Weight

1.601 kg

Unit Type of Package 2

S03

Number of Units in Package 2

7

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

11.597 kg

Unit Type of Package 3

P06

Number of Units in Package 3

56

Package 3 Height

75.000 cm

Package 3 Width

80.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

100.776 kg

Country of origin

MA

Warranty (in months)

18

Width

80 mm

Height

220 mm

Depth

77 mm

Colour housing cover

Grey

Housing material

Zinc

Construction type housing

Surface mounted housing

HS Code

7907.00

• EAN 3389118324893
• SAP 1200565702
• Code 82952781
