Prefab.Connection INS1600/LGY 3P vertical P
Pricing
Request a quote
We reply within 24 hours
Product Description

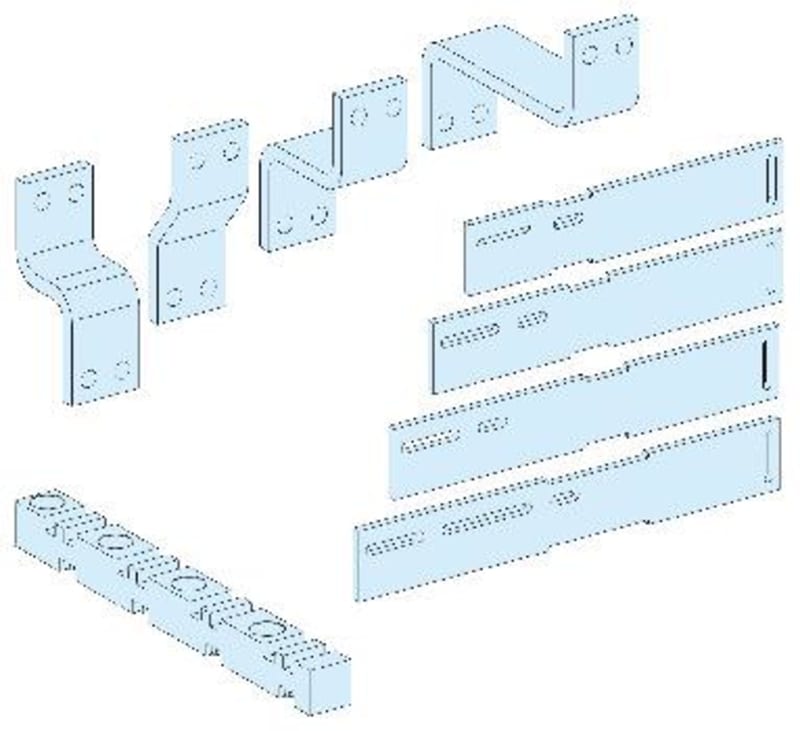

Schneider Electric LVS04481 Prefabricated connection for fast-vertical mounted INS1600A-for Linergy LGY 3P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04481
- EAN / GTIN
- 3606481867773
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: fixed INS630b...1600 - control: direct front rotary handle vertical installation; ComPact: fixed INV630b...1600 - control: direct front rotary handle vertical installation
- [Ie] rated operational current
- 1600 A
- Busbar cross section
- 80 x 10 mm
- Product weight
- 14.32 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14; 650 mm 400 mm PrismaSeT P cubicle ComPact INV630b...1600 fixed direct front rotary handle vertical 3P 1 front connection on adaptor 14
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.000 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 58.000 cm
- Package 1 Weight
- 14.547 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 28
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 421.316 kg
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 1600 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867773
- SAP 1200547132
- Code 82879976
Product Documentation
