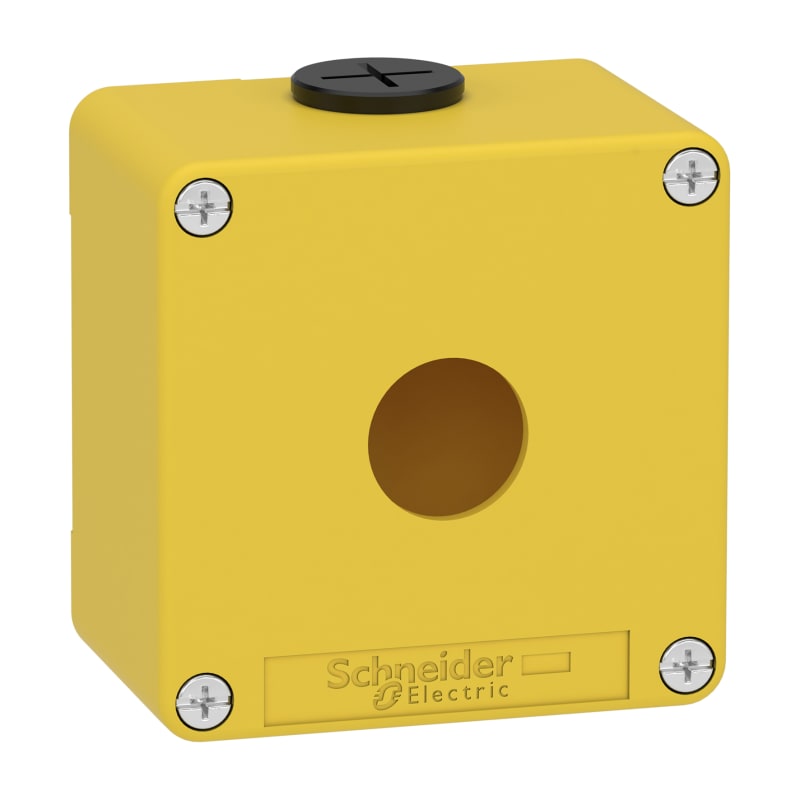

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, yellow, M20, 1 cut-out 22mm, 80 x 80 x 51,5, UL cULus XAPK1201

Schneider Electric XAPK1201 Emergency stop box empty in yellow metal with 1 x Ø22 mm hole and 2 x M20 cable glands 80 x 80 x 51,5 mm.

Manufacturer part number (MPN)

XAPK1201

EAN / GTIN

3389118039612

Sales unit

pcs

Package quantity

12 pcs

Diameter

22 mm

Range of product

Harmony XAP

Product or component type

Die-cast empty control station

Device short name

XAPK

Product destination

For Ø 22 mm control and signalling units

Product front plate size

80 x 80 mm

Usable depth

49 mm

Number of cut-out

1 cut-out

Colour of base of enclosure

Yellow (RAL 1004)

Colour of cover

Yellow (RAL 1004)

Material

Die cast zinc

Sale per indivisible quantity

1

IP degree of protection

IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Number of vertical rows

1

Number of horizontal rows

1

Cut-out dimensions

Ø 22 mm

Control station type

Metal

Cable entry

2 x cable gland conforming to ISO

Thread type

M20 x 1.5

CAD overall width

80 mm

CAD overall height

80 mm

CAD overall depth

51.5 mm

Product weight

0.455 kg

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 61140

Degree of protection

UL type 4 conforming to UL 50 E; UL type 4X conforming to UL 50 E

IK degree of protection

IK07 conforming to IEC 62262

Resistance to chemical agents

Special treatment can be obtained on request

Product certifications

UL; cULus; EAC

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

192

Country of origin

MA

Warranty (in months)

18

Width

80 mm

Height

80 mm

Depth

51.5 mm

Diameter openings

22.5 mm

Number of command positions

1

Colour housing cover

Yellow

Housing material

Zinc

Construction type housing

Surface mounted housing

HS Code

7325.10

• EAN 3389118039612
• SAP 1200565676
• Code 82952790
