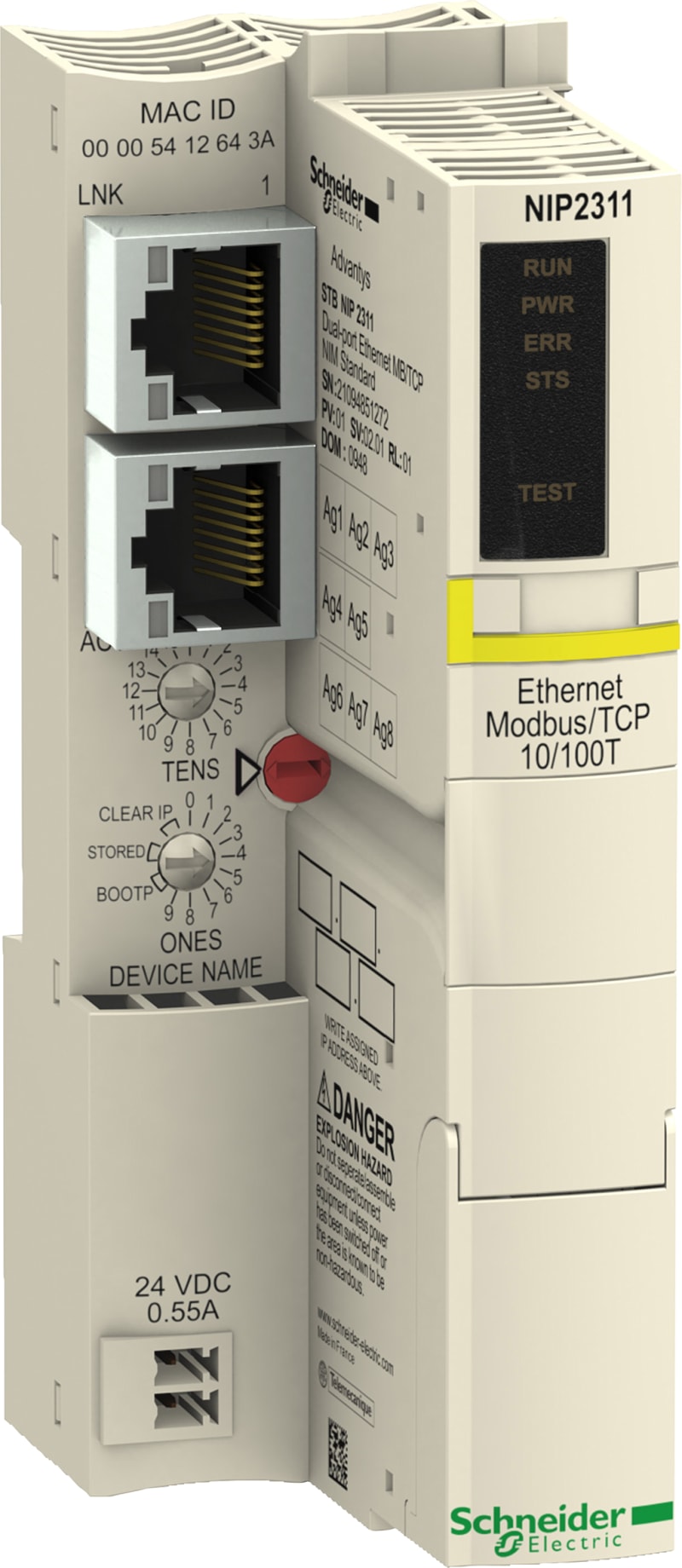

Schneider Electric STBNIP2311 standard Network Interface Module STB - Ethernet modbus TCP/IP - 10...100 Mbits

Schneider Electric STBNIP2311 standard Network Interface Module STB - Ethernet modbus TCP/IP - 10...100 Mbits is listed under Control & Automation / Fieldbus I/O. HS code: 8536.90; Sales unit: pcs; Range of product: Modicon STB distributed I/O solution; Product or component type: Standard Network Interface Module; Structure type: Industrial LAN; Input current: 550 mA for supply circuit.

Manufacturer part number (MPN)

STBNIP2311

EAN / GTIN

3595864062273

HS code

8536.90

Sales unit

pcs

Range of product

Modicon STB distributed I/O solution

Product or component type

Standard Network Interface Module

Integrated connection type

Ethernet Modbus TCP/IP conforming to IEEE 802.3 2 female RJ45 double shielded twisted pair via Ethernet (network); Ethernet Modbus TCP/IP conforming to IEEE 802.3 HE-13 (RS232 port); Ethernet Modbus TCP/IP conforming to IEEE 802.3 8-way female (RS232 port)

Number of segments

1 primary, maximum 6 extensions

Structure type

Industrial LAN

Number of addressable I/O module

0…32 per island

Input current

550 mA for supply circuit

Nominal output current

0.575 A at 60…70 °C; 1.2 A

Output voltage

5.25 V DC (tolerance: +/- 0.21 %) for logic bus

Exchange mode

Half or full duplex

Transmission rate

10/100 Mbit/s

Communication service

SNMP agent; BootP/DHCP protocol; Modbus TCP/IP messaging; Embedded web (configuration,diagnostics and access to variable)

Power supply type

SELV

Local signalling

1 LED for ACT; 1 LED for island state (RUN); 1 LED for module error (ERR); 1 LED for MS; 1 LED for NS; 1 LED for power supply (PWR); 1 LED for test mode (TEST)

Height

40.5 mm

Width

130 mm

Depth

70 mm

Product weight

0.145 kg

IP degree of protection

IP20

Marking

CE

Product certifications

UL; ODVA; C-Tick; ATEX Cat 3G; CSA

Ambient air temperature for operation

0…60 °C without derating; -25…70 °C with derating factor

Ambient air temperature for storage

-40…85 °C

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Vibration resistance

3 gn (f = 58…150 Hz) on 35 mm DIN rail; 5 gn (f = 58…150 Hz) on 35 mm DIN rail; +/-0.35 mm (f = 10…58 Hz)

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.300 cm

Package 1 Width

7.300 cm

Package 1 Length

13.000 cm

Package 1 Weight

171.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

30

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.450 kg

Country of origin

FR

Warranty (in months)

18

HS Code

8536.90

• EAN 3595864062273
• SAP 1000473525
• Code 8583365
